Name: PIM90.245-L1
Brand: Puls

FPT500.245-034-105

PULS FPT500.245-034-105 is a power supply unit from the FPT500 eFused 3AC series, designed with a field AC/DC power supply unit (PSU) / converter function. It features an aluminium housing and measures W182mm x H183mm x D59mm. This unit is equipped with 4 individually protected switchable outputs and an IO-Link interface for communication. The connection types include a 4-pin M12 S-coded connector for input, a 5-pin M12 connector for the IO-Link interface, and 2 x M12 L-coded connectors for output. It offers protection functions such as output overvoltage protection, overload/short-circuit current protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The unit operates on a supply voltage of 323Vac-552Vac across a 3-phase network and has a rated power of 600W at temperatures up to +45°C, with derating up to 350W at +70°C. It supports an ambient air temperature for operation from -25°C to +70°C and offers a degree of protection of IP65/IP67. The rated current is 20.8A for all 4 outputs combined, with a maximum output of 25A at temperatures below 45°C. The efficiency rates are 0.958 and 0.956 for 3x400Vac and 3x480Vac inputs, respectively. The output voltage is adjustable between 24Vdc and 28Vdc, with a hold time of 24ms at 400/480Vac input.

Puls

FPT300.242-008-102

Verified stock: 0

PULS FPT300.242-008-102 is a power supply unit from the FPT300 Basic 3AC series designed with an IO-Link interface. This unit, encased in an aluminium housing, measures W182mm x H272mm x D70mm and utilizes a HanQ4/2 connector for input, a 5-pin M12 connector for the IO-Link interface, and a QuickON connector for output. It supports a communication protocol of IO-Link and offers protection functions including output overvoltage protection with typical 31.8Vdc and maximum 32.5Vdc, overload and short-circuit protection with a maximum continuous current of 15A, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and can handle back-feeding loads up to 35V 4J / 32V 2.8J. It operates with a rated current of 12.5A at 24Vdc and can be supplied with an AC voltage ranging from 323Vac to 552Vac across various nominal voltages, maintaining operation under single-phase loss conditions within specified limits. Mounting can be achieved via hanging and fixing through integrated keyholes or screw mounting, and it is designed to operate within an ambient air temperature range of -25 to +55 °C, with linear derating up to +70 °C. The unit boasts an IP54 degree of protection, is designed for a 3-phase network, and exhibits an efficiency of 0.952 to 0.95 depending on the input voltage. The rated power is 300W at operational temperatures up to +55°C, with short-term capabilities of 450W for 60s and 600W for 1s within the same temperature range. It features a 1s start-up delay, a rise time of 10ms to 12ms depending on load capacitance, and a hold time of 25ms at 400/480Vac input. Electrical durability is rated up to 882000 hours under certain conditions, with power dissipation/losses of 15.1W to 15.8W and an output stage capacitance of 18000 µF, alongside a ripple of 100mVpp.

Puls

FPT500.245-018-103

Verified stock: 0

PULS FPT500.245-018-103 is a power supply unit from the FPT500 eFused 3AC series, designed with a field AC/DC PSU/converter function. It features an aluminium housing and measures W182mm x H183mm x D59mm. This unit is equipped with 4 individually protected switchable outputs with an IO-Link interface, utilizing a 4-pin M12 S-coded connector for input, a 5-pin M12 connector for the IO-Link interface, and 2 x 4-pin 7/8" connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit current protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a 3-phase network with a supply voltage range of 323Vac-552Vac and features a rated power of 600W at temperatures up to +45°C, with derating up to 350W at +70°C. It offers an efficiency of up to 0.958, a rated current of 20.8A across all outputs, and is designed for hanging or screw mounting with an IP65/IP67 degree of protection. The ambient air temperature for operation ranges from -25°C to +70°C, and it has an electrical durability of up to 476,000 hours depending on conditions.

Puls

CD10.242

Verified stock: 0

PULS CD10.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes current at rates of 5.4A with a 24Vdc input for a full 24Vdc output at 10A, 7.5A with an 18Vdc input for a full 24Vdc output at 10A, and experiences peak inrush currents of 8A at 25°C ambient and 25A at 60°C ambient. It boasts an efficiency of 0.940 with a 24Vdc 10A input and 0.935 with a 24Vdc 12A input. The dimensions are W42mm x H124mm x D117mm, with a 200ms start-up delay and 150ms rise time under nominal input with a constant full current load. It includes protection functions such as output overvoltage protection, short-circuit protection, and reverse polarity protection. Power dissipation/losses are 15.4W with a 24Vdc input and 24V output load at 10A, and 7.5W at 5A. The output stage capacitance is 1650µF, with a ripple of 100mVpp. It functions as both a power supply unit and a DC/DC converter with a 20% power reserve, belonging to the CD-series. The design includes galvanic isolation and a 20% power reserve, with screw-clamp connections for input. It accepts a supply voltage of 36Vdc-60Vdc (48Vdc nominal), with a rated current of 12A at 24Vdc from -25 to +45°C, 10A at +45 to +60°C, and 7.5A at +70°C, including a derating of 6W from +60 to +70°C. The network type is DC, with a rated power of 240W, and an adjustable output voltage of 23-28Vdc, featuring a 250mV turn-ON overshoot and a hold time of 4ms.

Puls

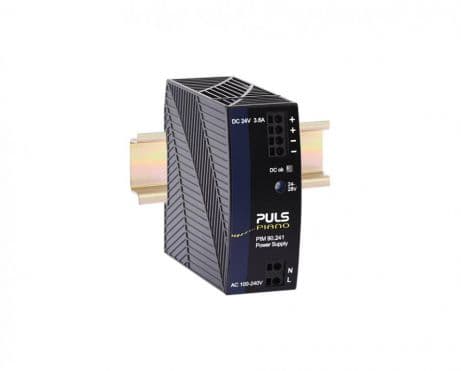

PIM90.241

Verified stock: 0

PULS PIM90.241 is a power supply unit designed for AC/DC conversion with a DIN rail mounting option. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. This unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within the -10 to +60°C range, and 2.8A at 24Vdc at +70°C. It utilizes screw-clamp connections for secure installation and supports a supply voltage range of 90Vac to 264Vac across various nominal values (100Vac to 240Vac) at 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 55Vac, and a shutdown voltage of 47Vac. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. It is designed for single-phase (1AC) networks, with a net width of 36mm. The rated power is 90W at temperatures between -10 and +60°C, and 67.2W at +70°C, with output voltage adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and overload/short-circuit protection. The unit is not suitable for series or parallel operation and can handle back-feeding loads up to 35V without malfunctioning. It achieves an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with a current consumption of 0.95A at 230Vac input at full output. The start-up delay is 50ms for 100-230Vac input, with a hold time of 119ms at 230Vac input. Power dissipation is 6W at 230Vac input with a full output load. Electrical durability is rated at up to 815000 hours at 25°C with 1.9A load and 1AC 230Vac input. The output stage capacitance is 1600µF, and the ripple is maintained at 100mVpp across a 20Hz to 20MHz range with a 50Ω load.

Puls

PIM90.245

Verified stock: 0

Banner Engineering PIM90.245 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode probe tip for individual fiber in-line sensing. This sensor is part of the Plastic fiber series and is characterized by a cylindrical (threaded) probe tip with a diameter of 1.5mm at the end and a 1mm fiber core. It is constructed with a stainless steel sensing end and a plastic fiber with a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various industrial environments. The PIM90.245 has a length of 6ft / 2m and is capable of operating in ambient air temperatures up to +70°C, making it suitable for a wide range of applications requiring precise fiber optic sensing.

Puls

FPT300.242-002-101

Verified stock: 0

PULS FPT300.242-002-101 is a power supply unit from the FPT300 Basic 3AC series, designed to function as a field AC/DC power supply unit (PSU) / converter with an IO-Link interface output on X3 pins 1&2. It features a robust aluminium housing with dimensions of W182mm x H183mm x D59mm. The unit offers a variety of connection types including a HanQ4/2 connector for input (X1), a 5-pin M12 connector for the IO-Link interface (X2), and a HanQ4/0 connector for output (X3; pin 3 = "+", pin 4 = "-"). It operates on an IO-Link communication protocol and is equipped with protection functions such as output overvoltage protection (31.8Vdc typ. / 32.5Vdc max.), overload/short-circuit current protection, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and has a back-feeding load resistance up to 35V 4J / 32V 2.8J. It has a rated current of 12.5A at 24Vdc and can accept a supply voltage (AC) ranging from 323Vac to 552Vac across various nominal voltages, with specific performance during the loss of 1-phase. Mounting can be achieved via hanging and fixing through integrated keyholes or by screw mounting. The unit operates within an ambient air temperature range of -25...+55 °C (with linear derating) to +55...+70 °C and offers a degree of protection of IP65/IP67. Designed for a 3-phase (3AC) network, it has a current consumption of 0.5A/0.42A under full output with symmetrical phases and a peak inrush of 2A. The efficiency rates are 0.952 (3x400Vac input) and 0.95 (3x480Vac input), with a rated power of 300W at operational temperatures up to +55°C, derating linearly to 150W at +70°C, and offering short-term power capabilities. The output voltage is fixed at 24Vdc with a 500mV turn-ON overshoot, and the unit provides a hold time of 25ms at 400/480Vac input. Electrical durability varies with conditions, offering up to 882000 hours of operation under certain conditions. Power dissipation/losses are noted at 15.1 W for 3x400Vac input and 15.8 W for 3x480Vac input, with an output stage capacitance of 18000 µF and a ripple of 100mVpp.

Puls

FPT300.246-042-101

Verified stock: 0

PULS FPT300.246-042-101 is a power supply unit from the FPT300 eFused NEC Class 2 3AC series, designed to convert field AC to DC power with 4 individually protected switchable NEC Class 2 outputs and an IO-Link interface. It features a robust aluminium housing with dimensions of W182mm x H272mm x D70mm. The unit connects via a HanQ5/0 female connector for input, a 5-pin M12 connector for the IO-Link interface, and 4 x M12 A-coded connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a supply voltage of 323Vac-552Vac across various nominal voltages and maintains functionality under a single-phase loss if loaded below limits. It cannot operate in series or parallel and is designed for hanging or screw mounting with an IP54 degree of protection. The ambient air temperature for operation ranges from -25 to +70°C with linear derating above +55°C. It has a rated power of 300W at temperatures up to +55°C, with short-term capabilities up to 600W, and features a 24Vdc-28Vdc adjustable output voltage. The unit's efficiency is noted at 0.952 for 3x400Vac input and 0.95 for 3x480Vac input, with a current consumption of 0.5A at full output for 3x400Vac and 0.42A for 3x480Vac, peaking at 2A inrush. Electrical durability is extensive, with hours ranging based on conditions and input, and power dissipation/losses are specified for full output load conditions.

Puls

FPT500.245-034-105

Verified stock: 0

PULS FPT500.245-034-105 is a power supply unit from the FPT500 eFused 3AC series, designed with a field AC/DC power supply unit (PSU) / converter function. It features an aluminium housing and measures W182mm x H183mm x D59mm. This unit is equipped with 4 individually protected switchable outputs and an IO-Link interface for communication. The connection types include a 4-pin M12 S-coded connector for input, a 5-pin M12 connector for the IO-Link interface, and 2 x M12 L-coded connectors for output. It offers protection functions such as output overvoltage protection, overload/short-circuit current protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The unit operates on a supply voltage of 323Vac-552Vac across a 3-phase network and has a rated power of 600W at temperatures up to +45°C, with derating up to 350W at +70°C. It supports an ambient air temperature for operation from -25°C to +70°C and offers a degree of protection of IP65/IP67. The rated current is 20.8A for all 4 outputs combined, with a maximum output of 25A at temperatures below 45°C. The efficiency rates are 0.958 and 0.956 for 3x400Vac and 3x480Vac inputs, respectively. The output voltage is adjustable between 24Vdc and 28Vdc, with a hold time of 24ms at 400/480Vac input.

Puls

FPT300.242-008-102

Verified stock: 0

PULS FPT300.242-008-102 is a power supply unit from the FPT300 Basic 3AC series designed with an IO-Link interface. This unit, encased in an aluminium housing, measures W182mm x H272mm x D70mm and utilizes a HanQ4/2 connector for input, a 5-pin M12 connector for the IO-Link interface, and a QuickON connector for output. It supports a communication protocol of IO-Link and offers protection functions including output overvoltage protection with typical 31.8Vdc and maximum 32.5Vdc, overload and short-circuit protection with a maximum continuous current of 15A, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and can handle back-feeding loads up to 35V 4J / 32V 2.8J. It operates with a rated current of 12.5A at 24Vdc and can be supplied with an AC voltage ranging from 323Vac to 552Vac across various nominal voltages, maintaining operation under single-phase loss conditions within specified limits. Mounting can be achieved via hanging and fixing through integrated keyholes or screw mounting, and it is designed to operate within an ambient air temperature range of -25 to +55 °C, with linear derating up to +70 °C. The unit boasts an IP54 degree of protection, is designed for a 3-phase network, and exhibits an efficiency of 0.952 to 0.95 depending on the input voltage. The rated power is 300W at operational temperatures up to +55°C, with short-term capabilities of 450W for 60s and 600W for 1s within the same temperature range. It features a 1s start-up delay, a rise time of 10ms to 12ms depending on load capacitance, and a hold time of 25ms at 400/480Vac input. Electrical durability is rated up to 882000 hours under certain conditions, with power dissipation/losses of 15.1W to 15.8W and an output stage capacitance of 18000 µF, alongside a ripple of 100mVpp.

Puls

FPT500.245-018-103

Verified stock: 0

PULS FPT500.245-018-103 is a power supply unit from the FPT500 eFused 3AC series, designed with a field AC/DC PSU/converter function. It features an aluminium housing and measures W182mm x H183mm x D59mm. This unit is equipped with 4 individually protected switchable outputs with an IO-Link interface, utilizing a 4-pin M12 S-coded connector for input, a 5-pin M12 connector for the IO-Link interface, and 2 x 4-pin 7/8" connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit current protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a 3-phase network with a supply voltage range of 323Vac-552Vac and features a rated power of 600W at temperatures up to +45°C, with derating up to 350W at +70°C. It offers an efficiency of up to 0.958, a rated current of 20.8A across all outputs, and is designed for hanging or screw mounting with an IP65/IP67 degree of protection. The ambient air temperature for operation ranges from -25°C to +70°C, and it has an electrical durability of up to 476,000 hours depending on conditions.

Puls

CD10.242

Verified stock: 0

PULS CD10.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes current at rates of 5.4A with a 24Vdc input for a full 24Vdc output at 10A, 7.5A with an 18Vdc input for a full 24Vdc output at 10A, and experiences peak inrush currents of 8A at 25°C ambient and 25A at 60°C ambient. It boasts an efficiency of 0.940 with a 24Vdc 10A input and 0.935 with a 24Vdc 12A input. The dimensions are W42mm x H124mm x D117mm, with a 200ms start-up delay and 150ms rise time under nominal input with a constant full current load. It includes protection functions such as output overvoltage protection, short-circuit protection, and reverse polarity protection. Power dissipation/losses are 15.4W with a 24Vdc input and 24V output load at 10A, and 7.5W at 5A. The output stage capacitance is 1650µF, with a ripple of 100mVpp. It functions as both a power supply unit and a DC/DC converter with a 20% power reserve, belonging to the CD-series. The design includes galvanic isolation and a 20% power reserve, with screw-clamp connections for input. It accepts a supply voltage of 36Vdc-60Vdc (48Vdc nominal), with a rated current of 12A at 24Vdc from -25 to +45°C, 10A at +45 to +60°C, and 7.5A at +70°C, including a derating of 6W from +60 to +70°C. The network type is DC, with a rated power of 240W, and an adjustable output voltage of 23-28Vdc, featuring a 250mV turn-ON overshoot and a hold time of 4ms.

Puls

PIM90.241

Verified stock: 0

PULS PIM90.241 is a power supply unit designed for AC/DC conversion with a DIN rail mounting option. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. This unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within the -10 to +60°C range, and 2.8A at 24Vdc at +70°C. It utilizes screw-clamp connections for secure installation and supports a supply voltage range of 90Vac to 264Vac across various nominal values (100Vac to 240Vac) at 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 55Vac, and a shutdown voltage of 47Vac. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. It is designed for single-phase (1AC) networks, with a net width of 36mm. The rated power is 90W at temperatures between -10 and +60°C, and 67.2W at +70°C, with output voltage adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and overload/short-circuit protection. The unit is not suitable for series or parallel operation and can handle back-feeding loads up to 35V without malfunctioning. It achieves an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with a current consumption of 0.95A at 230Vac input at full output. The start-up delay is 50ms for 100-230Vac input, with a hold time of 119ms at 230Vac input. Power dissipation is 6W at 230Vac input with a full output load. Electrical durability is rated at up to 815000 hours at 25°C with 1.9A load and 1AC 230Vac input. The output stage capacitance is 1600µF, and the ripple is maintained at 100mVpp across a 20Hz to 20MHz range with a 50Ω load.

Puls

PIM90.245

Verified stock: 0

Banner Engineering PIM90.245 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode probe tip for individual fiber in-line sensing. This sensor is part of the Plastic fiber series and is characterized by a cylindrical (threaded) probe tip with a diameter of 1.5mm at the end and a 1mm fiber core. It is constructed with a stainless steel sensing end and a plastic fiber with a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various industrial environments. The PIM90.245 has a length of 6ft / 2m and is capable of operating in ambient air temperatures up to +70°C, making it suitable for a wide range of applications requiring precise fiber optic sensing.

Puls

FPT300.242-002-101

Verified stock: 0

PULS FPT300.242-002-101 is a power supply unit from the FPT300 Basic 3AC series, designed to function as a field AC/DC power supply unit (PSU) / converter with an IO-Link interface output on X3 pins 1&2. It features a robust aluminium housing with dimensions of W182mm x H183mm x D59mm. The unit offers a variety of connection types including a HanQ4/2 connector for input (X1), a 5-pin M12 connector for the IO-Link interface (X2), and a HanQ4/0 connector for output (X3; pin 3 = "+", pin 4 = "-"). It operates on an IO-Link communication protocol and is equipped with protection functions such as output overvoltage protection (31.8Vdc typ. / 32.5Vdc max.), overload/short-circuit current protection, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and has a back-feeding load resistance up to 35V 4J / 32V 2.8J. It has a rated current of 12.5A at 24Vdc and can accept a supply voltage (AC) ranging from 323Vac to 552Vac across various nominal voltages, with specific performance during the loss of 1-phase. Mounting can be achieved via hanging and fixing through integrated keyholes or by screw mounting. The unit operates within an ambient air temperature range of -25...+55 °C (with linear derating) to +55...+70 °C and offers a degree of protection of IP65/IP67. Designed for a 3-phase (3AC) network, it has a current consumption of 0.5A/0.42A under full output with symmetrical phases and a peak inrush of 2A. The efficiency rates are 0.952 (3x400Vac input) and 0.95 (3x480Vac input), with a rated power of 300W at operational temperatures up to +55°C, derating linearly to 150W at +70°C, and offering short-term power capabilities. The output voltage is fixed at 24Vdc with a 500mV turn-ON overshoot, and the unit provides a hold time of 25ms at 400/480Vac input. Electrical durability varies with conditions, offering up to 882000 hours of operation under certain conditions. Power dissipation/losses are noted at 15.1 W for 3x400Vac input and 15.8 W for 3x480Vac input, with an output stage capacitance of 18000 µF and a ripple of 100mVpp.

Puls

FPT300.246-042-101

Verified stock: 0

PULS FPT300.246-042-101 is a power supply unit from the FPT300 eFused NEC Class 2 3AC series, designed to convert field AC to DC power with 4 individually protected switchable NEC Class 2 outputs and an IO-Link interface. It features a robust aluminium housing with dimensions of W182mm x H272mm x D70mm. The unit connects via a HanQ5/0 female connector for input, a 5-pin M12 connector for the IO-Link interface, and 4 x M12 A-coded connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a supply voltage of 323Vac-552Vac across various nominal voltages and maintains functionality under a single-phase loss if loaded below limits. It cannot operate in series or parallel and is designed for hanging or screw mounting with an IP54 degree of protection. The ambient air temperature for operation ranges from -25 to +70°C with linear derating above +55°C. It has a rated power of 300W at temperatures up to +55°C, with short-term capabilities up to 600W, and features a 24Vdc-28Vdc adjustable output voltage. The unit's efficiency is noted at 0.952 for 3x400Vac input and 0.95 for 3x480Vac input, with a current consumption of 0.5A at full output for 3x400Vac and 0.42A for 3x480Vac, peaking at 2A inrush. Electrical durability is extensive, with hours ranging based on conditions and input, and power dissipation/losses are specified for full output load conditions.

Puls

FPT500.245-034-105

Verified stock: 0

PULS FPT500.245-034-105 is a power supply unit from the FPT500 eFused 3AC series, designed with a field AC/DC power supply unit (PSU) / converter function. It features an aluminium housing and measures W182mm x H183mm x D59mm. This unit is equipped with 4 individually protected switchable outputs and an IO-Link interface for communication. The connection types include a 4-pin M12 S-coded connector for input, a 5-pin M12 connector for the IO-Link interface, and 2 x M12 L-coded connectors for output. It offers protection functions such as output overvoltage protection, overload/short-circuit current protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The unit operates on a supply voltage of 323Vac-552Vac across a 3-phase network and has a rated power of 600W at temperatures up to +45°C, with derating up to 350W at +70°C. It supports an ambient air temperature for operation from -25°C to +70°C and offers a degree of protection of IP65/IP67. The rated current is 20.8A for all 4 outputs combined, with a maximum output of 25A at temperatures below 45°C. The efficiency rates are 0.958 and 0.956 for 3x400Vac and 3x480Vac inputs, respectively. The output voltage is adjustable between 24Vdc and 28Vdc, with a hold time of 24ms at 400/480Vac input.

Puls

FPT300.242-008-102

Verified stock: 0

PULS FPT300.242-008-102 is a power supply unit from the FPT300 Basic 3AC series designed with an IO-Link interface. This unit, encased in an aluminium housing, measures W182mm x H272mm x D70mm and utilizes a HanQ4/2 connector for input, a 5-pin M12 connector for the IO-Link interface, and a QuickON connector for output. It supports a communication protocol of IO-Link and offers protection functions including output overvoltage protection with typical 31.8Vdc and maximum 32.5Vdc, overload and short-circuit protection with a maximum continuous current of 15A, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and can handle back-feeding loads up to 35V 4J / 32V 2.8J. It operates with a rated current of 12.5A at 24Vdc and can be supplied with an AC voltage ranging from 323Vac to 552Vac across various nominal voltages, maintaining operation under single-phase loss conditions within specified limits. Mounting can be achieved via hanging and fixing through integrated keyholes or screw mounting, and it is designed to operate within an ambient air temperature range of -25 to +55 °C, with linear derating up to +70 °C. The unit boasts an IP54 degree of protection, is designed for a 3-phase network, and exhibits an efficiency of 0.952 to 0.95 depending on the input voltage. The rated power is 300W at operational temperatures up to +55°C, with short-term capabilities of 450W for 60s and 600W for 1s within the same temperature range. It features a 1s start-up delay, a rise time of 10ms to 12ms depending on load capacitance, and a hold time of 25ms at 400/480Vac input. Electrical durability is rated up to 882000 hours under certain conditions, with power dissipation/losses of 15.1W to 15.8W and an output stage capacitance of 18000 µF, alongside a ripple of 100mVpp.

Puls

FPT500.245-018-103

Verified stock: 0

PULS FPT500.245-018-103 is a power supply unit from the FPT500 eFused 3AC series, designed with a field AC/DC PSU/converter function. It features an aluminium housing and measures W182mm x H183mm x D59mm. This unit is equipped with 4 individually protected switchable outputs with an IO-Link interface, utilizing a 4-pin M12 S-coded connector for input, a 5-pin M12 connector for the IO-Link interface, and 2 x 4-pin 7/8" connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit current protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a 3-phase network with a supply voltage range of 323Vac-552Vac and features a rated power of 600W at temperatures up to +45°C, with derating up to 350W at +70°C. It offers an efficiency of up to 0.958, a rated current of 20.8A across all outputs, and is designed for hanging or screw mounting with an IP65/IP67 degree of protection. The ambient air temperature for operation ranges from -25°C to +70°C, and it has an electrical durability of up to 476,000 hours depending on conditions.

Puls

CD10.242

Verified stock: 0

PULS CD10.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes current at rates of 5.4A with a 24Vdc input for a full 24Vdc output at 10A, 7.5A with an 18Vdc input for a full 24Vdc output at 10A, and experiences peak inrush currents of 8A at 25°C ambient and 25A at 60°C ambient. It boasts an efficiency of 0.940 with a 24Vdc 10A input and 0.935 with a 24Vdc 12A input. The dimensions are W42mm x H124mm x D117mm, with a 200ms start-up delay and 150ms rise time under nominal input with a constant full current load. It includes protection functions such as output overvoltage protection, short-circuit protection, and reverse polarity protection. Power dissipation/losses are 15.4W with a 24Vdc input and 24V output load at 10A, and 7.5W at 5A. The output stage capacitance is 1650µF, with a ripple of 100mVpp. It functions as both a power supply unit and a DC/DC converter with a 20% power reserve, belonging to the CD-series. The design includes galvanic isolation and a 20% power reserve, with screw-clamp connections for input. It accepts a supply voltage of 36Vdc-60Vdc (48Vdc nominal), with a rated current of 12A at 24Vdc from -25 to +45°C, 10A at +45 to +60°C, and 7.5A at +70°C, including a derating of 6W from +60 to +70°C. The network type is DC, with a rated power of 240W, and an adjustable output voltage of 23-28Vdc, featuring a 250mV turn-ON overshoot and a hold time of 4ms.

Puls

PIM90.245-L1 Puls AC/DC Power Supplies

Part#:PIM90.245-L1

Manufacturer:Puls

Product Details

Product condition

Related documents PIM90.245-L1 Specs

Puls Disclaimer:
