PIM60.125 Puls AC/DC Power Supplies

Puls PIM60.125 PULS PIM60.125 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. This unit features a NEC Class 2 DC-OK relay contact output and provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C. It offers push-in spring connections for ease of installation. The supply voltage (AC) ranges from 90Vac to 264Vac across various nominal voltages and frequencies, with specific input overvoltage and shutdown voltage parameters. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. Designed for single-phase (1AC) networks, it has a net width of 36 mm and delivers a rated power of 60W at -10 to +60°C, which derates linearly to 45.6W at +70°C. The output voltage (DC) is adjustable between 24Vdc and 28Vdc, with specific protection functions against overvoltage and overload/short-circuit conditions. It does not support series or parallel operation and is resistant to back-feeding loads. The efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively. Current consumption varies with input voltage, and the unit exhibits specific start-up delay, rise time, and hold time characteristics. Power dissipation/losses are detailed for different input conditions, and the electrical durability is specified across various operational conditions. The ripple is noted at 100mVpp, and the output stage capacitance is 900 µF.
Puls

Part#:PIM60.125

Manufacturer:Puls

Product Lifecycle:Active

Get a quick Quote!

PULS PIM60.125 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. This unit features a NEC Class 2 DC-OK relay contact output and provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C. It offers push-in spring connections for ease of installation. The supply voltage (AC) ranges from 90Vac to 264Vac across various nominal voltages and frequencies, with specific input overvoltage and shutdown voltage parameters. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. Designed for single-phase (1AC) networks, it has a net width of 36 mm and delivers a rated power of 60W at -10 to +60°C, which derates linearly to 45.6W at +70°C. The output voltage (DC) is adjustable between 24Vdc and 28Vdc, with specific protection functions against overvoltage and overload/short-circuit conditions. It does not support series or parallel operation and is resistant to back-feeding loads. The efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively. Current consumption varies with input voltage, and the unit exhibits specific start-up delay, rise time, and hold time characteristics. Power dissipation/losses are detailed for different input conditions, and the electrical durability is specified across various operational conditions. The ripple is noted at 100mVpp, and the output stage capacitance is 900 µF.

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the PIM60.125 Puls price in the box on the right side or send a quick quote.

Product Details

  • Current Output5 A
  • Power60 W
  • Phase1 Phase
  • Current Input1 A
  • Efficiency90.7 %
  • Width36 mm
  • Height90 mm
  • Depth91 mm
  • UL File No.E198865

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents PIM60.125 Specs

PIM60.125 Datasheet

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Puls

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Puls Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Puls Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Puls, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Relevant products

PIM60.121 Part Image. Manufactured by Puls.

PIM60.121

Verified stock: 0

PULS PIM60.121 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C, and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C, utilizing screw-clamp connections. It supports a supply voltage range of 90Vac-264Vac across various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. The PIM-series part measures W36mm x H90mm x D91mm, has an IP20 protection degree, and is housed in polycarbonate. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable output voltage of 24Vdc-28Vdc. Protection functions include output overvoltage and overload/short-circuit protection, with specified current limits and conditions for back-feeding loads. The unit's efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively, with detailed current consumption, inrush peaks, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance specifications.

Puls

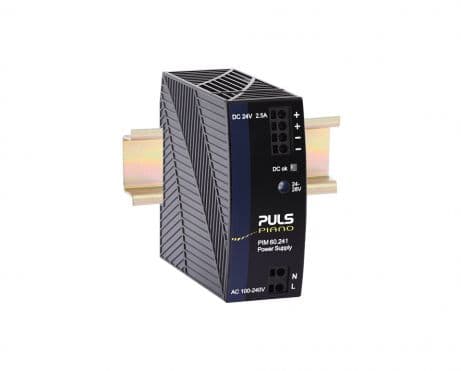

PIM60.241 Part Image. Manufactured by Puls.
