LR6-2M2PJNW-RG Patlite Signal Towers
Part#:LR6-2M2PJNW-RG
Manufacturer:Patlite
Product Lifecycle:Active
Get a quick Quote!

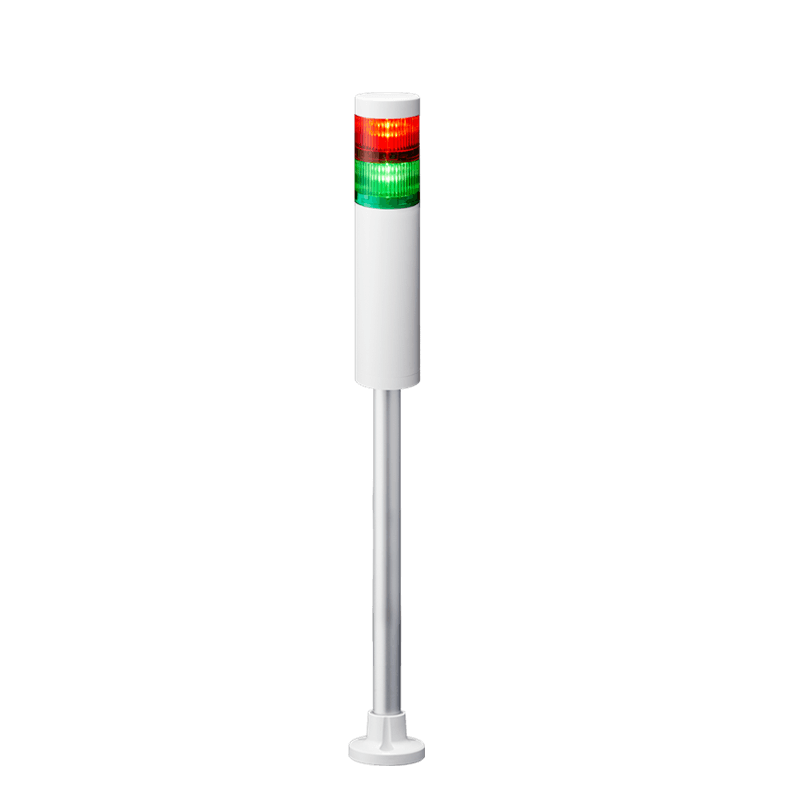

60mm, 2 tier Signal Tower, 100-240V AC, Pole Mount/Cable, No Flashing/Buzzer, Off-white
Check out the LR6-2M2PJNW-RG Patlite price in the box on the right side or send a quick quote.
Product Details
- Number of Tiers2
- Voltage100-240 VAC
- Size60 mm
- Light SourceLED
- TypeLED Signal Tower
- Weight620 g
- Country Of OriginIndonesia
- HTS Code8531809051
- Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
- Environmental Conditions Upright Position
- Storage Temperature Range -30°C - +60°C
- Insulation Resistance More than 1MΩ at 500V DC between live part and non-current carrying metallic part
- Transistor Output 100 - 240V AC is NPN only
- Conformity Standards - UL 508, CSA-C22.2 No.14 ; - FCC Part 15 Subpart B Class A; - RoHS Directive (EN 50581); - EMC Directive (EN 61000-6-4, EN 61000-6-2); - Low Voltage Directive (IEC/EN 60947-5-1, EN62471)*4
- Mounting Direction Upright Position
- Storage Humidity Range 90% RH or less, no condensation
- Withstand Voltage M2: 1500V AC applied for 1 min between live part and non-current carrying metallic part without breaking insulation
- Mounting Location Indoor Use
- Operating Humidity Range 90% RH or less, no condensation
- Operating Ambient Temperature -20°C - +50°C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LR6-2M2PJNW-RG Description
60mm, 2 tier Signal Tower, 100-240V AC, Pole Mount/Cable, No Flashing/Buzzer, Off-white
