LR4-2M2WJBW-RG Patlite Signal Towers

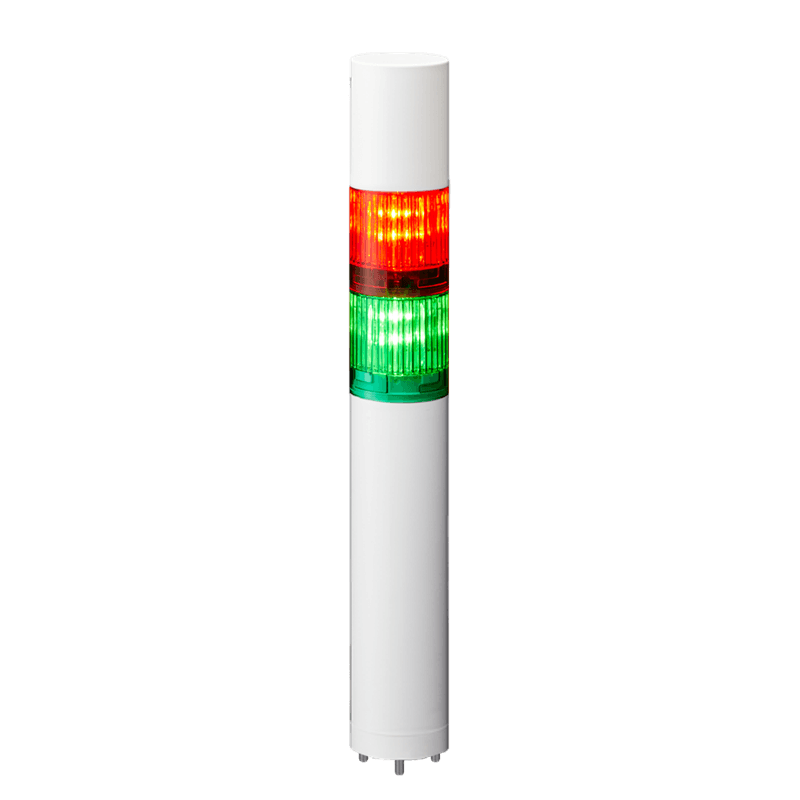

Patlite LR4-2M2WJBW-RG 40mm, 2-tier Signal Tower, 100-240V AC, Direct Mount with Cable, Flashing/Buzzer, Off-white Body, Red and Green LED Modules
Patlite

Part#:LR4-2M2WJBW-RG

Manufacturer:Patlite

Product Lifecycle:Active

Get a quick Quote!

40mm, 2-tier Signal Tower, 100-240V AC, Direct Mount with Cable, Flashing/Buzzer, Off-white Body, Red and Green LED Modules

Check out the LR4-2M2WJBW-RG Patlite price in the box on the right side or send a quick quote.

Product Details

  • Number of Tiers2
  • Voltage100-240 VAC
  • Size40 mm
  • ColorRed, Green
  • BuzzerYES
  • Light SourceLED
  • TypeLED Signal Tower
  • Weight355 g
  • Country Of OriginJapan
  • HTS Code8531809051
  • Mounting Location
    Indoor Use
  • Storage Temperature Range
    -30°C - +60°C
  • Flash Rate
    60 ±2 Flashes / min
  • Insulation Resistance
    More than 1MΩ at 500V DC between live part and non-current carrying metallic part
  • Mounting Direction
    Upright Position
  • Sound Reduction*
    ab. -10dB reduction
  • Withstand Voltage
    M2: 1500V AC applied for 1 min between live part and non-current carrying metallic part
  • Protection Rating*1
    IP65
  • Transistor Output
    NPN / PNP (AC100 - 240V is NPN only)
  • Environmental Conditions
    Upright Position
  • Buzzer Sound
    4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
  • Operating Humidity Range
    90% RH or less, no condensation
  • Storage Humidity Range
    90% RH or less, no condensation
  • Conformity Standards
    - UL 508, CSA-C22.2 No.14 ; - FCC Part 15 Subpart B Class A; - RoHS Directive (EN 50581); - EMC Directive (EN 61000-6-4, EN 61000-6-2); - Low Voltage Directive (IEC/EN 60947-5-1, EN62471)
  • Operating Ambient Temperature
    -20°C - +50°C

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

LR4-2M2WJBW-RG Description

40mm, 2-tier Signal Tower, 100-240V AC, Direct Mount with Cable, Flashing/Buzzer, Off-white Body, Red and Green LED Modules

Related documents LR4-2M2WJBW-RG Specs

LR4-2M2WJBW-RG LR_Specifications_AC_Type_(En).pdf.pdf
