85712 Murr Elektronik Power Supply Accessories
Part#:85712
Manufacturer:Murr Elektronik
Alt. Part#:85434
Product Lifecycle:Active
Get a quick Quote!

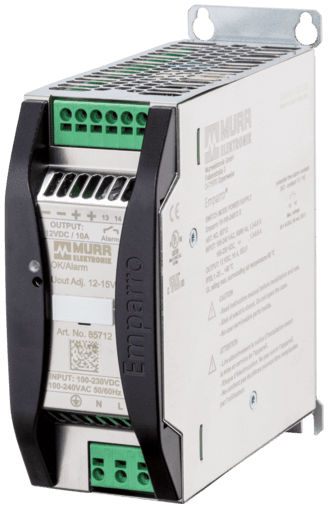

85712 Murrelektronik - Emparro 10-100-240/12 S, Screw mounting
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Power Supply Accessories that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85712 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight790 g
- SeriesTransformators/Power Supplies
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Input current 1.2 A (100 V AC); 0.6 A (230 V AC)
- Protection IP20
- Spikes max. 200 mV ss/pp
- Product article number of manufacturer 85712
- Efficiency 91.4% (110 V AC); 93.2% (230 V AC)
- Input fuse (internal) 6.3 A (T)
- Mounting method 4 hole screw mounting
- Mains failure bridging time min. 30 ms (100 V AC); 10 A (12 V DC)
- Inrush current after 1 ms max. 10 A (230 V AC)
- Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
- Unit protection short-circuit and overload protected
- Dimensions H×W×D 123×50×138 mm
- Power Boost Iout N × 150% (min. 4 s)
- Power factor 0.88 (230 V AC)
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
- Input voltage 85...265 V AC/90...250 V DC
- Output voltage 12 V DC (SELV), ±1%; 12...15 V adjustable
- Parallel usage/serial usage max. 5 units/max. 2 units
- Relative humidity 5...95%, no condensation
- Ripple max. 50 mV eff/rms
- Connection Push-In spring clamp terminals
- Output current 10 A
- Frequency 50...60 Hz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85712 Description
85712 Murrelektronik - Emparro 10-100-240/12 S, Screw mounting
Related documents 85712 Specs
