85053 Murr Elektronik AC/DC Power Supplies
Part#:85053
Manufacturer:Murr Elektronik
Alt. Part#:85440
Product Lifecycle:Active
Get a quick Quote!

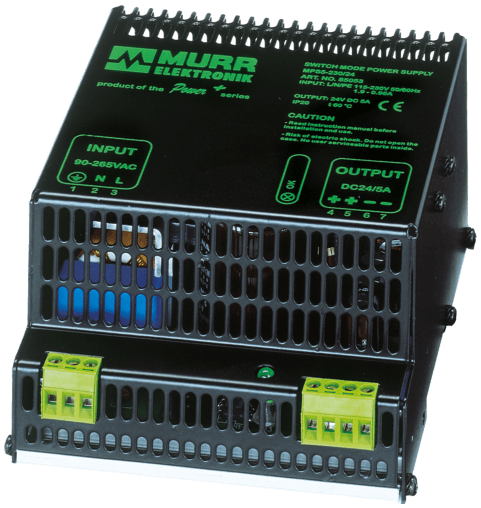

85053 Murrelektronik - MPS POWER SUPPLY 1-PHASE, IN: 90-265VAC OUT: 24V/5ADC
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85053 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight880 g
- SeriesTransformators/Power Supplies
- Output voltage 24 V DC (SELV), +3/-1%
- Inrush current after 1 ms max. 10 A
- Mounting method DIN-rail mountable TH35 (EN 60715), additional plate for screw mounting Art.-No. 89500
- Input current 1.9 A (115 V AC); 0.95 A (230 V AC)
- Efficiency 85%
- Input voltage 90...265 V AC
- LED display LED (green) at min. 22 V DC
- Mains failure bridging time min. 10 ms (115 V AC); min. 80 ms (230 V AC)
- Temperature range 0...+60 °C (storage temperature -25...+85 °C)
- Primary fusing external max. 10 A
- Product article number of manufacturer 85053
- Standards IEC 61010-2-201, EN 61204-3, EN 55022 B
- Spikes max. 100 mV ss/pp
- Relative humidity 5...95%, no condensation
- Parallel usage/serial usage no/yes
- Dimensions H×W×D 132×110×72 mm
- Ripple max. 20 mV eff/rms
- Output current 5 A (+60 °C); 6 A (+40 °C)
- Unit protection short-circuit and overload protected
- Frequency 50...60 Hz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85053 Description
85053 Murrelektronik - MPS POWER SUPPLY 1-PHASE, IN: 90-265VAC OUT: 24V/5ADC
