7999-08121-2330200 Murr Elektronik Cable Assemblies
Part#:7999-08121-2330200
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

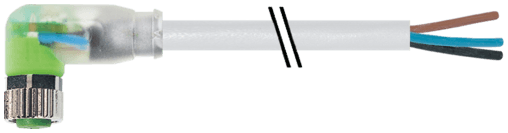

7999-08121-2330200 Murrelektronik - M8 FEMALE 90°, PUR 3X0.34 GRAY, UL/CSA, drag ch 2m
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Cable Assemblies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 7999-08121-2330200 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight66 g
- SeriesConnector Systems
- Locking of ports Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
- Resistor (core) max. 57 Ω/km (20 °C)
- Shore hardness (wire isolation) 70 ±5 D
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Acceleration (C-track) max. 10 m/s²
- Locking material Zinc die casting, nickel-plated
- Wire-Ø incl. isolation 1.25 mm ±5%
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
- Cable length 2 m
- Operating current per contact max. 4 A
- Cable weight [g/m] 29,7 g
- Shield no
- Test voltage 2500 V AC
- No. of torsion cycles max. 2 Mio. (25 °C)
- Operating voltage 24 V DC ±25%
- Diameter (core) 3× 0.34 mm²
- Color (jacket) gray
- Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
- Product article number of manufacturer 7999-08121-2330200
- Form 08121
- Construction (core) 42× 0.1 mm (multi-strand wire class 6)
- Stranding combination 3 wires twisted
- Current load capacity to DIN VDE 0298-4
- Torsion stress ±180°/m
- Cable identification 233
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- Outer-Ø (jacket) 4.1 mm ±5%
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- Protection IP66K, IP67 inserted and tightened (EN 60529)
- AWG similar to AWG 22
- Shore hardness (jacket) 90 ±5 A
- Bend radius (moving) 10× outer Ø
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- Material (wire isolation) PP
- Material (jacket) PUR
- Bend radius (fixed) 5× outer Ø
- Torsion speed 35 cycles/min
- Cable Type 3 (PUR)
- Single wire Ø (core) 0.1 mm
- thermal resistance flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Travel speed (C-track) max. 3 m/s
- Material (wire) Cu wire, bare
- Color/numbering of wires br, bk, bl
- Nominal voltage 300 V AC
- Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
7999-08121-2330200 Description
7999-08121-2330200 Murrelektronik - M8 FEMALE 90°, PUR 3X0.34 GRAY, UL/CSA, drag ch 2m
