7023-20021-6360300 Murr Elektronik Cable Assemblies
Part#:7023-20021-6360300
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

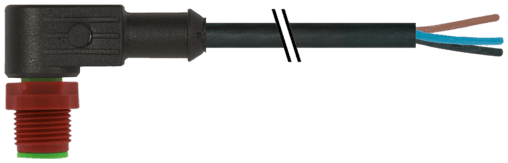

7023-20021-6360300 Murrelektronik - M12 MALE 90° C CODED 230V, PUR 3X0.75 black 3.0m
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Cable Assemblies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 7023-20021-6360300 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight169 g
- SeriesConnector Systems
- Pollution Degree 3
- Construction (core) 42× 0.15 mm (multi-strand wire class 6)
- Operating voltage max. 250 V AC/DC
- Stranding combination 3 wires twisted
- Material PUR
- Acceleration (C-track) max. 10 m/s²
- suitable for corrugated tube (internal Ø) 10 mm
- Resistor (core) max. 26 Ω/km (20 °C)
- Shore hardness (wire isolation) 70 ±5 D
- Outer-Ø (jacket) 5.9 mm ±5%
- Operating current per contact max. 4 A
- No. of torsion cycles max. 2 Mio. (25 °C)
- Locking material PA
- Material (wire isolation) PP
- Form 20021
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Bend radius (moving) 10× outer Ø
- Torsion stress ±180°/m
- Product article number of manufacturer 7023-20021-6360300
- Temperature range -25...+85 °C, depending on cable quality
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- AWG similar to AWG 18
- Material group IEC 60664-1, category I
- Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
- Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
- Torsion speed 35 cycles/min
- Travel speed (C-track) max. 3 m/s
- Cable identification 636
- Diameter (core) 3× 0.75 mm²
- Shield no
- thermal resistance flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Cable length 3 m
- Compression gland M12 (SW13)
- Rated surge voltage 2.5 kV
- Color (jacket) black
- Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
- Cable Type 3 (PUR)
- Color/numbering of wires bk numbered, gnye longitudinally striped
- Coding C-coded
- Current load capacity to DIN VDE 0298-4
- Cable weight [g/m] 56,1 g
- Wire-Ø incl. isolation 1.85 mm ±5%
- Shore hardness (jacket) 90 ±5 A
- Test voltage 2500 V AC
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- Material (wire) Cu wire, bare
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
- Bend radius (fixed) 5× outer Ø
- Protection IP66K, IP67 inserted and tightened (EN 60529)
- Single wire Ø (core) 0.15 mm
- Material (jacket) PUR
- Nominal voltage 300 V AC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
7023-20021-6360300 Description
7023-20021-6360300 Murrelektronik - M12 MALE 90° C CODED 230V, PUR 3X0.75 black 3.0m
