7000-87011-6300300 Murr Elektronik Cable Assemblies
Part#:7000-87011-6300300
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

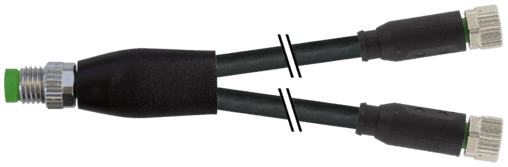

7000-87011-6300300 Murrelektronik - M8 male Y-distributor / M8 female 0°, PUR 3x0.25 bk UL/CSA+drag chain 3m
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Cable Assemblies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 7000-87011-6300300 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight141 g
- SeriesConnector Systems
- Locking of ports Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
- Material (gasket) FKM
- Shore hardness (wire isolation) 70 ±5 D
- Travel speed (C-track) max. 3 m/s
- Protection IP65, IP66K, IP67 inserted and tightened (EN 60529)
- Cable identification 630
- Wire-Ø incl. isolation 1.25 mm ±5%
- Torsion speed 35 cycles/min
- suitable for corrugated tube (internal Ø) 6.5 mm
- Diameter (core) 3× 0.25 mm²
- Nominal voltage 300 V AC
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- Torsion stress ±180°/m
- Material group IEC 60664-1, category I
- Temperature range -25...+85 °C, depending on cable quality
- Resistor (core) max. 79 Ω/km (20 °C)
- Material (jacket) PUR
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
- Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
- No. of torsion cycles max. 2 Mio. (25 °C)
- Rated surge voltage 1.5 kV
- Pollution Degree 3
- Construction (core) 32× 0.1 mm (multi-strand wire class 6)
- Shield no
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Bend radius (moving) 10× outer Ø
- Cable length 3 m
- Form 87011
- Cable Type 3 (PUR)
- Single wire Ø (core) 0.1 mm
- Stranding combination 3 wires twisted
- Outer-Ø (jacket) 4.1 mm ±5%
- thermal resistance flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Acceleration (C-track) max. 10 m/s²
- Material PUR
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- Material (wire) Cu wire, bare
- Color/numbering of wires br, bk, bl
- Color (jacket) black
- Current load capacity to DIN VDE 0298-4
- Operating voltage (only UL listed) 30 V AC/DC
- Standards DIN EN 61076-2-104 (M8)
- Material (wire isolation) PP
- Shore hardness (jacket) 90 ±5 A
- Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
- Operating current per contact max. 4 A
- Compression gland M8 (SW9)
- Cable weight [g/m] 26,4 g
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- Test voltage 2500 V AC
- Bend radius (fixed) 5× outer Ø
- Product article number of manufacturer 7000-87011-6300300
- Operating voltage max. 50 V AC/60 V DC
- Locking material Brass, nickel-plated (screw), Zinc die casting, nickel-plated (nut)
- AWG similar to AWG 24
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
7000-87011-6300300 Description
7000-87011-6300300 Murrelektronik - M8 male Y-distributor / M8 female 0°, PUR 3x0.25 bk UL/CSA+drag chain 3m
Related documents 7000-87011-6300300 Specs
