Z1000568 Mersen Fuses
Part#:Z1000568
Manufacturer:Mersen
Alt. Part#:3605340467734
Product Lifecycle:Active
Get a quick Quote!
Z1000568 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 17.5kVAC IEC 25A d56mm, L367mm With Striker Standard 80N
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the Z1000568 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating25 A
- Voltage17.5 kV AC
- Fuse ClassHigh Voltage IEC Fuses
- Terminal TypeCylindrical
- Weight4.85 lb
- Country Of OriginFR,HU
- Ampere Rating 25 A
- Indication System Yes
- Product Diameter 2.2 in
- Mounting Clip
- Indication System Type Striker
- Sell Pack Length 17.91 in
- Rated voltage AC IEC 17.5 kV
- Catalogue No. 45DB175V25P
- Sell Pack Width 2.95 in
- Power Dissipation at Rated Current Value 73 W
- Connection/Terminal Type Cylindrical
- Product Length 17.05 in
- Fuse Size d=56mm, L=367mm
- Sell Pack Weight 4.85 lb
- Min Interrupting Rating (MBC) 93 A
- Body/Insulating Material Ceramic
- Clearing I2t At Rated Voltage 6 kA²s
- Product Weight 4.85 lb
- Sell Pack Height 2.36 in
- AC Max I.R./Breaking Capacity: I1 63 kA
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Quantity 1 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Z1000568 Description

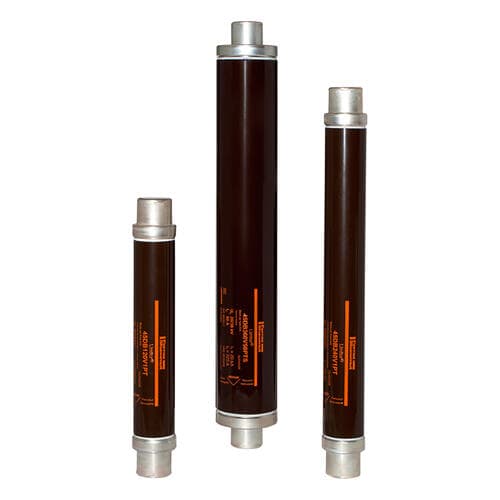

Z1000568 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 17.5kVAC IEC 25A d56mm, L367mm With Striker Standard 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*Medium striker 80N/30mm
*Indoor and outdoor applications
*Energy efficency
*New cap design for a better compatibility with all types of clips and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
HV Transformer protection
