W320363 Mersen Fuses
Part#:W320363
Manufacturer:Mersen
Alt. Part#:3605340358452
Product Lifecycle:Active
Get a quick Quote!

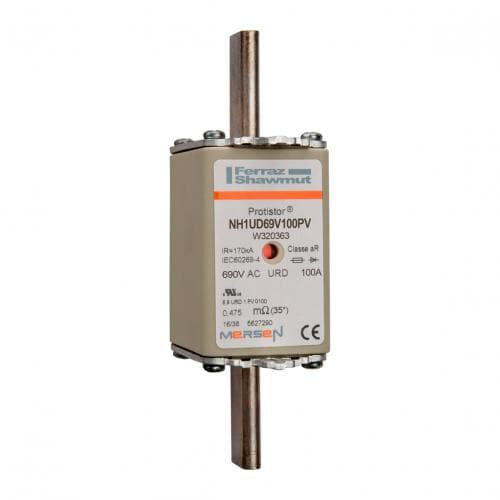

W320363 Mersen - Square Body High-Speed Fuse Protistor® NH Size 1 aR 690VAC IEC 700VAC UL 100A With Double indicator Plain Blades
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the W320363 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating100 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypePlain Blades
- UL CertificationYES
- Weight420.404 g
- Country Of OriginTN
- Melting I2t 288 A²s
- Rated voltage AC IEC 690 V
- Connection/Terminal Type Plain Blades
- Rated voltage AC UL 700 V
- Indication System Yes
- Product Width 1.57 in
- Clearing I2t At Rated Voltage 1570 A²s
- Product Weight 0.926 lb
- Sell Pack Weight 2.778 lb
- Sell Pack Length 5.51 in
- Fuse Size NH1
- AC Max I.R./Breaking Capacity: I1 170 kA
- Product Length 5.31 in
- Sell Pack Height 2.76 in
- Ampere Rating 100 A
- Body/Insulating Material Ceramic
- Sell Pack Width 4.92 in
- Mounting Clip
- Catalogue No. NH1UD69V100PV
- Power Dissipation at Rated Current Value 45.8 W
- Product Height 2.52 in
- Speed/Characteristic aR
- Indication System Type Double Indicator
- Sell Pack Quantity 3 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
W320363 Description
W320363 Mersen - Square Body High-Speed Fuse Protistor® NH Size 1 aR 690VAC IEC 700VAC UL 100A With Double indicator Plain Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes
*aR Class according to VDE 636-23 and IEC 60269-4
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
*Indication system with double indicator
