V1002128 Mersen Electronic Components
Part#:V1002128
Manufacturer:Mersen
Alt. Part#:9008567000816
Product Lifecycle:Active
Get a quick Quote!

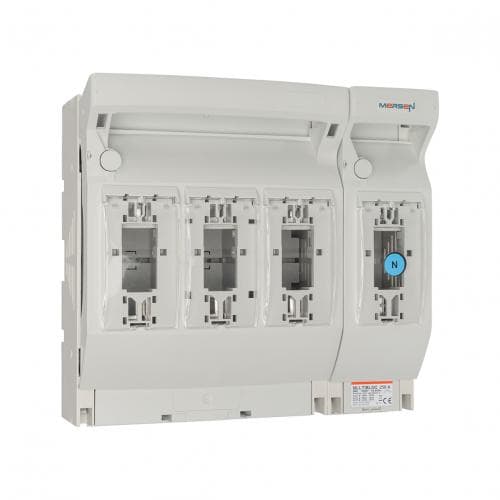

MULTIBLOC 1.ST8 size 1 / 250A, 4-pole N = solid link / pole 4, leading/lagging
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the V1002128 Mersen price in the box on the right side or send a quick quote.
Product Details
- Switchability 1-,2-,3-,4-pole switching
- Short Circuit Current Rating (SCCR) 80kA@Ue=AC 400 V;Ie=250 A / 80kA@Ue=AC 500 V;Ie=250 A / 80kA (1-,2-pole)@Ue=AC 690 V;Ie=200 A / 50kA (3-,4-pole)@Ue=AC 690 V;Ie=200 A
- Conventional Free Air thermal Current With Fuse-Links Ith 250 A
- Power Dissipation by Ith without Solid Links 33 W
- Product Length 4.35 in
- ROHS Compliant Yes
- Degree of Pollution 3
- Conventional Free Air thermal Current - Solid Links 400 A
- Product Height 9.69 in
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 250 A
- Design Details with ready fitted speacial solid link as neutral conductor in pole 4 for leading and lagging switching
- Max Power dissipation of Fuse Links Pn 23 W
- Product Width 10.08 in
- Sell Pack Width 9.84 in
- Rated voltage AC IEC 690 V
- Frequency 50...60 Hz
- Rated Insulation Voltage 1000 V
- Comments Cable termination components : 8 M10 terminal screws
- Sell Pack Length 10.24 in
- Rated SC Withstand 8 kA / 1 s
- Sell Pack Height 4.92 in
- Catalogue No. 1.002.378
- Fuse Size 1
- Rated Impulse Withstand Voltage 12 kV
- Power Dissipation by Ith without Fuse-Links 13 W
- Sell Pack Weight 7.826 lb
- Sell Pack Quantity 1 EACH
- Rated Duty uninterrupted duty
- Installation Mounting Bottom Fitting/panel
- Ampere Rating 250 A
- Number of Poles 4-Pole
- Max Power dissipation of Solid Links Pn 2.6 W
- Product Weight 7.826 lb
- Rated short circuit making capacity with solid links Icm 8.2 kA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents V1002128 Specs
