USGM1IHEL Mersen Fuse Holders
Part#:USGM1IHEL
Manufacturer:Mersen
Alt. Part#:782001437978
Product Lifecycle:Active
In-stock parts: 737
Jun 19, 2025

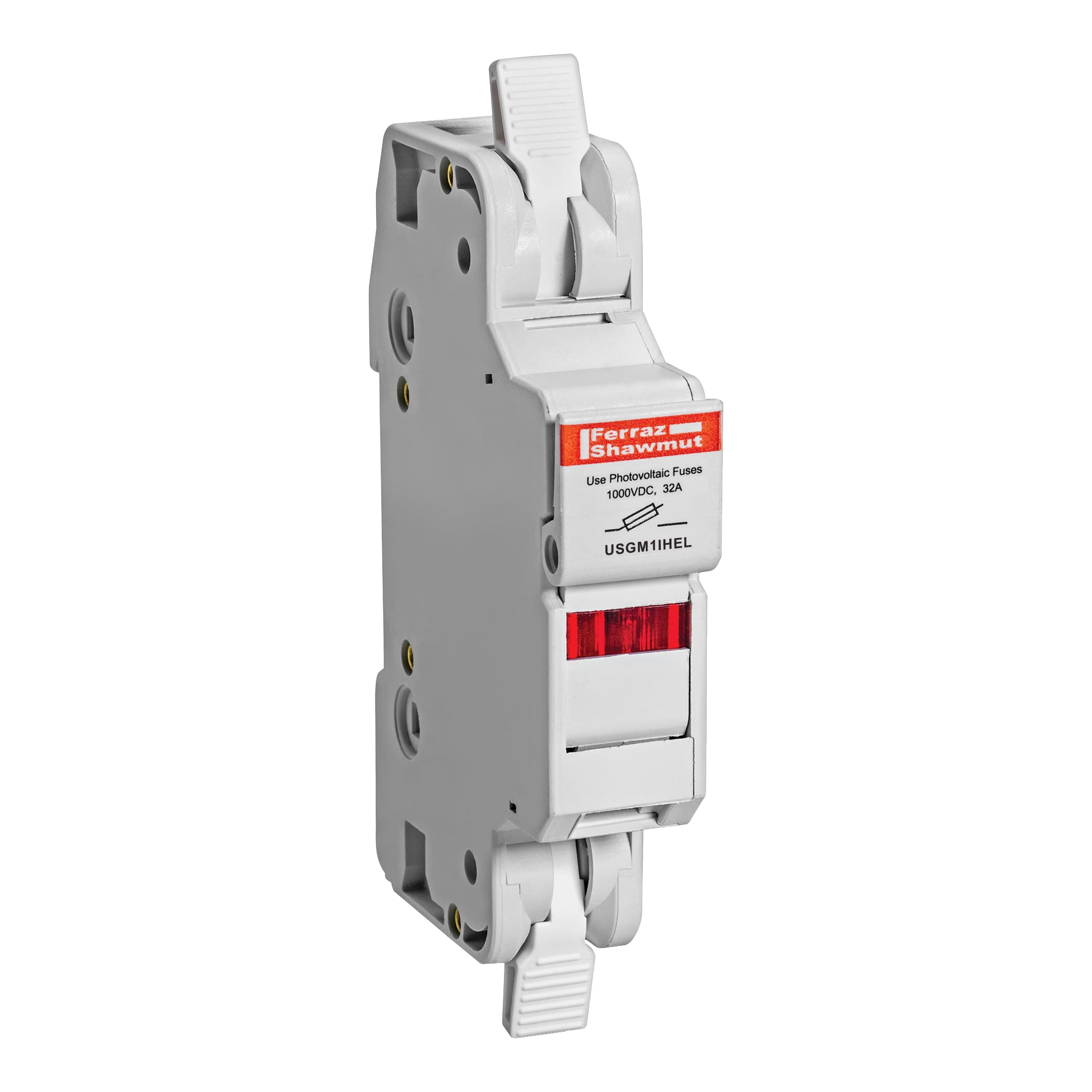

USGM1IHEL Mersen - Fuse Holder UltraSafe™ 1000VDC Midget 32A 1-Pole LED Cage Clamp IP65
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the USGM1IHEL Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles1 Pole
- Current Rating32 A
- Voltage1000 VDC
- Weight63.56 g
- Indication System Type LED
- Ampere Rating 32 A
- Product Weight 0.14 lb
- Rated voltage DC UL 1000 V
- Fuse Installation Method Clip-in
- Sell Pack Width 4.5 in
- Fuse Class Midget
- Sell Pack Length 8.75 in
- Rated voltage AC UL 0 V
- Sell Pack Quantity 12 Each
- Short Circuit Current Rating (SCCR) 200
- Body/Insulating Material Polyamide
- Product Height 2.17 in
- Max Fuse Rating 30 A
- Indication System Yes
- Product Length 4.13 in
- Fuse Type/Class Midget
- Wiring range #6 to #14 Solid or Stranded
- ROHS Compliant Yes
- Installation Mounting DIN Rail
- Sell Pack Height 2.75 in
- Number of Poles 1-pole
- Product Width 0.68 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
USGM1IHEL Description
USGM1IHEL Mersen - Fuse Holder UltraSafe™ 1000VDC Midget 32A 1-Pole LED Cage Clamp IP65 | Mersen’s USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology. | Features: • Equipped with industry proven, patented WAGO CAGE CLAMP® technology (over 25 years of field experience and acceptance)
• Reduce wire installation time by up to 75%
• Highly reliable, maintenance free wire contact
• Secure, vibration proof, corrosion resistant, temperature cycling resistant, cost saving wire connection
• Quick, tool-free, easy fuse change-outs
• IP20 finger-safe protection
• Option visual blown fuse indicator
• DIN-rail mounting
• Compact footprint
• Environmentally conscious, RoHS compliant and lead free
*USGM use with Midget Fuses: ATQ, ATM, TRM, OTM, A60Q-2, DCT-2
*USGM-HEL use with Photovoltaic Fuses: HP6M, HP10M | Application: *All circuits up to 750VAC / 1000VDC for power control, power distribution and power electronics
*Non-load disconnect
Related documents USGM1IHEL Specs
