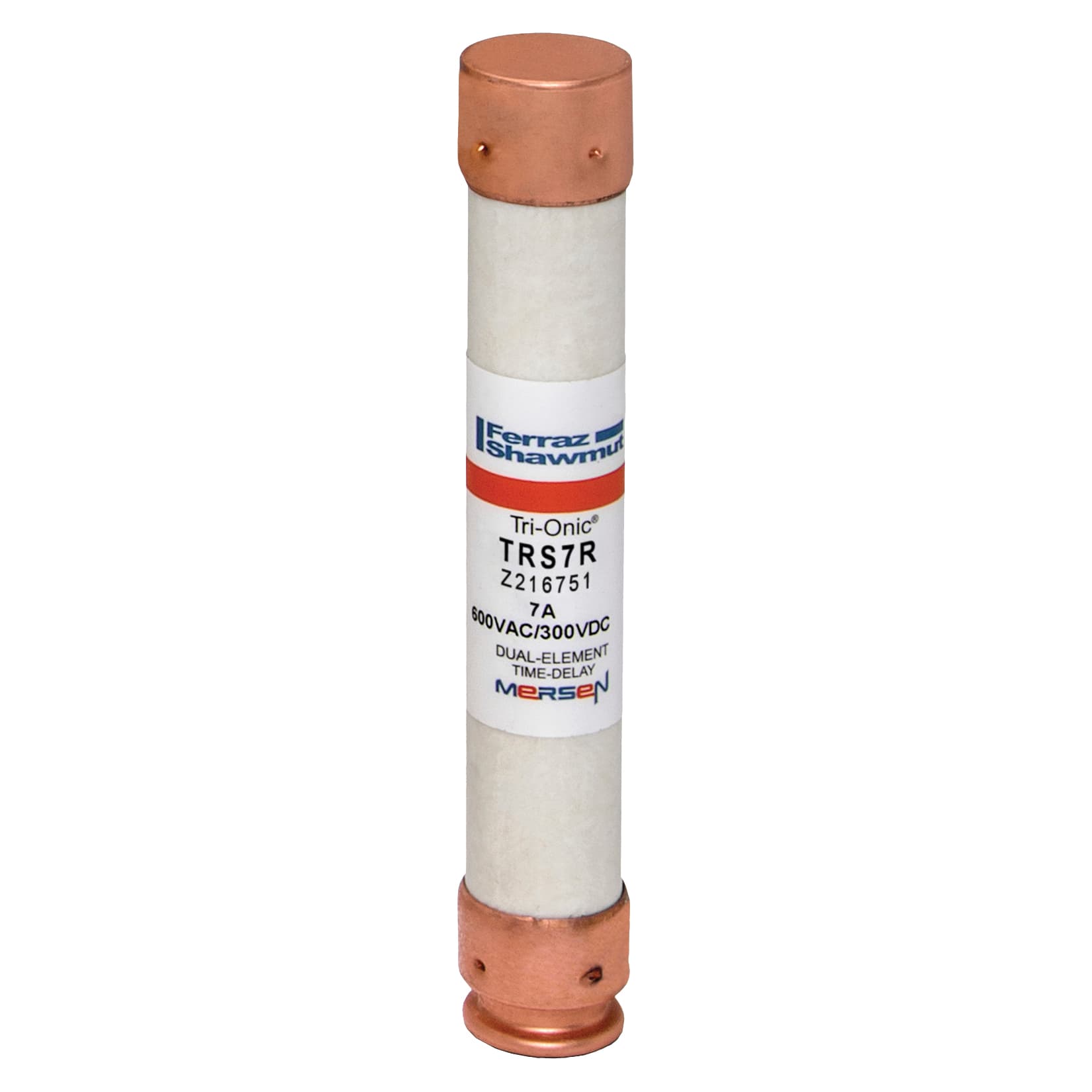

TRS7R Mersen Fuses

Mersen TRS7R TRS7R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 7A Ferrule Tri-Onic®

Part#:TRS7R

Manufacturer:Mersen

Alt. Part#:782001748777

Product Lifecycle:Active

In-stock parts: 17

Jun 19, 2025

TRS7R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 7A Ferrule Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TRS7R Mersen price in the box on the right side or send a quick quote.

Product Details

Current Rating7 A
Voltage600 VAC / 600 VDC
Trip ClassTime Delay
TypeLow Voltage UL/CSA Fuses
Fuse ClassClass RK5
Terminal TypeFerrule
UL CertificationYES
MaterialPolyTube
Weight62.1295 g
Approvals*UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
Mounting
Clip
Connection/Terminal Type
Ferrule
Sell Pack Width
4.12 in
Ampere Rating
7 A
Product Diameter
0.81 in
Sell Pack Length
5.12 in
Frequency
50/60 Hz
Body/Insulating Material
PolyTube
Sell Pack Height
1.75 in
Rated voltage DC UL
600 V

Fuse Class

Class RK5

Sell Pack Quantity

10 Each

Rated voltage AC UL

600 V

AC Max I.R./Breaking Capacity: I1

200 kA

Product Length

5 in

Connection/Terminal Material

Copper

Speed/Characteristic

Time Delay

Product Weight

0.2 lb

Sell Pack Weight

2.1 lb

Amps:

7 A

Shipping Weight:

1.40 lbs.

Series:

TRS-R

Characteristics:

Time Delay

Volts:

600 VAC/DC

Approval:

UL 248-12

Shipping Width:

5.00 In.

Diameter:

13/16 Inch

Shipping Length:

6.00 In.

Terminal Type:

Ferrule

Length:

5 Inch

UPC:

782001748777

Time Delay:

Voltage Rating

Shipping Height:

2.00 In.

Interrupting Rating:

200 Kiloamp (AC)

Type:

Class RK5

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

TRS7R Description

TRS7R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 7A Ferrule Tri-Onic®

$17.62

Stock:

Select Qty:

$17.62

$17.62 each
