TRS3R Mersen Fuses
Part#:TRS3R
Manufacturer:Mersen
Alt. Part#:782001748685
Product Lifecycle:Active
Get a quick Quote!

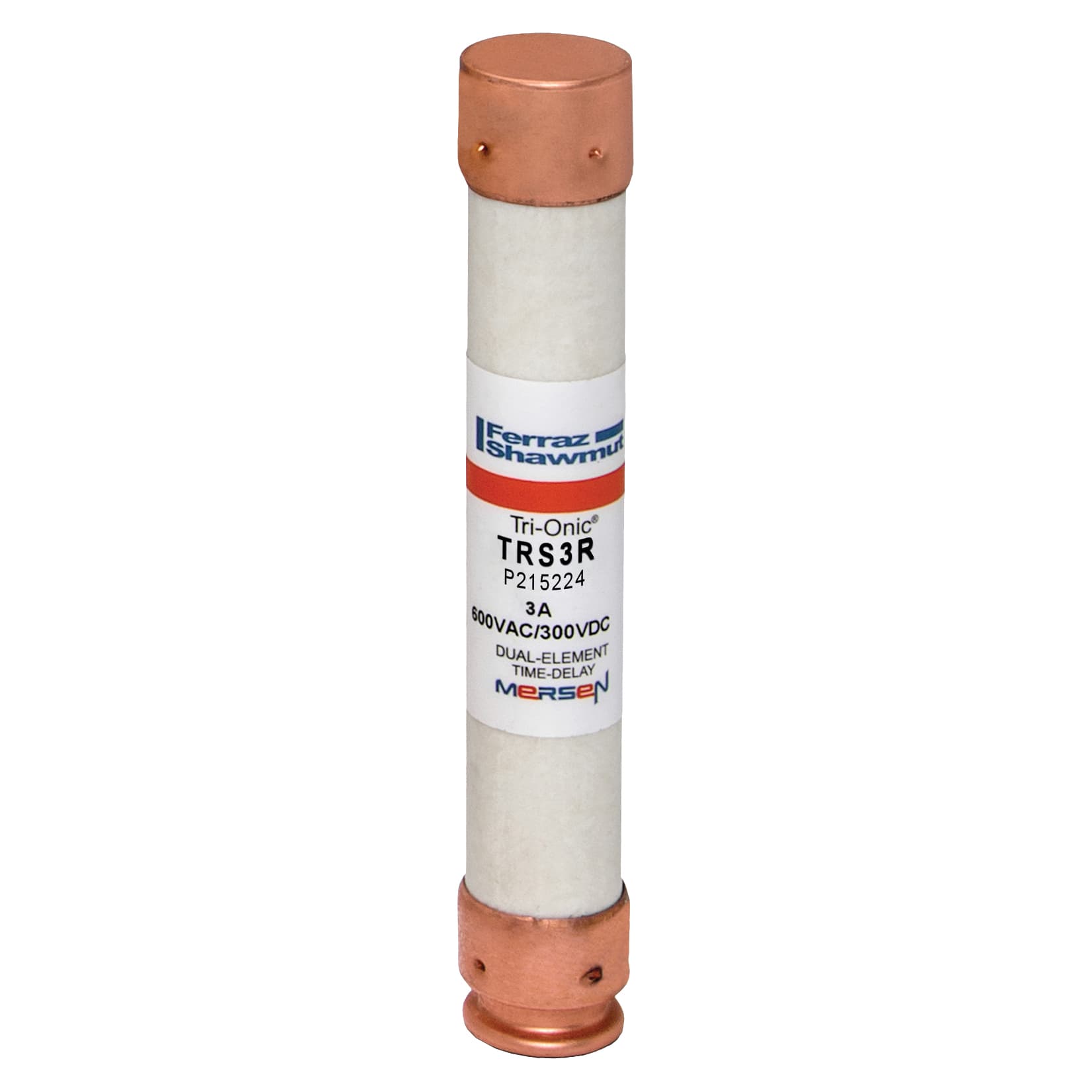

TRS3R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 3A Ferrule Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TRS3R Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating3 A
- Voltage600 VAC / 600 VDC
- Trip ClassTime Delay
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass RK5
- Terminal TypeFerrule
- UL CertificationYES
- MaterialPolyTube
- Weight62.1295 g
- Approvals*UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- Ampere Rating 3 A
- Product Length 5 in
- Frequency 50/60 Hz
- Product Diameter 0.81 in
- Rated voltage AC UL 600 V
- Sell Pack Quantity 10 Each
- AC Max I.R./Breaking Capacity: I1 200 kA
- Body/Insulating Material PolyTube
- Sell Pack Width 4.12 in
- Connection/Terminal Material Copper
- Sell Pack Length 5.12 in
- Fuse Class Class RK5
- Connection/Terminal Type Ferrule
- Sell Pack Height 1.75 in
- Rated voltage DC UL 600 V
- Mounting Clip
- Sell Pack Weight 2.1 lb
- Speed/Characteristic Time Delay
- Product Weight 0.2 lb
- Shipping Height: 3.00 In.
- Approval: UL 248-12
- Interrupting Rating: 200 Kiloamp (AC)
- Series: TRS-R
- Time Delay: Voltage Rating
- Type: Class RK5
- Diameter: 13/16 Inch
- Shipping Weight: 1.50 lbs.
- Amps: 3 A
- Shipping Width: 4.00 In.
- Length: 5 Inch
- Shipping Length: 8.00 In.
- UPC: 782001748685
- Volts: 600 VAC/DC
- Terminal Type: Ferrule
- Characteristics: Time Delay
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TRS3R Description
TRS3R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 3A Ferrule Tri-Onic®
Related documents TRS3R Specs
