TRM9 Mersen Fuses
Part#:TRM9
Manufacturer:Mersen
Alt. Part#:782001746551
Product Lifecycle:Active
In-stock parts: 100
Jun 19, 2025

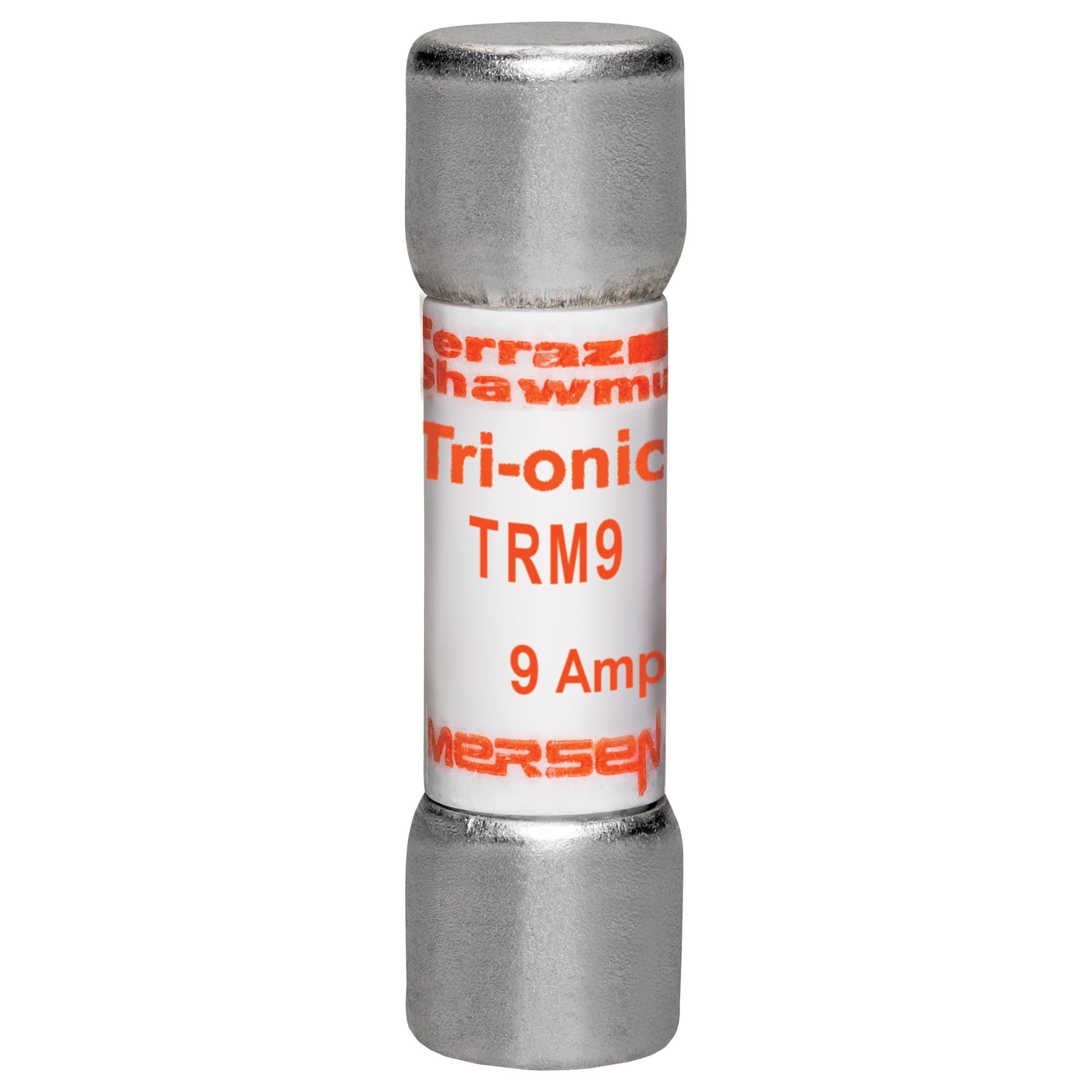

TRM9 Mersen - Fuse TRM - Midget - Time-Delay 250VAC 9A Ferrule Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TRM9 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating9 A
- Voltage250 VAC
- Trip ClassTime Delay
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassMidget
- Terminal TypeFerrule
- UL CertificationYES
- MaterialGMG
- Weight5.8955 g
- Approvals*UL listed to standard 248-14 File E33925 *CSA Certified to Standard C22.2 No. 248.14
- AC Max I.R./Breaking Capacity: I1 10 kA
- Body/Insulating Material GMG
- Speed/Characteristic Time Delay
- Sell Pack Weight 0.13 lb
- Fuse Class Midget
- Ampere Rating 9 A
- Sell Pack Length 1.62 in
- Mounting Clip
- Product Diameter 0.41 in
- ROHS Compliant Yes
- Sell Pack Width 0.88 in
- Rated voltage AC UL 250 V
- Sell Pack Quantity 10 Each
- Connection/Terminal Type Ferrule
- Product Weight 0.012 lb
- Connection/Terminal Material Tin-Plated Copper
- Product Length 1.5 in
- Sell Pack Height 2.12 in
- Series: TRM
- Interrupting Rating: 10 kA (AC)
- Shipping Height: 1.00 In.
- Shipping Length: 3.00 In.
- UPC: 782001746551
- Diameter: 0.41 Inch
- Shipping Weight: 0.15 lbs.
- Amps: 32 A
- Terminal Type: Ferrule
- Characteristics: 12 Sec Time Delay (at 200 Percent Rated Load)
- Volts: 250 VAC
- Shipping Width: 2.00 In.
- Length: 1.5 Inch
- Approval: UL 248-14
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TRM9 Description
TRM9 Mersen - Fuse TRM - Midget - Time-Delay 250VAC 9A Ferrule Tri-Onic®
