TR400RID Mersen Fuses
Part#:TR400RID
Manufacturer:Mersen
Alt. Part#:782001415440
Product Lifecycle:Active
Get a quick Quote!

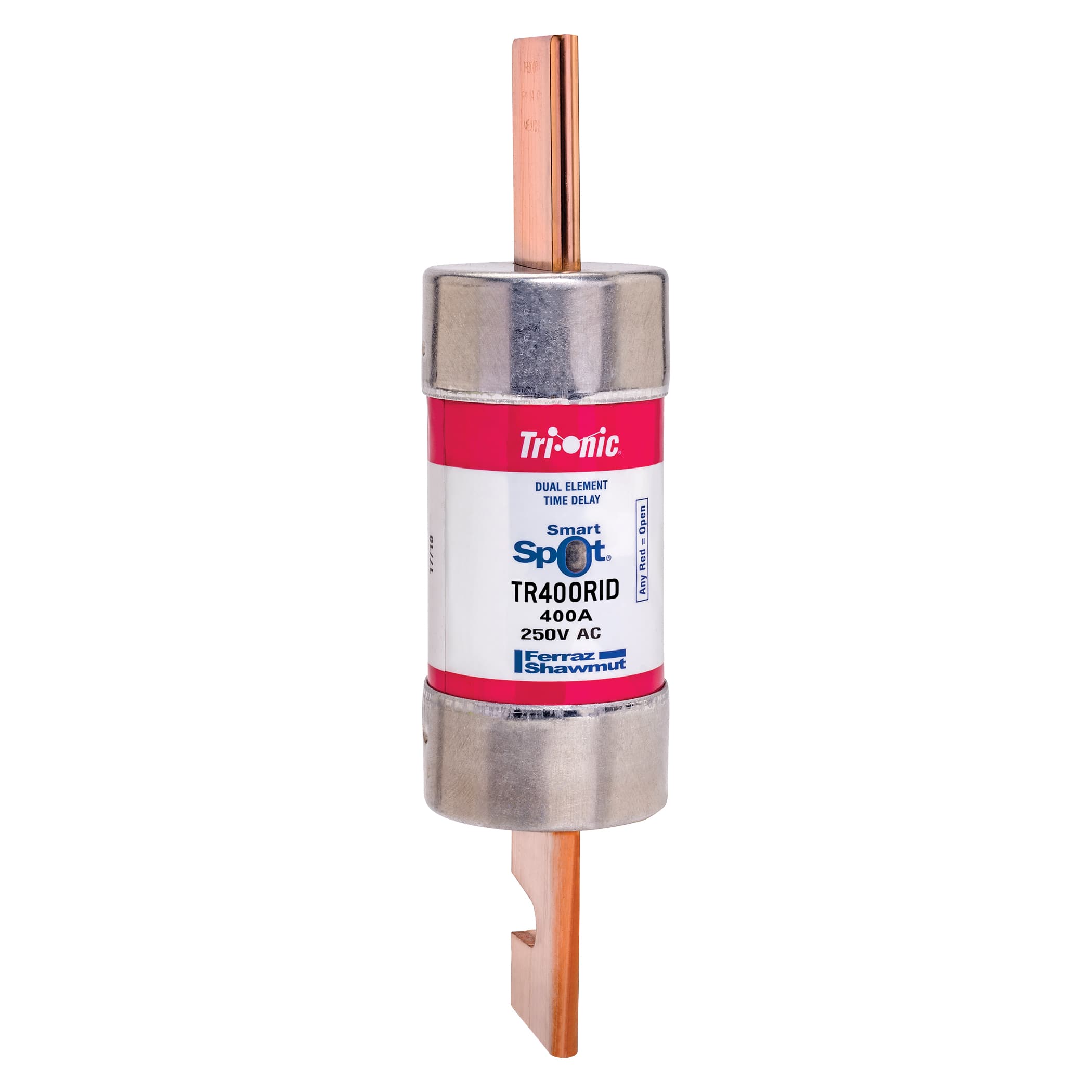

TR400RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 400A Blade SmartSpot® Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TR400RID Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating400 A
- Voltage250 VAC / 250 VDC
- Trip ClassTime Delay
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass RK5
- Terminal TypeBlade
- UL CertificationYES
- MaterialPolyTube
- Weight743.74 g
- Approvals*UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- Mounting Clip
- Indication System Yes
- ROHS Compliant Yes
- Connection/Terminal Material Tin-Plated Copper
- Product Diameter 2.06 in
- Speed/Characteristic Time Delay
- Rated voltage AC UL 250 V
- Sell Pack Weight 1.89 lb
- Rated voltage DC UL 250 V
- Product Weight 1.8 lb
- Product Length 8.63 in
- Fuse Class Class RK5
- Connection/Terminal Type Blade
- Sell Pack Quantity 1 Each
- Indication System Type SmartSpot®
- Body/Insulating Material PolyTube
- Sell Pack Width 2.12 in
- AC Max I.R./Breaking Capacity: I1 200 kA
- Frequency 50/60 Hz
- Sell Pack Length 2.12 in
- Ampere Rating 400 A
- Sell Pack Height 8.81 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TR400RID Description
TR400RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 400A Blade SmartSpot® Tri-Onic®
