T229879 Mersen Electronic Components
Part#:T229879
Manufacturer:Mersen
Alt. Part#:4027597026707
Product Lifecycle:Active
Get a quick Quote!

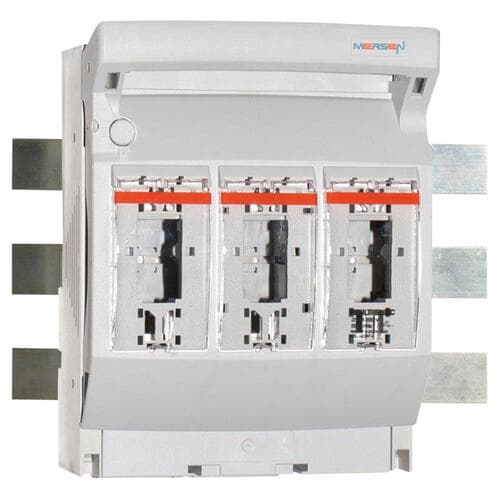

MULTIBLOC 1.RST8 size 1 / 250A, 3-pole M 10 terminal screws
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the T229879 Mersen price in the box on the right side or send a quick quote.
Product Details
- Fuse Size 1
- Rated SC Withstand 8 kA / 1 s
- Product Length 4.35 in
- Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 250 A / 80kA@Ue = AC 500 V; Ie = 250 A / 50kA (3-,4-pole)@Ue = AC 690 V; Ie = 200 A
- Rated Insulation Voltage 1000 V
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 250 A
- Ampere Rating 250 A
- Degree of Pollution 3
- Max Power dissipation of Solid Links Pn 2.6 W
- Sell Pack Weight 6.812 lb
- Frequency 50...60 Hz
- Number of Poles 3-Pole
- Max Power dissipation of Fuse Links Pn 23 W
- Product Height 9.69 in
- Sell Pack Height 6.5 in
- Rated voltage DC IEC 440 V
- Rated Duty uninterrupted duty
- Conventional Free Air thermal Current With Fuse-Links Ith 250 A
- Product Weight 6.812 lb
- Sell Pack Width 7.36 in
- Switchability Triple pole switching
- Conventional Free Air thermal Current - Solid Links 400 A
- Installation Mounting Bus bar system 40 mm and 60 mm
- ROHS Compliant Yes
- Power Dissipation by Ith without Fuse-Links 20 W
- Sell Pack Quantity 1 EACH
- Catalogue No. 1.000.323
- Rated voltage AC IEC 690 V
- Rated Impulse Withstand Voltage 12 kV
- Rated short circuit making capacity with solid links Icm 8.2 kA
- Product Width 7.28 in
- Sell Pack Length 9.76 in
- Comments Cable termination components : 3 M10 terminal screws
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents T229879 Specs
