S1062708 Mersen Fuse Holders
Part#:S1062708
Manufacturer:Mersen
Alt. Part#:3605340602715
Product Lifecycle:Active
Get a quick Quote!

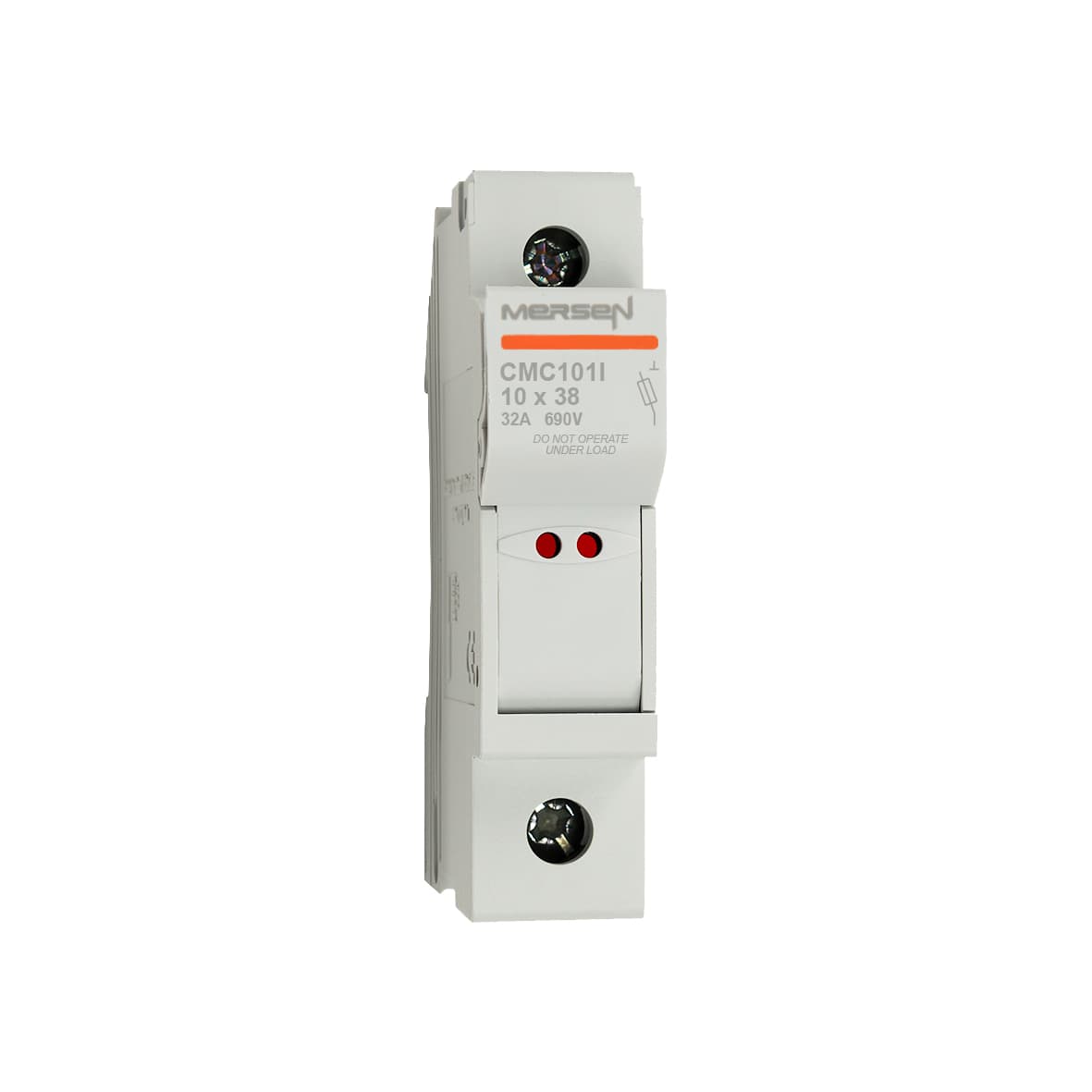

S1062708 Mersen - Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole With Visual Indicator IP20
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the S1062708 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles1 Pole
- Current Rating32 A
- Weight45.854 g
- Rated voltage AC IEC 690 V
- Rated Insulation Voltage 1000 V
- Product Height 3.12 in
- Indication System Yes
- Rated Impulse Withstand Voltage 6
- Product Width 0.69 in
- Rated voltage DC IEC 690 V
- Torque Rating 17.7 lb-in
- Product Length 2.41 in
- Short Circuit Current Rating (SCCR) 200 kA
- Conventional Free Air thermal Current With Fuse-Links Ith 32 A
- Sell Pack Quantity 12 EACH
- Design Details CMC10 single pole
- Indication System Type Visual Indicator
- Installation Mounting DIN rail acc. EN 60715
- Sell Pack Weight 1.217 lb
- Catalogue No. CMC101I
- Ampere Rating 32 A
- Comments Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
- Sell Pack Width 3.54 in
- Fuse Size 10x38
- Number of Poles 1-Pole
- Product Weight 0.101 lb
- Sell Pack Length 8.74 in
- ROHS Compliant Yes
- Max Power dissipation of Fuse Links Pn 3 W
- Sell Pack Height 2.68 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S1062708 Description
S1062708 Mersen - Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole With Visual Indicator IP20 | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Modular design
*Compact design for space saving
*DIN rail mounting
*Degree of protection: IP20
*Finger safe
*Easy access to the fuse
*Lockable without accessory
*Sealable in closed & open position
*Optional visual blown fuse indicator
*Multi-pole assembly kit available
*Plastic material UL94V2 mini
*Plastic material R22HL2 for railway application
*Flame retardant materials with glow wire flammability index to 960°C
*Schock and vibration tested for marine and railway applications | Application: *All circuits up to 690V for protection of motors, transformers,
*low voltage distribution, control circuits, drive protection, metering
*Non-load operation
