R1062684 Mersen Fuse Holders

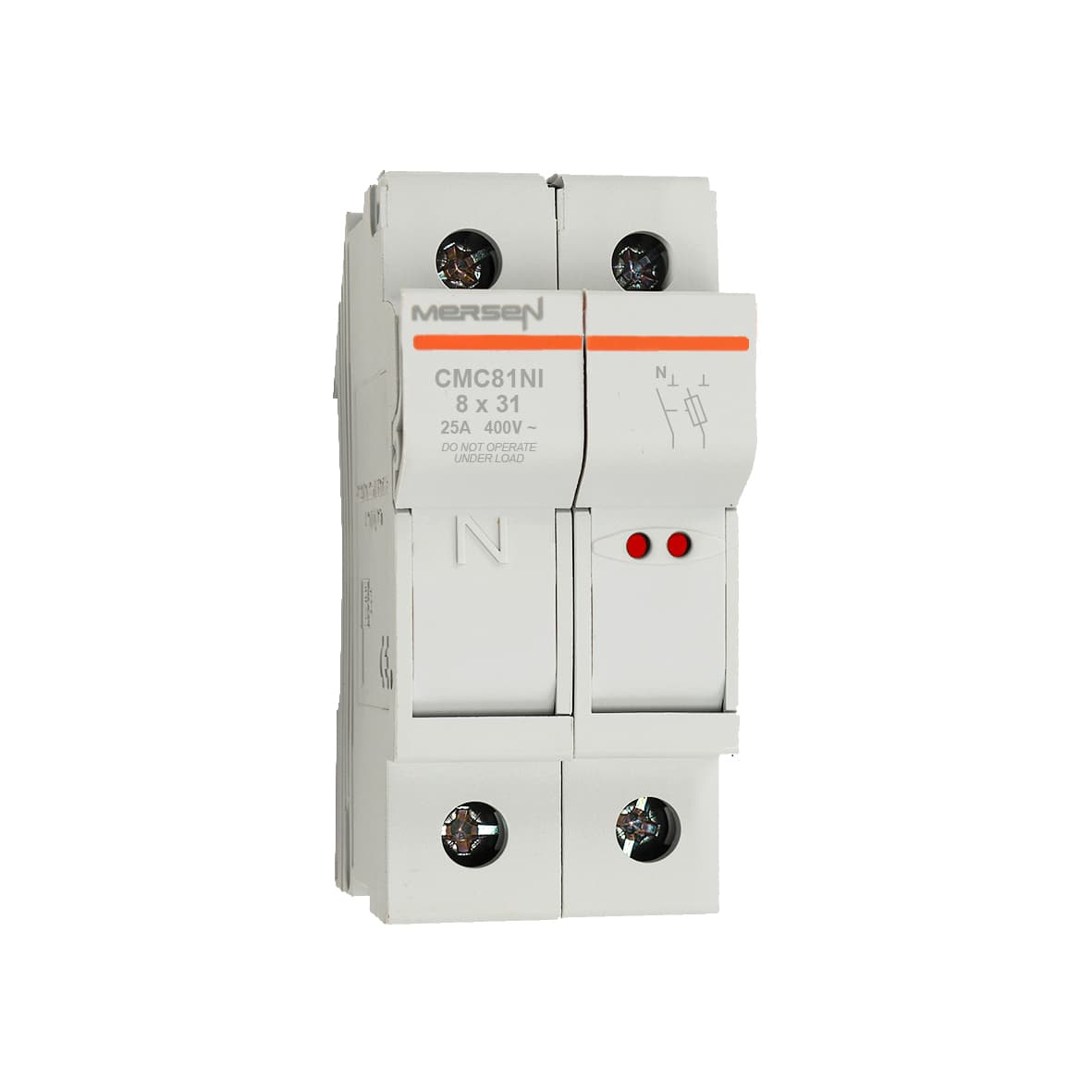

Mersen R1062684 R1062684 Mersen - Fuse Holder Modulostar® Size 8x32 IEC 400VAC 1-Pole+N With Visual Indicator IP20
Mersen

Part#:R1062684

Manufacturer:Mersen

Alt. Part#:3605340602524

Product Lifecycle:Active

Get a quick Quote!

R1062684 Mersen - Fuse Holder Modulostar® Size 8x32 IEC 400VAC 1-Pole+N With Visual Indicator IP20

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the R1062684 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Number of Poles1+N Pole
  • Current Rating25 A
  • Weight95.34 g
  • Rated Impulse Withstand Voltage
    6
  • Product Length
    2.41 in
  • Indication System Type
    Visual Indicator
  • Fuse Size
    8x32
  • Installation Mounting
    DIN rail acc. EN 60715
  • Sell Pack Width
    3.54 in
  • Torque Rating
    17.7 lb-in
  • Comments
    Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
  • Design Details
    CMC8 single pole + neutral conductor
  • Max Power dissipation of Fuse Links Pn
    2.5 W
  • Sell Pack Weight
    1.261 lb
  • Ampere Rating
    25 A
  • Rated Insulation Voltage
    690 V
  • Sell Pack Quantity
    6 EACH
  • Rated voltage AC IEC
    400 V
  • Conventional Free Air thermal Current With Fuse-Links Ith
    25 A
  • Product Height
    3.12 in
  • Number of Poles
    1-Pole+N
  • ROHS Compliant
    Yes
  • Product Width
    1.38 in
  • Sell Pack Height
    2.68 in
  • Indication System
    Yes
  • Catalogue No.
    CMC81NI
  • Product Weight
    0.21 lb
  • Sell Pack Length
    8.74 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

R1062684 Description

R1062684 Mersen - Fuse Holder Modulostar® Size 8x32 IEC 400VAC 1-Pole+N With Visual Indicator IP20 | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Modular design

*Compact design for space saving

*DIN rail mounting

*Degree of protection: IP20

*Finger safe

*Easy access to the fuse

*Lockable without accessory

*Sealable in closed and open position

*Optional visual blown fuse indicator

*Multi-pole assembly kit available

*Plastic material UL94V2 mini

*Plastic material R22HL2 for railway application

*Flame retardant materials with glow wire flammability index to 960°C

*Schock and vibration tested for marine and railway applications | Application: *All circuits up to 500VAC for protection of motors,

*transformers, low voltage distribution, control circuits, metering

*Non-load operation

Related documents R1062684 Specs

R1062684 11A89534283C4C4C9F0EC4DECFDA77B0-1en.pdf
