Q1006103 Mersen Fuses
Part#:Q1006103
Manufacturer:Mersen
Alt. Part#:3605340483833
Product Lifecycle:Active
Get a quick Quote!

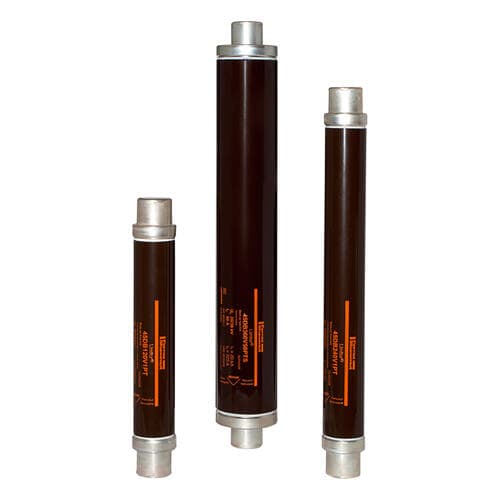

Q1006103 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 12kVAC IEC 100A d88mm, L442mm With Striker Standard 80N
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the Q1006103 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating100 A
- Voltage12 kV AC
- Fuse ClassHigh Voltage IEC Fuses
- Terminal TypeCylindrical
- Weight7.055 lb
- Country Of OriginFR,HU
- Power Dissipation at Rated Current Value 91 W
- Product Weight 7.055 lb
- Sell Pack Weight 7.055 lb
- Clearing I2t At Rated Voltage 220 kA²s
- Fuse Size d=88mm, L=442mm
- AC Max I.R./Breaking Capacity: I1 32 kA
- Catalogue No. 45DB120V100P-3
- Ampere Rating 100 A
- Mounting Clip
- Indication System Type Striker
- Connection/Terminal Material Silver-Plated Copper
- Body/Insulating Material Ceramic
- Connection/Terminal Type Cylindrical
- Rated voltage AC IEC 12 kV
- Sell Pack Width 4.33 in
- Sell Pack Quantity 1 EACH
- Product Diameter 3.46 in
- Product Length 20 in
- Sell Pack Height 3.94 in
- Sell Pack Length 22.05 in
- Min Interrupting Rating (MBC) 400 A
- Indication System Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q1006103 Description
Q1006103 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 12kVAC IEC 100A d88mm, L442mm With Striker Standard 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*Medium striker 80N/30mm
*Indoor and outdoor applications
*Energy efficency
*New cap design for a better compatibility with all types of clips and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
HV Transformer protection
Related documents Q1006103 Specs
