P1023076 Mersen Electronic Components
Part#:P1023076
Manufacturer:Mersen
Alt. Part#:4027597039622
Product Lifecycle:Active
Get a quick Quote!

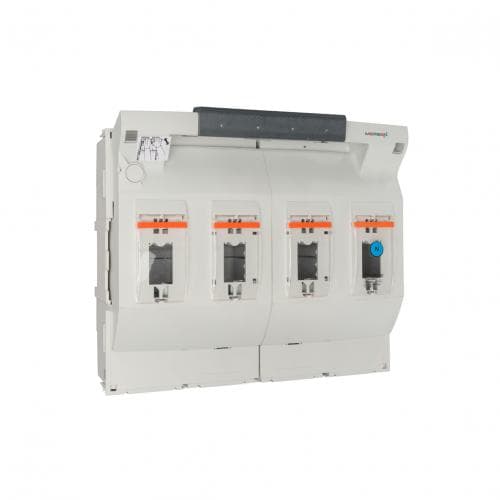

MULTIBLOC 3.ST8 size 3 / 160A, 4-pole N = solid link / pole 4, leading/lagging
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the P1023076 Mersen price in the box on the right side or send a quick quote.
Product Details
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 630 A
- Design Details with ready fitted speacial solid link as neutral conductor in pole 4 for leading and lagging switching
- Conventional Free Air thermal Current With Fuse-Links Ith 630 A
- Rated Duty uninterrupted duty
- Max Power dissipation of Solid Links Pn 17.5 W
- Product Width 13.05 in
- Sell Pack Length 13.78 in
- ROHS Compliant Yes
- Ampere Rating 630 A
- Rated SC Withstand 18 kA / 1 s
- Installation Mounting Bottom Fitting/panel
- Catalogue No. 1.002.661
- Rated Insulation Voltage 1000 V
- Power Dissipation by Ith without Solid Links 81 W
- Sell Pack Weight 16.998 lb
- Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 630 A / 80kA@Ue = AC 500 V; Ie = 630 A / 50kA@Ue = AC 690 V; Ie = 500 A
- Rated Impulse Withstand Voltage 12 kV
- Rated short circuit making capacity with solid links Icm 18.6 kA
- Rated voltage AC IEC 690 V
- Number of Poles 4-Pole
- Max Power dissipation of Fuse Links Pn 48 W
- Product Length 6.06 in
- Sell Pack Height 6.69 in
- Switchability 3-,4-pole switching
- Fuse Size 3
- Conventional Free Air thermal Current - Solid Links 780 A
- Comments Cable termination components : 8 M12 terminal screws
- Sell Pack Width 12.6 in
- Frequency 50...60 Hz
- Degree of Pollution 3
- Power Dissipation by Ith without Fuse-Links 53 W
- Product Height 11.77 in
- Sell Pack Quantity 1 EACH
- Product Weight 16.998 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
