P1000099 Mersen Fuses
Part#:P1000099
Manufacturer:Mersen
Alt. Part#:3605340452723
Product Lifecycle:Active
Get a quick Quote!

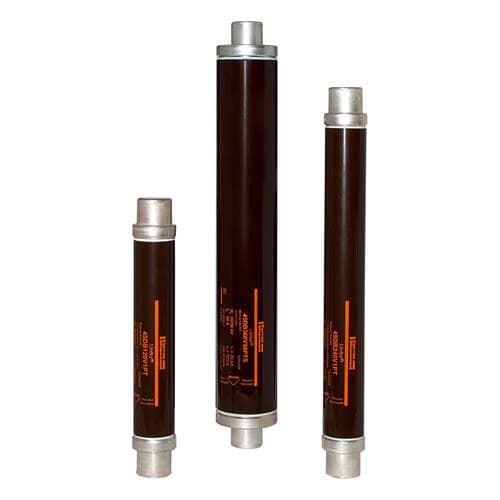

P1000099 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 7.2kVAC IEC 4A d56mm, L192mm With Striker Standard 80N
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the P1000099 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating4 A
- Voltage7.2 kV AC
- Fuse ClassHigh Voltage IEC Fuses
- Terminal TypeCylindrical
- Weight2.646 lb
- Country Of OriginFR,HU
- Fuse Size d=56mm, L=192mm
- Indication System Type Striker
- Rated voltage AC IEC 7.2 kV
- Product Length 10.16 in
- Sell Pack Width 2.76 in
- Catalogue No. 45DB72V4P
- Indication System Yes
- Sell Pack Height 2.56 in
- Clearing I2t At Rated Voltage 0.8 kA²s
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Quantity 1 EACH
- Sell Pack Length 14.57 in
- AC Max I.R./Breaking Capacity: I1 63 kA
- Connection/Terminal Type Cylindrical
- Body/Insulating Material Ceramic
- Ampere Rating 4 A
- Min Interrupting Rating (MBC) 20 A
- Sell Pack Weight 2.646 lb
- Mounting Clip
- Power Dissipation at Rated Current Value 5 W
- Product Diameter 2.2 in
- Product Weight 2.646 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
P1000099 Description
P1000099 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 7.2kVAC IEC 4A d56mm, L192mm With Striker Standard 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*Medium striker 80N/30mm
*Indoor and outdoor applications
*Energy efficency
*New cap design for a better compatibility with all types of clips and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
HV Transformer protection
