P079455 Mersen Fuses
Part#:P079455
Manufacturer:Mersen
Alt. Part#:3605340034219
Product Lifecycle:Active
Get a quick Quote!

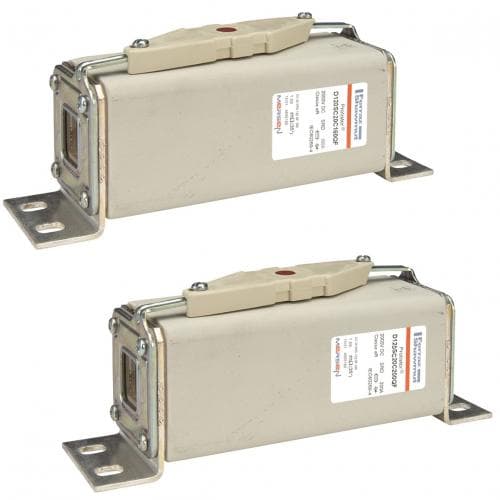

P079455 Mersen - Square Body High-Speed Fuse Protistor® Size 120 aR 2000VDC IEC 63A With Striker L Brackets
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the P079455 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating63 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeL Brackets
- Weight900.736 g
- Country Of OriginFR
- Speed/Characteristic aR
- Indication System Yes
- Product Width 1.73 in
- Clearing I2t At Rated Voltage 1600 A²s
- Connection/Terminal Type L Brackets
- Product Height 2.47 in
- Ampere Rating 63 A
- Catalogue No. D120SC20C63QF
- Product Weight 1.984 lb
- Sell Pack Height 2.76 in
- ROHS Compliant Yes
- Power Dissipation at Rated Current Value 53.5 W
- Sell Pack Weight 1.984 lb
- Mounting Bolted
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Width 4.33 in
- Fuse Size 120
- Body/Insulating Material Ceramic
- Sell Pack Quantity 1 EACH
- Max. Rated Breaking Capacity DC 100kA
- Design Details aR
- Product Length 8.54 in
- Rated voltage DC IEC 2000 V
- Indication System Type Striker
- Sell Pack Length 10.24 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
P079455 Description
P079455 Mersen - Square Body High-Speed Fuse Protistor® Size 120 aR 2000VDC IEC 63A With Striker L Brackets
Product type: Semiconductor Protection Fuses
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
To complete these fuse-links Mersen recommende to use the standard microswitch (ref. G310023, MCR3E1-5N).
*Extremely fast acting
*Extremely current limiting
*Very low I²t
*Worldwide acceptability
*Superior cycling ability
