OT7 Mersen Fuses
Part#:OT7
Manufacturer:Mersen
Alt. Part#:782001700065
Product Lifecycle:Active
Get a quick Quote!

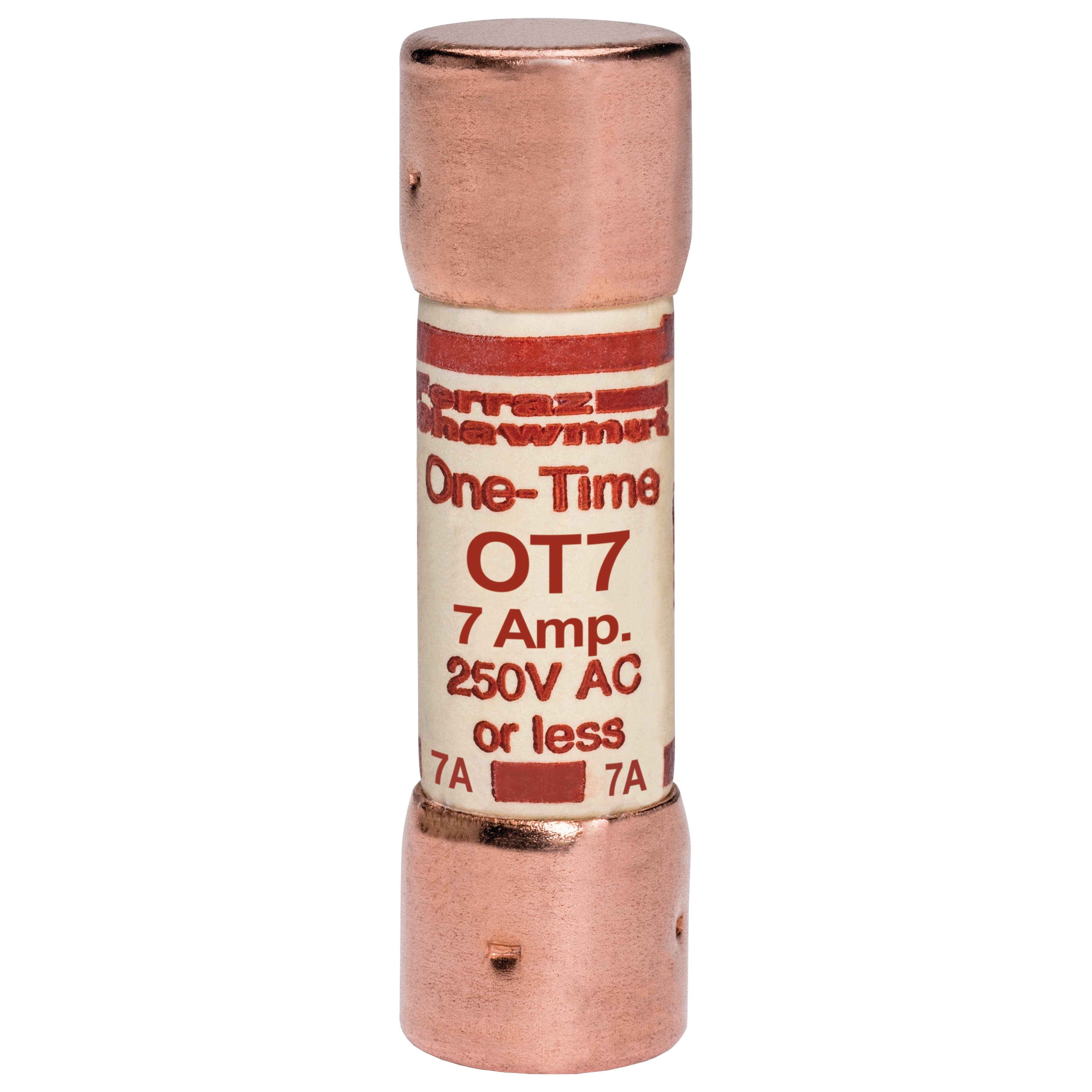

OT7 Mersen - Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 7A Ferrule Amp-Trap®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the OT7 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating7 A
- Voltage250 VAC / 250 VDC
- Trip ClassFast-Acting
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass K5
- Terminal TypeFerrule
- UL CertificationYES
- MaterialPaper
- Weight13.1515 g
- Approvals*UL Listed to Standard 248-9 File E2137 *CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.) *Self-certified for DC per UL248
- Rated voltage AC UL 250 V
- Speed/Characteristic Fast-Acting
- Sell Pack Width 2.06 in
- Rated voltage DC UL 250 V
- Product Length 2 in
- ROHS Compliant Yes
- Sell Pack Quantity 10 Each
- Fuse Class Class K5
- Product Weight 0.04 lb
- Mounting Clip
- Product Diameter 0.56 in
- Connection/Terminal Material Copper
- Connection/Terminal Type Ferrule
- Sell Pack Height 1.19 in
- AC Max I.R./Breaking Capacity: I1 50 kA
- Body/Insulating Material Paper
- Sell Pack Length 3 in
- Ampere Rating 7 A
- Sell Pack Weight 0.42 lb
- Amps: 7 A
- Approval: UL 248-9
- UPC: 782001700065
- Characteristics: Fast Acting
- Shipping Width: 3.00 In.
- Interrupting Rating: 50 Kiloamp (AC)
- Type: Class K5
- Shipping Height: 2.00 In.
- Length: 2 Inch
- Diameter: 0.57 Inch
- Terminal Type: Ferrule
- Shipping Weight: 0.30 lbs.
- Volts: 250 VAC/DC
- Shipping Length: 3.00 In.
- Series: OT
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OT7 Description
OT7 Mersen - Fuse OT - Class K5 - Fast-Acting 250VAC 250VDC 7A Ferrule Amp-Trap®
Related documents OT7 Specs
