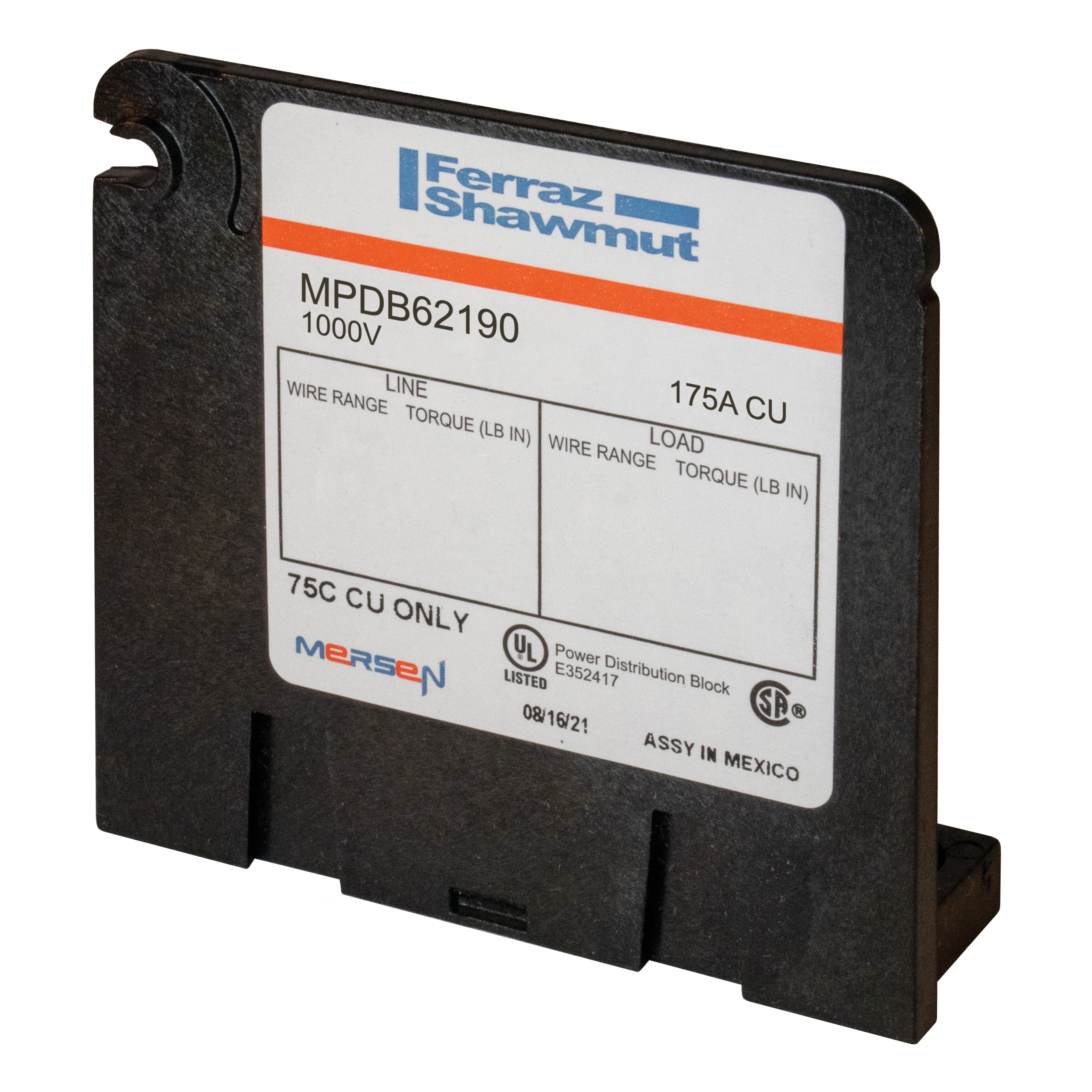

MPDB62190 Mersen Fuse Holders
Part#:MPDB62190
Manufacturer:Mersen
Alt. Part#:782001450731
Product Lifecycle:Active
Get a quick Quote!
MPDB62190 Mersen Open-Style PDB UL 1953 1000V Tin-plated Copper - 175A Adder 1 - 2 openings; 2/0-#14 --- #2-#14 Box to Box
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the MPDB62190 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of PolesAdder Pole
- Current Rating175 A
- Voltage1000 V
- Weight140.74 g
- Short Circuit Rating (Standalone) 10 kA
- Number of Openings per Pole (Secondary) 2
- Product Weight 0.31 lb
- Torque Rating (Secondary) #2-#3 50; #4-#6 35; #8 25; #10-#14 20
- Sell Pack Width 3.13 in
- Short Circuit Rating (Class L) 100 kA
- Short Circuit Rating (Class T) 100 kA
- Hex/Screw Size & Type (Secondary) 5/16-24 x .38
- Sell Pack Height 2.88 in
- ROHS Compliant Yes
- Short Circuit Rating (Class RK5) 30 kA
- Connector Type (Secondary) Box
- Wire Range (Secondary) #2-#14
- Installation Mounting Direct Screw Mount
- Short Circuit Rating (Class CC) 30 kA
- Number of Poles Adder
- Torque Rating (Primary) 2/0-#3 50; #4-#6 45; #8 40; #10-#14 35
- Product Height 2.81 in
- Rated voltage AC UL 1000 V
- Number of Openings per Pole (Primary) 1
- Hole Diameter (Secondary) 0.31 in
- Sell Pack Weight 1.95 lb
- Short Circuit Rating (Class RK1) 60 kA
- Connector Material Tin-plated Copper
- Hole Diameter (Primary) 0.44 in
- Product Width 0.93 in
- Short Circuit Rating (Class J) 100 kA
- Body/Insulating Material GFPC
- Wire Range (Primary) 2/0-#14
- Sell Pack Length 6.5 in
- Rated voltage DC UL 1000 V
- Short Circuit Rating (Class G) 60 kA
- Connector Type (Primary) Box
- Hex/Screw Size & Type (Primary) 3/8-24 x .56
- Product Length 3.08 in
- Sell Pack Quantity 6 Each
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MPDB62190 Description
MPDB62190 Mersen Open-Style PDB UL 1953 1000V Tin-plated Copper - 175A Adder 1 - 2 openings; 2/0-#14 --- #2-#14 Box to Box | The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper. | *Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block.
*Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors.
*Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools.
*Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements
1-year warranty
