M1002190 Mersen Electronic Components
Part#:M1002190
Manufacturer:Mersen
Alt. Part#:9008567000175
Product Lifecycle:Active
Get a quick Quote!

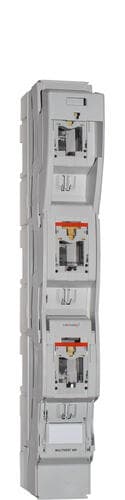

MULTIVERT 400A, triple pole switching M12 bolt
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the M1002190 Mersen price in the box on the right side or send a quick quote.
Product Details
- Rated Duty uninterrupted duty
- Max Power dissipation of Fuse Links Pn 34 W
- Installation Mounting Bus bar system 185 mm
- Sell Pack Height 4.13 in
- Frequency 50...60 Hz
- ROHS Compliant Yes
- Conventional Free Air thermal Current - Solid Links 630 A
- Rated short circuit making capacity with solid links Icm 16 kA
- Sell Pack Quantity 1 EACH
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 400 A
- Degree of Pollution 3
- Switchability 1 x triple pole, 3 x single pole
- Product Width 3.86 in
- Rated Insulation Voltage 1000 V
- Sell Pack Length 27.76 in
- Rated voltage AC IEC 690 V
- Fuse Size 2
- Max Power dissipation of Solid Links Pn 9 W
- Product Height 26.97 in
- Number of Poles 3-Pole
- Power Dissipation by Ith without Solid Links 151 W
- Sell Pack Weight 10.494 lb
- Power Dissipation by Ith without Fuse-Links 61 W
- Rated SC Withstand 8 kA / 1 s
- Product Weight 10.494 lb
- Catalogue No. 1.250.000
- Conventional Free Air thermal Current With Fuse-Links Ith 400 A
- Product Length 7.48 in
- Ampere Rating 400 A
- Comments Cable termination components : 3 M12 bolts
- Short Circuit Current Rating (SCCR) 120kA@Ue = AC 400 V; Ie = 400 A / 120kA@Ue = AC 500 V; Ie = 400 A / 120kA@Ue = AC 690 V; Ie = 315 A / 100kA@Ue = AC 690 V; Ie = 400 A
- Rated Impulse Withstand Voltage 12 kV
- Sell Pack Width 7.87 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
