L076485 Mersen Fuses
Part#:L076485
Manufacturer:Mersen
Alt. Part#:3605340018004
Product Lifecycle:Active
Get a quick Quote!

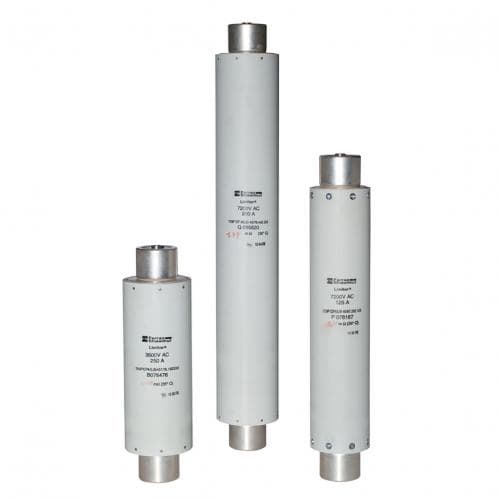

L076485 Mersen - High Voltage Back-up fuse for motor Limitor® 12kVAC IEC 200A d76mm, L442mm With Striker 50N
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the L076485 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating200 A
- Voltage12 kV AC
- Fuse ClassHigh Voltage IEC Fuses
- Terminal TypeCylindrical
- Weight9.259 lb
- Country Of OriginFR
- Rated voltage AC IEC 12 kV
- Connection/Terminal Material Silver-Plated Brass
- Product Length 20 in
- Catalogue No. 45ASB120V200P-3
- Indication System Yes
- Product Weight 9.259 lb
- Min Interrupting Rating (MBC) 1300 A
- Connection/Terminal Type Cylindrical
- Indication System Type Striker
- Sell Pack Height 3.94 in
- AC Max I.R./Breaking Capacity: I1 50 kA
- Power Dissipation at Intermediate Current Value 62W @ 0.7 In
- Product Diameter 2.99 in
- Sell Pack Quantity 3 EACH
- Ampere Rating 200 A
- Clearing I2t At Rated Voltage 720 kA²s
- Body/Insulating Material Melamine fiber glass
- Sell Pack Width 10.63 in
- Mounting Clip
- Fuse Size d=76mm, L=442mm
- Sell Pack Weight 27.778 lb
- Sell Pack Length 24.02 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
L076485 Description
L076485 Mersen - High Voltage Back-up fuse for motor Limitor® 12kVAC IEC 200A d76mm, L442mm With Striker 50N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Mersen HV fuse link for motor protection is specially designed to protect HV motors against the effect of short circuit current and support repeated peak currents due motor starting.
Mersen uses the best materials : fuse elements are in pure silver, caps are in silver-plated brass and body is in melamine fiber glass.
As defined in the IEC 60644 the coefficient K is 0.51.
High speed switching
*Voltage drive
*Low inductance module structure
*Energy efficency
*Back-up fuse-links
*High breaking capacity
*High current limitation
*Low power losses
*Striker 50N / 30mm
HV motor protection
*HV motor pump protection
*For indoor use
*Operating temperature -25°C to +40°C
