J1023048 Mersen Electronic Components
Part#:J1023048
Manufacturer:Mersen
Alt. Part#:9008567005668
Product Lifecycle:Active
Get a quick Quote!

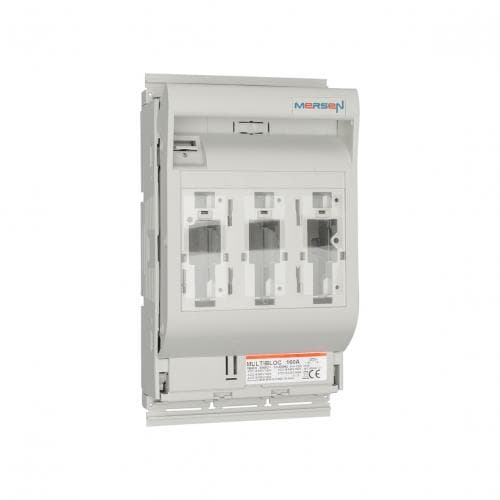

MULTIBLOC 00.ST9 size 00 / 160A, 3-pole terminal clamp straps/M8 terminal screws
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the J1023048 Mersen price in the box on the right side or send a quick quote.
Product Details
- Frequency 50...60 Hz
- Switchability Triple pole switching
- Rated Impulse Withstand Voltage 8 kV
- Conventional Free Air thermal Current With Fuse-Links Ith 160 A
- Catalogue No. 2.034.000
- Rated Insulation Voltage 1000 V
- Power Dissipation by Ith without Solid Links 17 W
- Sell Pack Quantity 1 EACH
- Rated voltage AC IEC 690 V
- Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 160 A / 80kA@Ue = AC 500 V; Ie = 160 A / 80kA@Ue = AC 690 V; Ie = 125 A
- Rated short circuit making capacity with solid links Icm 6.2 kA
- Product Length 3.19 in
- Sell Pack Width 4.37 in
- Power Dissipation by Ith without Fuse-Links 11 W
- Rated Duty uninterrupted duty
- Sell Pack Length 8.07 in
- Ampere Rating 160 A
- Rated voltage DC IEC 440 V
- Fuse Size 00
- Rated SC Withstand 4 kA / 1 s
- Conventional Free Air thermal Current - Solid Links 200 A
- Number of Poles 3-Pole
- Product Weight 1.653 lb
- Degree of Pollution 3
- Product Width 4.25 in
- Sell Pack Height 3.31 in
- Utilization Category AC21B @ Ue = AC 690 V; Ie = 160 A
- Max Power dissipation of Solid Links Pn 1.2 W
- Product Height 7.95 in
- ROHS Compliant Yes
- Installation Mounting Bottom Fitting/panel
- Sell Pack Weight 1.653 lb
- Max Power dissipation of Fuse Links Pn 12 W
- Comments 3 M8 terminal screws, 3 clamp straps Cu 4-70mm²
