HP10J600 Mersen Fuses

Mersen HP10J600 HP10J600 Mersen Photovoltaic fuse gPV 1000VDC UL 600A With Blade For Clip or Bolted
Mersen

Part#:HP10J600

Manufacturer:Mersen

Alt. Part#:782001462833

Product Lifecycle:Active

In-stock parts: 6

Aug 26, 2025

HP10J600 Mersen Photovoltaic fuse gPV 1000VDC UL 600A With Blade For Clip or Bolted

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the HP10J600 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating600 A
  • Voltage1000 VDC
  • Trip ClassPhotovoltaic
  • TypePhotovoltaic Fuses
  • Fuse ClassSpecial Purpose Fuses
  • Terminal TypeBlade
  • UL CertificationYES
  • Weight3.2 lb
  • Country Of OriginMX
  • Connection/Terminal Type
    Blade
  • Fuse Class
    Photovoltaic
  • Product Weight
    3.2 lb
  • Sell Pack Length
    2.38 in
  • Connection/Terminal Material
    Silver-Plated Copper
  • Body/Insulating Material
    GMG
  • Sell Pack Quantity
    1 Each
  • ROHS Compliant
    Yes
  • Product Length
    8 in
  • Speed/Characteristic
    gPV
  • AC Max I.R./Breaking Capacity: I1
    65 kA
  • Ampere Rating
    600 A
  • Product Diameter
    2.5 in
  • Sell Pack Weight
    3.36 lb
  • Rated voltage AC UL
    0 V
  • Sell Pack Height
    8.75 in
  • Rated voltage DC UL
    1000 V
  • Mounting
    Clip or Bolted
  • Sell Pack Width
    2.5 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

HP10J600 Description

HP10J600 Mersen Photovoltaic fuse gPV 1000VDC UL 600A With Blade For Clip or Bolted

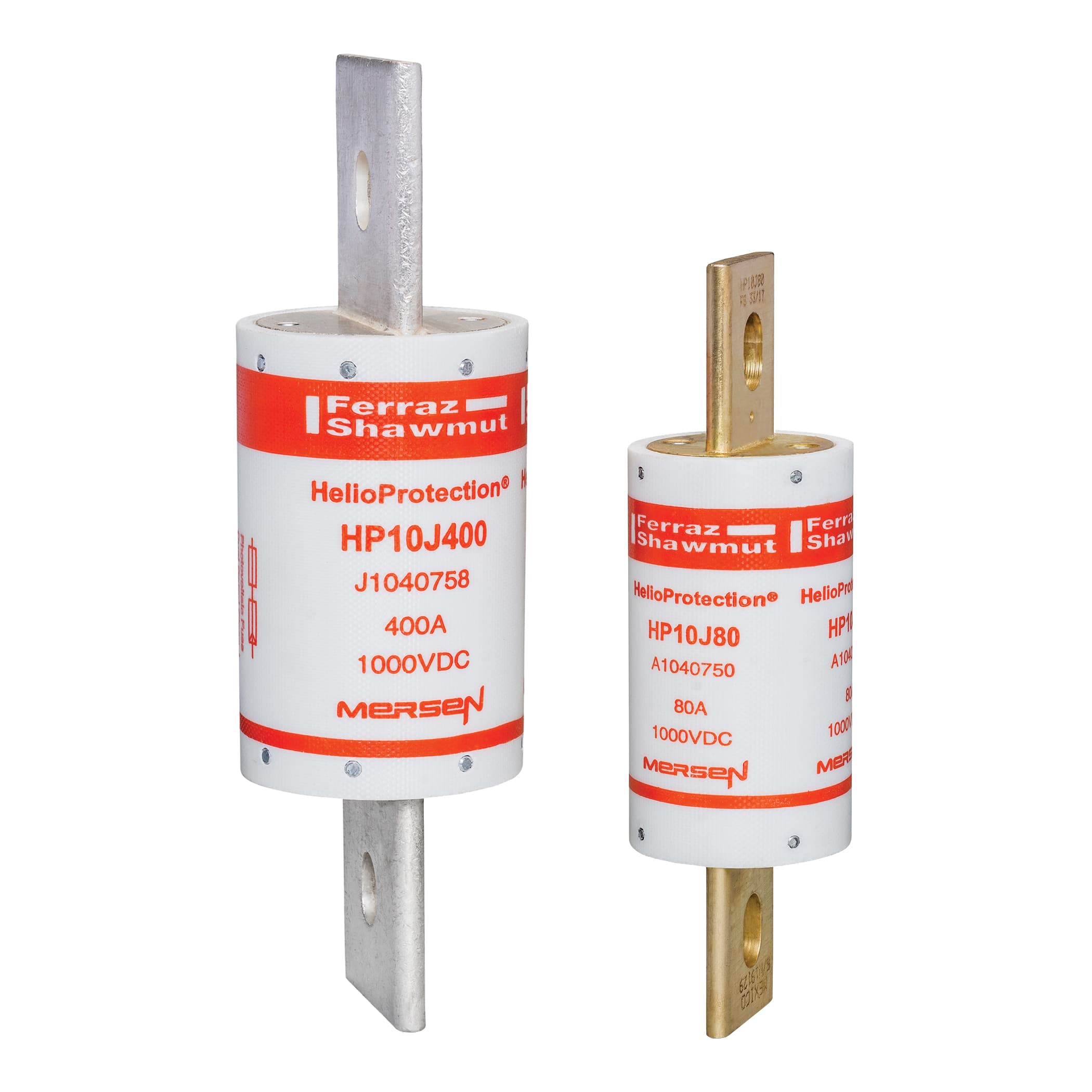

Mersen’s HP10J photovoltaic (PV) fuse series is designed specifically for DC Recombiner Boxes in the protection of 1000VDC photovoltaic systems. Its robust construction makes it ideal for continuous temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10J designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen’s HelioProtection® fuse line.

*UL Listed to standard 2579 – Photovoltaic Fuses

*Smallest available footprint in the industry

*Enlarged mounting holes

*Low fault current interrupting capability

*Durable construction for enhanced system longevity

*Temperature cycle withstand capability

*Guaranteed operation at temperature extremes

*Blown fuse indicator options available (EI option)

*200A to 400A available in NH3 mounting

*Re-combiner box (sub-combiner, array combiner, master combiner) applications

*Inverter DC input

*Battery charge controllers

Related documents HP10J600 Specs

HP10J600 DS-HP10J-HelioProtection-Fuses-Photovoltaic-Mersen (EN,PDF,391Ko).pdf
HP10J600 ATD-HP10J(70-500)-Mersen-720895 (PDF, 34Ko).pdf
HP10J600 Mersen-DWG-702054 (DXF, 1188Ko).dxf
HP10J600 Mersen-DWG-702054 (PDF, 67Ko).pdf
HP10J600 TCC-HP10J(70-600A)-Mersen-720897 (PDF, 52Ko).pdf
