H330264 Mersen Fuses
Part#:H330264
Manufacturer:Mersen
Alt. Part#:3605340364040
Product Lifecycle:Active
Get a quick Quote!

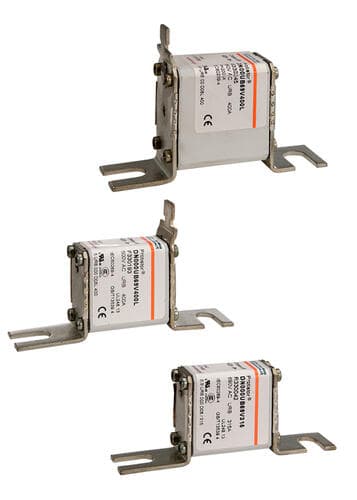

H330264 Mersen - Square Body High-Speed Fuse Protistor® Size NH 00 aR 690VAC IEC 350A With Striker DIN 110 Blades
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the H330264 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating350 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeDIN Type Blades
- Weight240.166 g
- Country Of OriginTN
- Ampere Rating 350 A
- Clearing I2t At Rated Voltage 118000 A²s
- Product Weight 0.529 lb
- Sell Pack Width 3.74 in
- Melting I2t 25450 A²s
- Connection/Terminal Material Silver-Plated Copper
- Product Width 1.18 in
- Fuse Size NH00
- Indication System Type Striker
- Sell Pack Weight 1.587 lb
- Speed/Characteristic aR
- Power Dissipation at Rated Current Value 60 W
- Product Height 2.56 in
- Mounting Bolted
- Connection/Terminal Type DIN Type Blades
- Sell Pack Quantity 3 EACH
- Catalogue No. DN00UB69V350D1L
- AC Max I.R./Breaking Capacity: I1 200 kA
- Product Length 5.12 in
- Rated voltage AC IEC 690 V
- Body/Insulating Material Ceramic
- Sell Pack Height 4.72 in
- Indication System Yes
- Sell Pack Length 6.1 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
H330264 Description
H330264 Mersen - Square Body High-Speed Fuse Protistor® Size NH 00 aR 690VAC IEC 350A With Striker DIN 110 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Superior cycling capability
1-year warranty
