E322165 Mersen Fuses

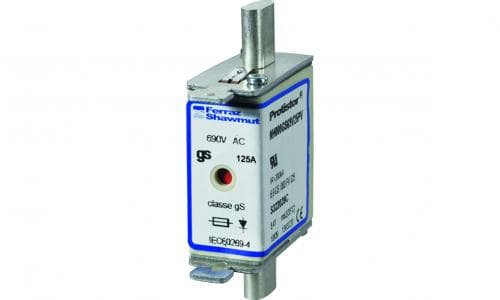

Mersen E322165 E322165 Mersen - Square Body High-Speed Fuse Protistor® NH Size 00 gS 690VAC IEC 700VAC UL 125A With Double indicator
Mersen

Part#:E322165

Manufacturer:Mersen

Alt. Part#:3605340360004

Product Lifecycle:Active

Get a quick Quote!

E322165 Mersen - Square Body High-Speed Fuse Protistor® NH Size 00 gS 690VAC IEC 700VAC UL 125A With Double indicator

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the E322165 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating125 A
  • Trip ClassHigh Speed
  • Fuse ClassSemiconductor
  • Weight200.214 g
  • Country Of OriginTN
  • Ampere Rating
    125 A
  • Melting I2t
    2170 A²s
  • Sell Pack Weight
    1.323 lb
  • Mounting
    Clip
  • Body/Insulating Material
    Ceramic
  • Sell Pack Width
    3.35 in
  • Speed/Characteristic
    gS
  • Product Weight
    0.441 lb
  • Indication System
    Yes
  • Product Length
    3.09 in
  • Rated voltage AC UL
    700 V
  • Clearing I2t At Rated Voltage
    10850 A²s
  • Product Width
    1.18 in
  • Sell Pack Quantity
    3 EACH
  • ROHS Compliant
    Yes
  • Indication System Type
    Double Indicator
  • Product Height
    2.36 in
  • Catalogue No.
    NH00GS69V125PV
  • Power Dissipation at Rated Current Value
    16 W
  • Sell Pack Height
    2.56 in
  • Fuse Size
    NH00
  • Rated voltage AC IEC
    690 V
  • AC Max I.R./Breaking Capacity: I1
    160 kA
  • Sell Pack Length
    3.74 in

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

E322165 Description

E322165 Mersen - Square Body High-Speed Fuse Protistor® NH Size 00 gS 690VAC IEC 700VAC UL 125A With Double indicator

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes

*gS Class according to IEC 60269-4

*Low I²t for improved semiconductor protection

*Fast acting

*Highly current limiting

*Excellent cycling capability

*Reduced power dissipation

*No derating in standard NH fusegear

*High widstanding against inrush current and overloads

Related documents E322165 Specs

E322165 DS-Semiconductor-Protection-Square-Body-Fuses-Protistor-Size-000-00-1-2-3-gS-690VAC-EN (EN,PDF,1200Ko).pdf
