E300269 Mersen Fuses
Part#:E300269
Manufacturer:Mersen
Alt. Part#:3605340326093
Product Lifecycle:Active
Get a quick Quote!

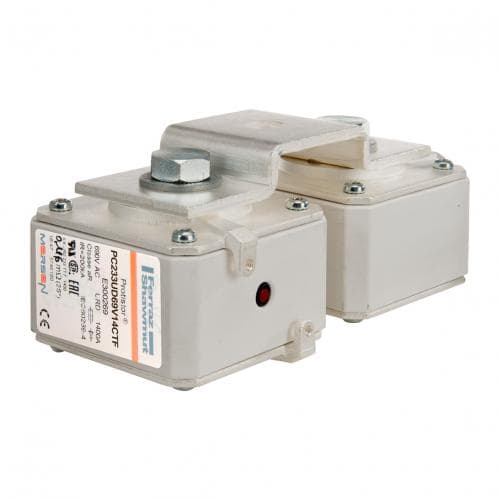

E300269 Mersen - Square Body High-Speed Fuse Protistor® Size 2x33 aR 690VAC IEC 700VAC UL 1400A With Striker Flush ends metric threads With Omega connection
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the E300269 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating1400 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeEnd Contact with Threaded Holes
- Weight1983.98 g
- Country Of OriginFR
- AC Max I.R./Breaking Capacity: I1 170 kA
- Indication System Yes
- Sell Pack Weight 4.264 lb
- Power Dissipation at Rated Current Value 240 W
- Connection/Terminal Material Silver-Plated Brass
- Product Length 2.66 in
- Sell Pack Height 2.76 in
- Ampere Rating 1400 A
- Catalogue No. PC233UD69V14CTF
- Connection/Terminal Type End Contact with Threaded Holes
- Product Height 3.09 in
- Mounting Bolted
- Fuse Size 2x33
- Body/Insulating Material Ceramic
- Sell Pack Width 35.43 in
- Speed/Characteristic aR
- Indication System Type Striker
- Sell Pack Quantity 1 EACH
- Clearing I2t At Rated Voltage 1200 kA²s
- Rated voltage AC UL 700 V
- Product Weight 4.264 lb
- Sell Pack Length 7.87 in
- Melting I2t 228 kA²s
- Rated voltage AC IEC 690 V
- Product Width 6.48 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
E300269 Description
E300269 Mersen - Square Body High-Speed Fuse Protistor® Size 2x33 aR 690VAC IEC 700VAC UL 1400A With Striker Flush ends metric threads With Omega connection
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body ultra-fast acting aR fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
1-year warranty
