E1062213 Mersen Electronic Components
Part#:E1062213
Manufacturer:Mersen
Alt. Part#:9008567014332
Product Lifecycle:Active
Get a quick Quote!

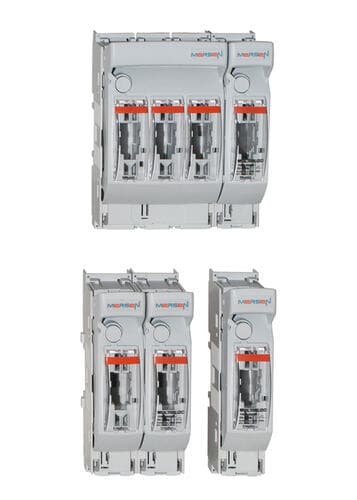

MULTIBLOC 00.ST8 size 00 / 160A, 1-pole+N = solid link / pole 2, leading/lagging
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the E1062213 Mersen price in the box on the right side or send a quick quote.
Product Details
- Frequency 50...60 Hz
- Fuse Size 00
- ROHS Compliant Yes
- Conventional Free Air thermal Current With Fuse-Links Ith 160 A
- Ampere Rating 160 A
- Rated Duty uninterrupted duty
- Max Power dissipation of Solid Links Pn 1.2 W
- Installation Mounting Bottom Fitting/panel
- Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 160 A / 80kA@Ue = AC 500 V; Ie = 160 A / 50kA@ Ue = AC 690 V; Ie = 125 A
- Utilization Category AC21B @ Ue = AC 690 V; Ie = 125 A
- Product Weight 1.367 lb
- Rated voltage DC IEC 220 V
- Catalogue No. 1.004.453
- Conventional Free Air thermal Current - Solid Links 200 A
- Power Dissipation by Ith without Solid Links 12.5 W
- Sell Pack Height 3.35 in
- Product Length 3.31 in
- Sell Pack Width 3.54 in
- Rated voltage AC IEC 690 V
- Rated Insulation Voltage 1000 V
- Max Power dissipation of Fuse Links Pn 12 W
- Switchability 1-,2-,4-pole switching
- Product Width 3.31 in
- Rated Impulse Withstand Voltage 8 kV
- Sell Pack Weight 1.367 lb
- Rated SC Withstand 4 kA / 1 s
- Degree of Pollution 3
- Sell Pack Quantity 1 EACH
- Design Details with ready fitted special solid link as neutral conductor in pole 2 for leading and lagging switching (right side)
- Number of Poles 2-Pole
- Power Dissipation by Ith without Fuse-Links 8 W
- Comments Cable termination components : 3 M8 terminal screws
- Rated short circuit making capacity with solid links Icm 6.2 kA
- Product Height 7.24 in
- Sell Pack Length 7.68 in
