D1069365 Mersen Electronic Components
Part#:D1069365
Manufacturer:Mersen
Alt. Part#:9008567015209
Product Lifecycle:Active
Get a quick Quote!

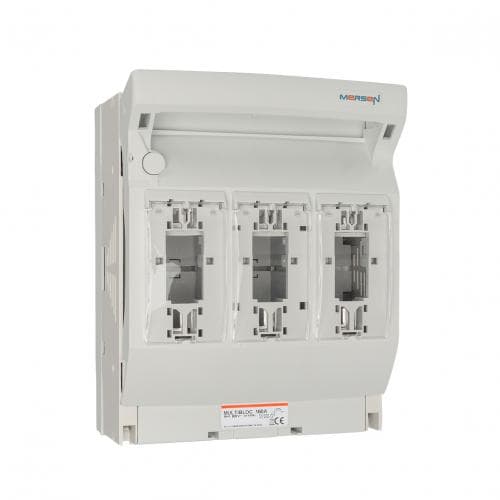

MULTIBLOC 1.ST8 size 1 / 160A, 3-pole AC 800V, clamp strap 1.000.420
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the D1069365 Mersen price in the box on the right side or send a quick quote.
Product Details
- Ampere Rating 160 A
- Frequency 50...60 Hz
- Fuse Size 1
- Max Power dissipation of Fuse Links Pn 23 W
- Product Width 7.28 in
- Switchability 1-,2-,3-,4-pole switching
- Rated Impulse Withstand Voltage 12 kV
- Conventional Free Air thermal Current With Fuse-Links Ith 160 A
- Product Weight 5.335 lb
- Sell Pack Weight 5.335 lb
- Catalogue No. 8.002.562
- Product Length 4.35 in
- Sell Pack Height 4.41 in
- Rated short circuit making capacity with solid links Icm 8.2 kA
- Utilization Category AC22B @ Ue = AC 500 V; Ie = 250 A
- Number of Poles 3-Pole
- Max Power dissipation of Solid Links Pn 2.6 W
- Rated voltage AC IEC 800 V
- Comments 6 clamp straps 70-150 mm²
- Short Circuit Current Rating (SCCR) Ue=AC 800 V; Ie=160 A 10kA Ue=AC 800 V; Ie=250 A 10kA
- Rated Insulation Voltage 1000 V
- Sell Pack Length 9.76 in
- ROHS Compliant Yes
- Rated SC Withstand 8 kA / 1 s
- Power Dissipation by Ith without Solid Links 33 W
- Sell Pack Width 7.36 in
- Degree of Pollution 3
- Installation Mounting Bottom Fitting/panel
- Product Height 9.69 in
- Rated Duty uninterrupted duty
- Conventional Free Air thermal Current - Solid Links 400 A
- Power Dissipation by Ith without Fuse-Links 13 W
- Sell Pack Quantity 1 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents D1069365 Specs
