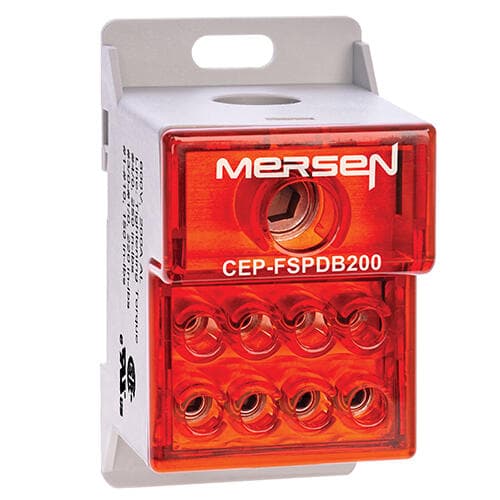

CEP-FSPDB200 Mersen Fuse Holders
Part#:CEP-FSPDB200
Manufacturer:Mersen
Alt. Part#:782001499051
Product Lifecycle:Active
Get a quick Quote!
CEP-FSPDB200 Mersen Compact PDB 600V 155A - 200A Tin-plated Aluminum 1-Pole 1 - 8 openings; 4/0 - #10 --- #4-#14
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the CEP-FSPDB200 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles1 Pole
- Current Rating200 A
- Voltage600 V
- Weight158.9 g
- Rated voltage DC UL 600 V
- ROHS Compliant Yes
- Short Circuit Rating (Class T) 250 A
- Short Circuit Rating (Class RK5) 100 A
- Connector Type (Secondary) Box
- Wire Range (Secondary) #4-#14
- Sell Pack Quantity 3 Each
- Short Circuit Rating (Standalone) 10 kA
- Number of Openings per Pole (Secondary) 8
- Torque Rating (Secondary) #4-#14 50
- Sell Pack Width 4.2 in
- Sell Pack Height 2 in
- Short Circuit Rating (Class J) 250 A
- Rated voltage AC UL 600 V
- Connector Material Tin-plated Aluminum
- Hole Diameter (Primary) 0.45 in
- Product Weight 0.35 lb
- Number of Poles 1-Pole
- Hole Diameter (Secondary) 0.21 in
- Installation Mounting Screw Mount or DIN Rail
- Sell Pack Weight 1.25 lb
- Short Circuit Rating (Class RK1) 200 A
- Connector Type (Primary) Box
- Torque Rating (Primary) 4/0 250; 3/0-1/0 220; #1-#10 150
- Wire Range (Primary) DLO 3/0 - #10
- Sell Pack Length 8.9 in
- Short Circuit Rating (Class CC) 30 A
- Ampere Rating (AL) 155 A
- Body/Insulating Material Glass Filled Polycarbonate
- Hex/Screw Size & Type (Primary) hex 1/4
- Product Length 3.21 in
- Short Circuit Rating (Class G) 60 A
- Ampere Rating (CU) 200 A
- Number of Openings per Pole (Primary) 1
- Wire Range (Primary) 4/0 - #10
- Product Height 2.21 in
- Hex/Screw Size & Type (Secondary) hex 1/8
- Product Width 1.79 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
CEP-FSPDB200 Description
CEP-FSPDB200 Mersen Compact PDB 600V 155A - 200A Tin-plated Aluminum 1-Pole 1 - 8 openings; 4/0 - #10 --- #4-#14 | Mersen's finger safe IP20-rated Power Distribution Blocks are part of the new Compact EP® line of products. The compact footprint allows space savings in panels, contributing to reduced panel size when compared to traditional power distribution blocks.
The Compact PDB is ideal for low voltage applications. Rated for UL-600V, ampere range of 85-250A, it can accommodate wire ranges AWG 18-3/0, catering to a wide range of low voltage applications. The PDBs
can be DIN rail mounted, are dual wire rated, and are capable of DLO wire acceptance allowing ease of installation. Translucent covers allow visual inspection of wire termination points and wiring configurations. | *Finger-safe protection: Fully insulated block ensures touch-safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529
*Translucent cover allows for visual inspection of wire termination
*Compact modularity: Smaller footprint allows panel builders to reduce space and build smaller or higher density panels
*Snap on DIN-rail mounting: Integral DIN rail adaptors allow for quick and easy installations on 35mm DIN rail, yielding lower installed costs
*Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost
*Multiple wire ratings: Blocks are multi wire rated - see multi wire rating table and can accommodate 18AWG wire for low voltage applications such as LED lighting
*Can also accept DLO wires.
Related documents CEP-FSPDB200 Specs
