C301716 Mersen Fuses
Part#:C301716
Manufacturer:Mersen
Alt. Part#:3605340345629
Product Lifecycle:Active
Get a quick Quote!

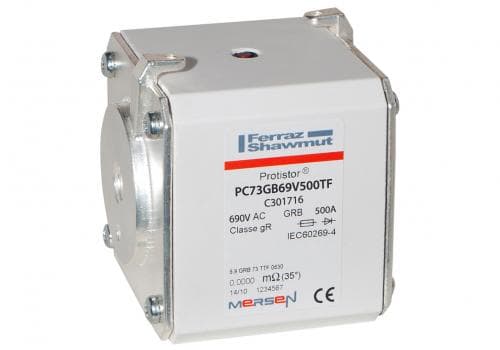

C301716 Mersen - Square Body High-Speed Fuse Protistor® Size 73 gR 690VAC IEC 500A With Striker Flush ends metric threads
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the C301716 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating500 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeEnd Contact with Threaded Holes
- Weight1221.26 g
- Country Of OriginFR
- Ampere Rating 500 A
- Design Details Standard Terminal
- Product Height 3.09 in
- Mounting Bolted
- Indication System Type Striker
- Product Width 2.87 in
- Sell Pack Length 5.12 in
- Catalogue No. PC73GB69V500TF
- AC Max I.R./Breaking Capacity: I1 150 kA
- Body/Insulating Material Ceramic
- Sell Pack Width 4.33 in
- Melting I2t 47.3 kA²s
- Speed/Characteristic gR
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Quantity 1 EACH
- Fuse Size 73
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Weight 2.69 lb
- Clearing I2t At Rated Voltage 280 kA²s
- Power Dissipation at Rated Current Value 84 W
- Product Weight 2.69 lb
- Sell Pack Height 3.15 in
- Rated voltage AC IEC 690 V
- Indication System Yes
- Product Length 2.91 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
C301716 Description
C301716 Mersen - Square Body High-Speed Fuse Protistor® Size 73 gR 690VAC IEC 500A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® gR have been engineered to provide full range protection to eliminate all overloads and short circuit fault. Each fuse is assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Excellent cycling capability
*Multiple body sizes and terminals or blades combination
*Extremely fast acting
*Eliminate all overloads
*Low I²t for improved semiconductor protection
*gR Class according to IEC 60269-4 and VDE 636-23
Related documents C301716 Specs
