B1069363 Mersen Electronic Components
Part#:B1069363
Manufacturer:Mersen
Alt. Part#:9008567015186
Product Lifecycle:Active
Get a quick Quote!

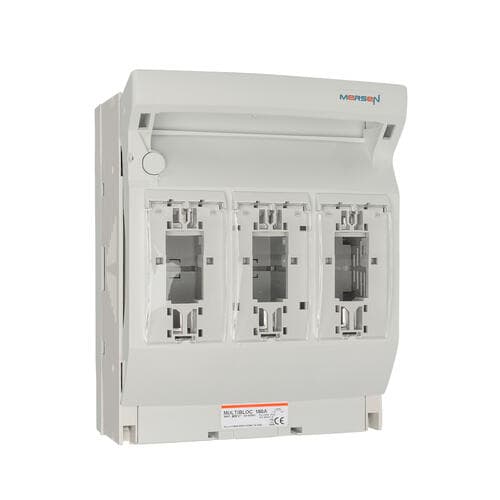

MULTIBLOC 1.ST8 size 1 / 160A, 3-pole AC 800V, M10 terminal screws
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the B1069363 Mersen price in the box on the right side or send a quick quote.
Product Details
- Catalogue No. 8.000.299
- ROHS Compliant Yes
- Rated Impulse Withstand Voltage 12 kV
- Power Dissipation by Ith without Solid Links 33 W
- Max Power dissipation of Solid Links Pn 2.6 W
- Sell Pack Weight 5.335 lb
- Sell Pack Length 9.76 in
- Frequency 50...60 Hz
- Fuse Size 1
- Number of Poles 3-Pole
- Sell Pack Width 7.36 in
- Product Weight 5.335 lb
- Switchability 1-,2-,3-,4-pole switching
- Rated Insulation Voltage 1000 V
- Max Power dissipation of Fuse Links Pn 23 W
- Rated voltage AC IEC 800 V
- Ampere Rating 160 A
- Short Circuit Current Rating (SCCR) Ue=AC 800 V; Ie=160 A 10kA Ue=AC 800 V; Ie=250 A 10kA
- Rated Duty uninterrupted duty
- Degree of Pollution 3
- Product Width 7.28 in
- Conventional Free Air thermal Current - Solid Links 400 A
- Sell Pack Height 4.41 in
- Product Length 4.35 in
- Product Height 9.69 in
- Sell Pack Quantity 1 EACH
- Installation Mounting Bottom Fitting/panel
- Utilization Category AC21B @ Ue = AC 690 V; Ie = 200 A
- Conventional Free Air thermal Current With Fuse-Links Ith 160 A
- Comments Cable termination components : 6 M10 terminal screws
- Rated short circuit making capacity with solid links Icm 8.2 kA
- Power Dissipation by Ith without Fuse-Links 13 W
- Rated SC Withstand 8 kA / 1 s
