ATMR25 Mersen Fuses
Part#:ATMR25
Manufacturer:Mersen
Alt. Part#:782001904838
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025

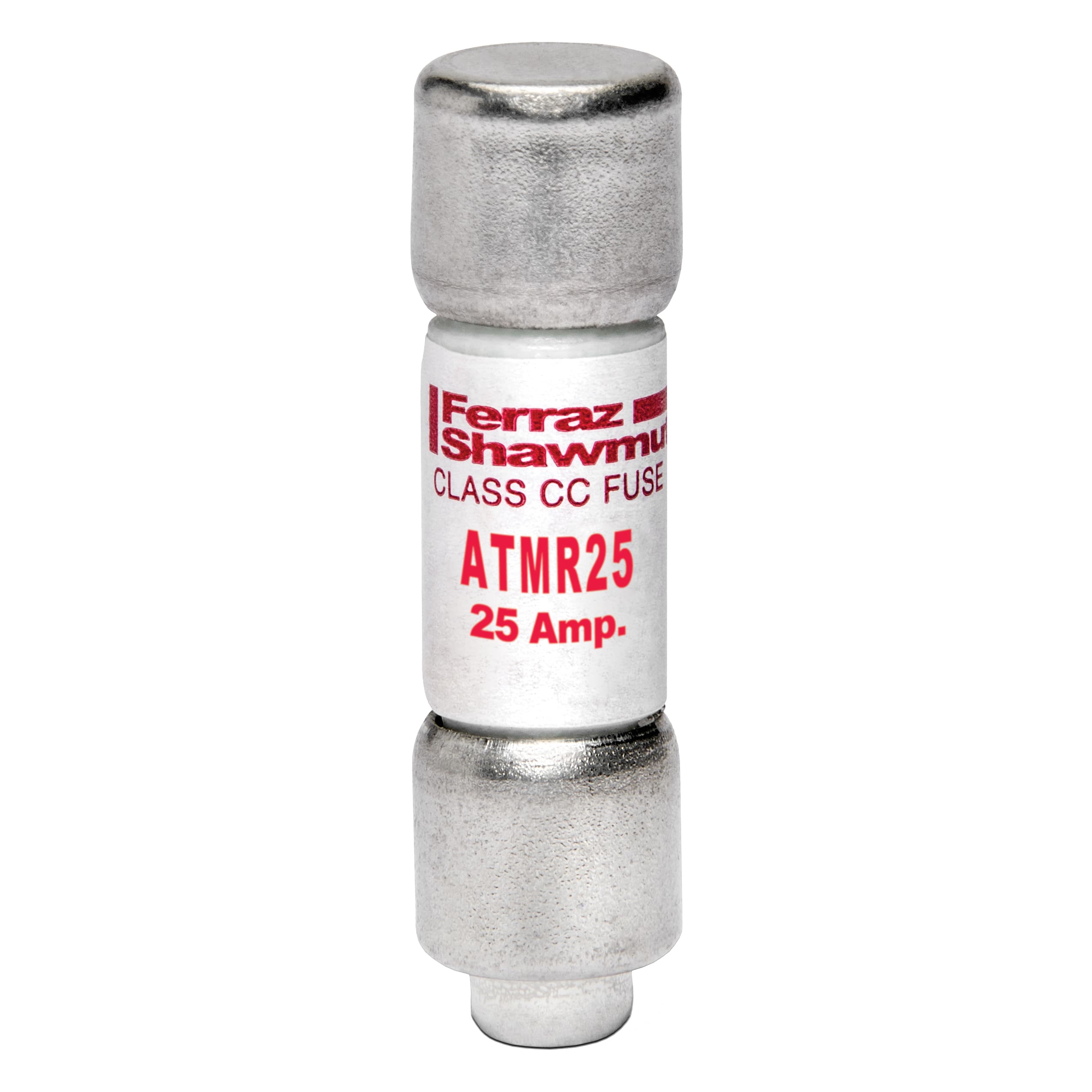

ATMR25 Mersen - Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 25A Ferrule Amp-Trap®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the ATMR25 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating25 A
- Voltage600 VAC / 600 VDC
- Trip ClassFast-Acting
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass CC
- Terminal TypeFerrule
- UL CertificationYES
- MaterialGMG
- Weight7.7095 g
- Approvals*UL Listed to Standard 248-4 File E2137 *CSA Certified to Standard C22.2 No. 248.4 *DC listed to UL Standard 248
- Ampere Rating 25 A
- Product Length 1.5 in
- Rated voltage AC UL 600 V
- Speed/Characteristic Fast-Acting
- Sell Pack Weight 0.21 lb
- Mounting Clip
- Product Diameter 0.41 in
- Connection/Terminal Type Ferrule
- Frequency 50/60 Hz
- Sell Pack Height 2.12 in
- ROHS Compliant Yes
- Sell Pack Width 0.88 in
- Rated voltage DC UL 600 V
- Product Weight 0.02 lb
- Sell Pack Quantity 10 Each
- Connection/Terminal Material Tin-Plated Copper
- AC Max I.R./Breaking Capacity: I1 200 kA
- Fuse Class Class CC
- Body/Insulating Material GMG
- Sell Pack Length 1.62 in
- Shipping Weight: 0.20 lbs.
- Shipping Length: 2.00 In.
- Shipping Width: 2.00 In.
- Shipping Height: 1.00 In.
- UPC: 78200190483
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
ATMR25 Description
ATMR25 Mersen - Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 25A Ferrule Amp-Trap®
