AJT25 Mersen Fuses
Part#:AJT25
Manufacturer:Mersen
Alt. Part#:782001962425
Product Lifecycle:Active
In-stock parts: 11
Jun 20, 2025

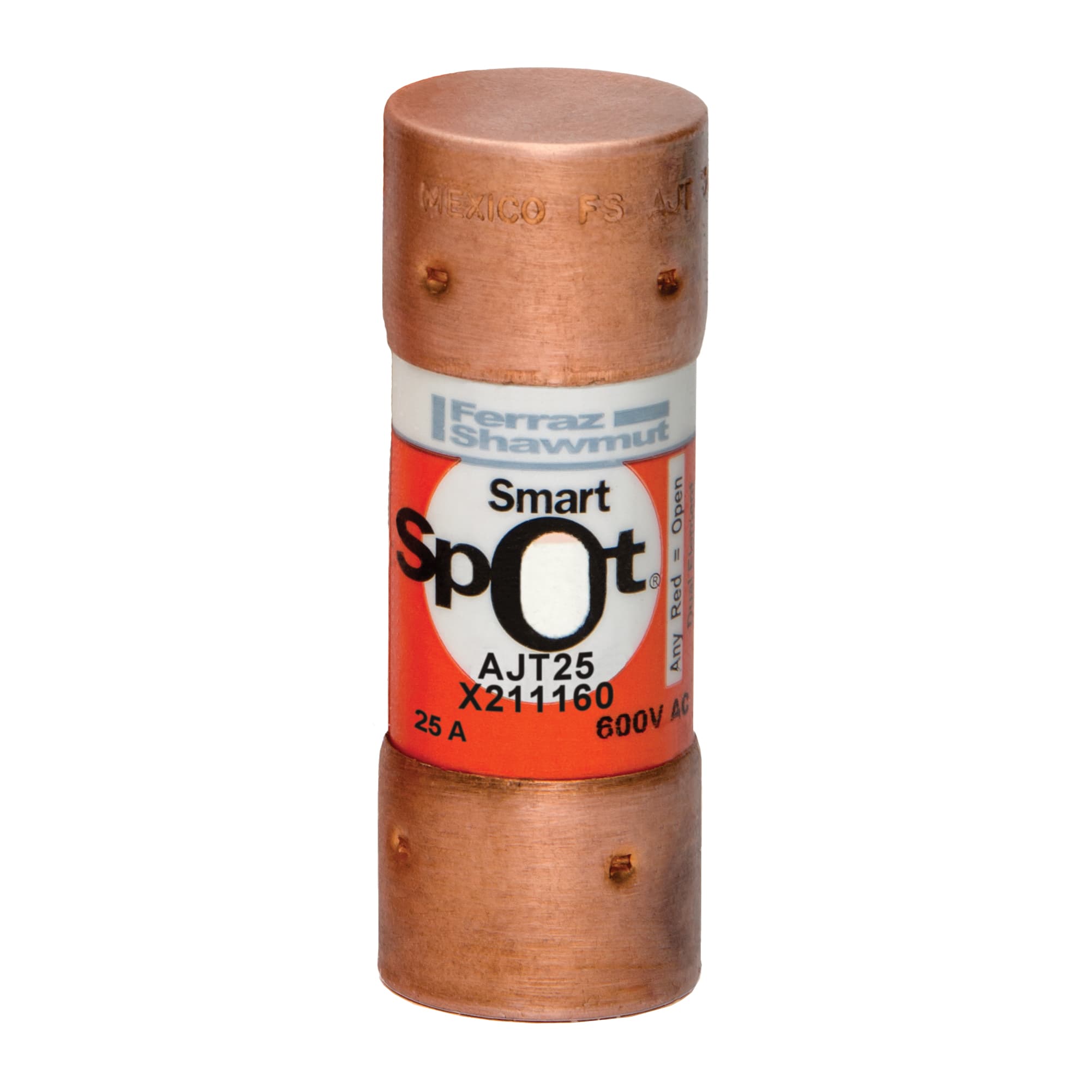

AJT25 Mersen - Fuse AJT - Class J - Time-delay 600VAC 400VDC 25A Ferrule SmartSpot® Amp-Trap 2000®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the AJT25 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating25 A
- Voltage600 VAC / 400 VDC
- Trip ClassTime Delay
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass J
- Terminal TypeFerrule
- UL CertificationYES
- MaterialGMG
- Weight43.9895 g
- ApprovalsAJT (1-600): *UL listed to standard 248-8 File E2137 *DC listed to UL standard 248 *CSA certified to standard C22.2 No. 248.8 *IEC 60269-2-1 AJT (70-600) EI: *UL listed *DC tested to UL standard 248
- Speed/Characteristic Time Delay
- Body/Insulating Material GMG
- ROHS Compliant Yes
- Connection/Terminal Type Ferrule
- Rated voltage AC UL 600 V
- Product Diameter 0.81 in
- Rated voltage DC UL 400 V
- Connection/Terminal Material Tin-Plated Copper
- Sell Pack Quantity 10 Each
- AC Max I.R./Breaking Capacity: I1 200 kA
- Product Weight 0.2 lb
- Sell Pack Width 2.38 in
- Ampere Rating 25 A
- Frequency 50/60 Hz
- Sell Pack Weight 2.1 lb
- Fuse Class Class J
- Indication System Type SmartSpot®
- Sell Pack Height 1.69 in
- Mounting Clip
- Indication System Yes
- Product Length 2.25 in
- Sell Pack Length 4.25 in
- Shipping Length: 5.00 In.
- Shipping Height: 2.00 In.
- Shipping Width: 3.00 In.
- Shipping Weight: 1.05 lbs.
- TS PIK: 110477758
- UPC: 78200196242
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
AJT25 Description
AJT25 Mersen - Fuse AJT - Class J - Time-delay 600VAC 400VDC 25A Ferrule SmartSpot® Amp-Trap 2000®
Related documents AJT25 Specs
This item can ship within 24h!
1-year warranty
$30.74
Stock:
11
Select Qty:
$30.74
$30.74 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Mersen
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Mersen Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Mersen Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Mersen, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
