A6D12R Mersen Fuses
Part#:A6D12R
Manufacturer:Mersen
Alt. Part#:782001991814
Product Lifecycle:Active
Get a quick Quote!

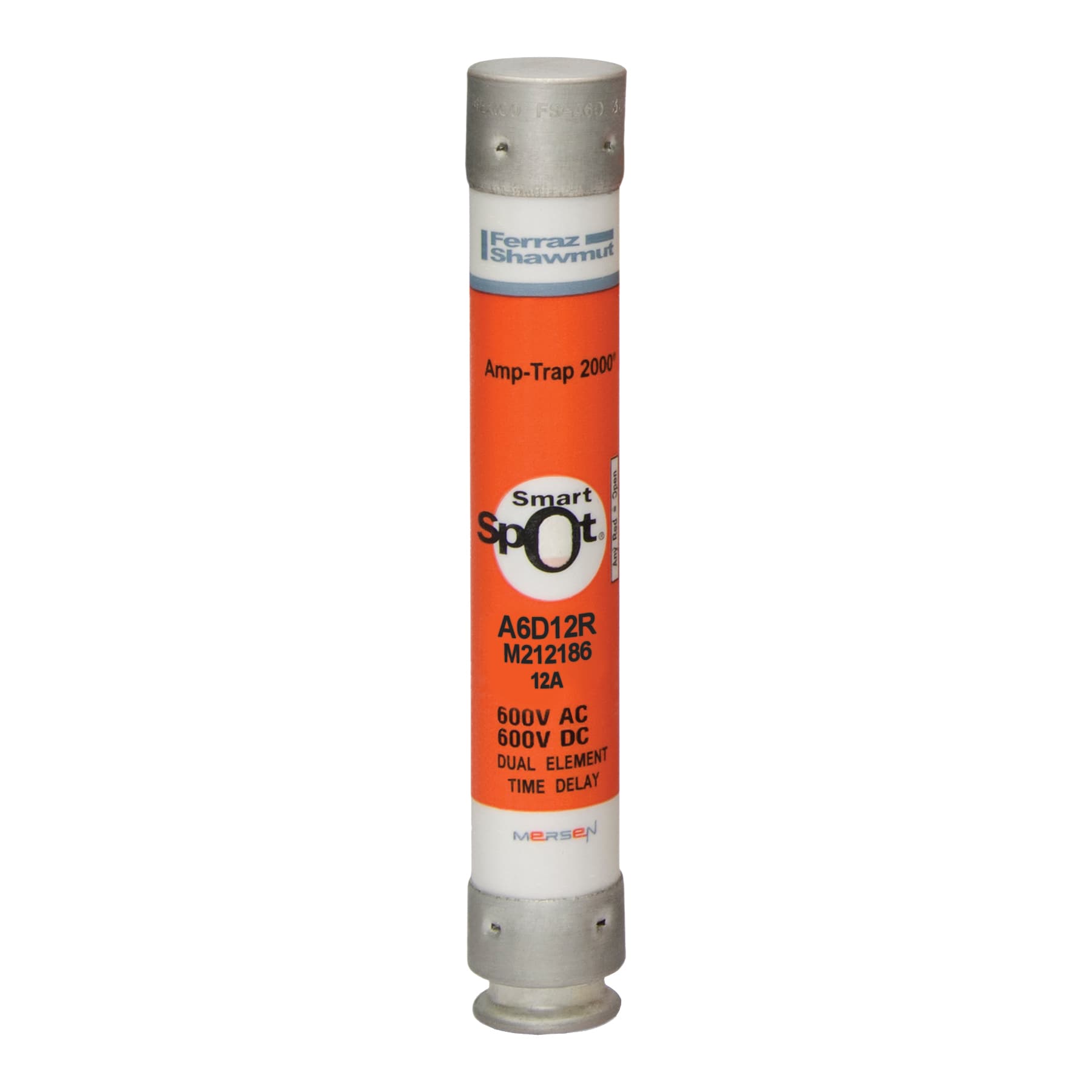

A6D12R Mersen - Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 12A Ferrule SmartSpot® Amp-Trap 2000®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A6D12R Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating12 A
- Voltage600 VAC / 600 VDC
- Trip ClassTime Delay
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass RK1
- Terminal TypeFerrule
- UL CertificationYES
- MaterialPolyTube
- Weight66.211 g
- Approvals*UL listed to standard 248-12 File E2137 *DC listed to UL standard 248 *CSA certified to standard C22.2 No. 248.12
- Speed/Characteristic Time Delay
- Rated voltage DC UL 600 V
- Sell Pack Height 1.75 in
- Indication System Type SmartSpot®
- Product Diameter 0.81 in
- Rated voltage AC UL 600 V
- Connection/Terminal Type Ferrule
- Fuse Class Class RK1
- Sell Pack Weight 1.47 lb
- AC Max I.R./Breaking Capacity: I1 200 kA
- Body/Insulating Material PolyTube
- Sell Pack Length 5.12 in
- Indication System Yes
- Product Weight 0.14 lb
- Product Length 5 in
- Mounting Clip
- Sell Pack Quantity 10 Each
- Ampere Rating 12 A
- Connection/Terminal Material Tin-Plated Copper
- Sell Pack Width 4.12 in
- UPC: 782001991814
- Type: Class RK1
- Terminal Type: Ferrule
- Characteristics: Time Delay
- Shipping Length: 5.00 In.
- Time Delay: Voltage Rating
- Shipping Width: 1.00 In.
- Amps: 32 A
- Shipping Weight: 0.10 lbs.
- Volts: 600 VAC/DC
- Interrupting Rating: 200 kA (AC)
- Series: A6D-R
- Shipping Height: 1.00 In.
- Diameter: 13/16 Inch
- Approval: UL 248/248-12
- Length: 5 Inch
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A6D12R Description
A6D12R Mersen - Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 12A Ferrule SmartSpot® Amp-Trap 2000®
