A550C40-75 Mersen Fuses
Part#:A550C40-75
Manufacturer:Mersen
Alt. Part#:782001355098
Product Lifecycle:Active
Get a quick Quote!

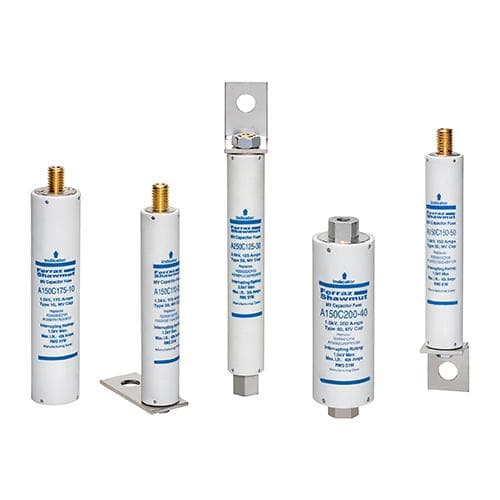

A550C40-75 Mersen - Medium Voltage Capacitor Fuse 5500VAC 40A Female Stud To Female Tube Visual Indicator Amp-Trap®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A550C40-75 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating40 A
- Voltage5500 VAC
- Fuse ClassMedium Voltage IEEE Fuses
- Terminal TypeFemale Stud To Female Tube
- Weight2.5 lb
- Country Of OriginMX
- Indication System Type Visual Indicator
- Product Weight 2.5 lb
- Sell Pack Height 10.81 in
- Connection/Terminal Material Tin-Plated Brass
- Product Diameter 2 in
- Mounting Direct Mount
- Sell Pack Quantity 1 Each
- ROHS Compliant Yes
- Sell Pack Weight 2.63 lb
- Ampere Rating 40 A
- Product Length 9.75 in
- Indication System Yes
- Sell Pack Width 2.62 in
- AC Max I.R./Breaking Capacity: I1 65 kA
- Body/Insulating Material GMG
- Rated voltage AC UL 5500 V
- Connection/Terminal Type Female Stud To Female Tube
- Sell Pack Length 2.62 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A550C40-75 Description
A550C40-75 Mersen - Medium Voltage Capacitor Fuse 5500VAC 40A Female Stud To Female Tube Visual Indicator Amp-Trap®
Mersen capacitor fuses are designed to ANSI C37-41. They are currentlimiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor.
The various mounting configurations offer manufacturers a wide range of cost/space saving solutions and a large choice of equivalent products
*High interrupting capacity
*Current limitation
*Blown-fuse indication
*Direct mount
*Clip style mount
*Bus mount
*Non-venting for silent operation
*Capacitor Protection
*Power Factor Correction Equipment
*Harmonic Filtering Equipment
*Induction Heating System
*High Power Drive
*Welders
Related documents A550C40-75 Specs
