A4J30 Mersen Fuses
Part#:A4J30
Manufacturer:Mersen
Alt. Part#:782001960186
Product Lifecycle:Active
In-stock parts: 25
Jun 19, 2025

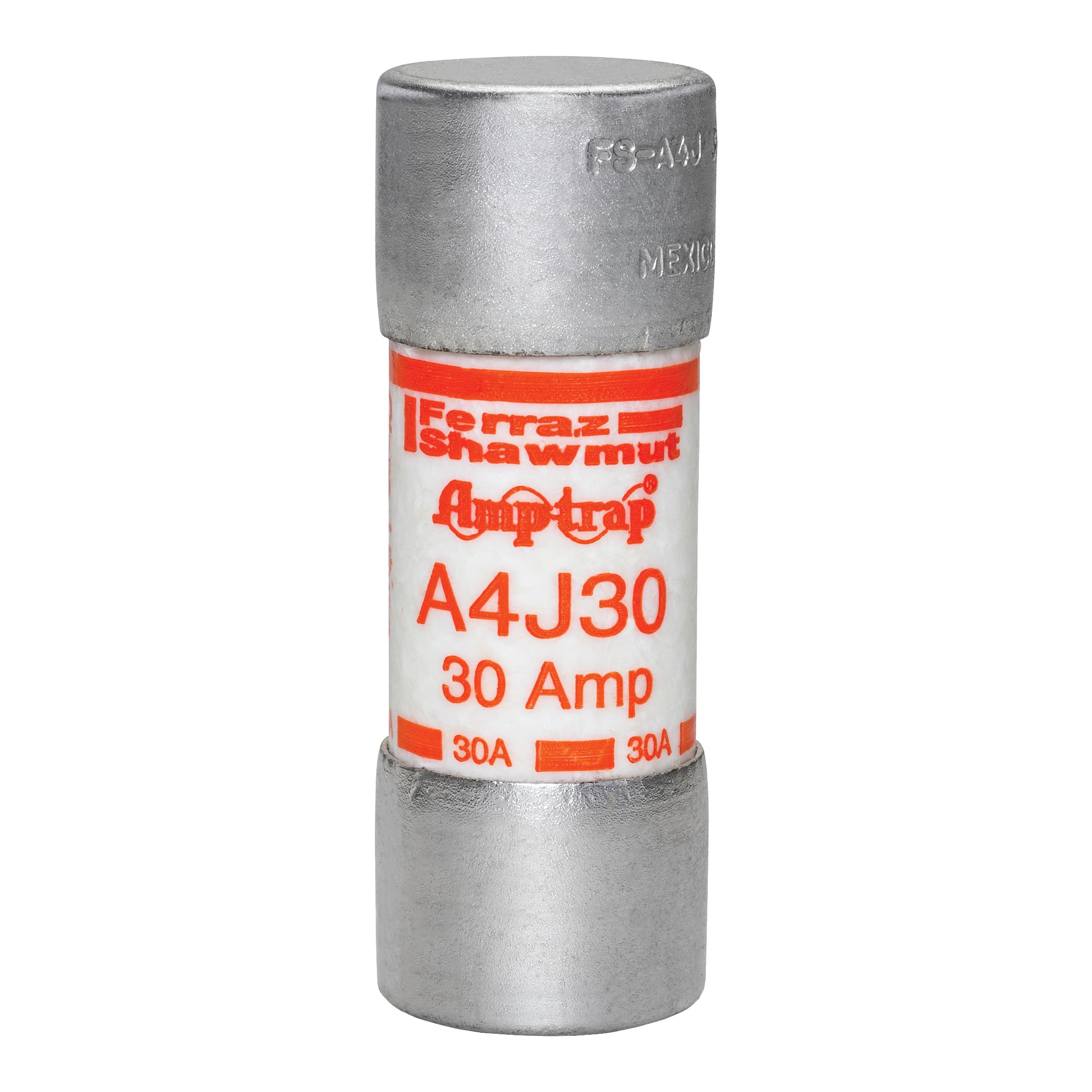

A4J30 Mersen - Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 30A Ferrule Amp-Trap®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A4J30 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating30 A
- Voltage600 VAC / 300 VDC
- Trip ClassFast-Acting
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass J
- Terminal TypeFerrule
- UL CertificationYES
- MaterialPolyTube
- Weight43.9895 g
- Approvals*UL listed to standard 248-8 File E2137 *CSA certified to standard C22.2 no. 248.8 *DC listed to UL 248 *IEC 269-2-1
- Connection/Terminal Material Tin-Plated Copper
- Product Diameter 0.81 in
- Sell Pack Width 2.38 in
- Ampere Rating 30 A
- AC Max I.R./Breaking Capacity: I1 200 kA
- Product Length 2.25 in
- Sell Pack Height 1.69 in
- Body/Insulating Material PolyTube
- Product Weight 0.12 lb
- Sell Pack Length 4.25 in
- Mounting Clip
- Rated voltage AC UL 600 V
- Sell Pack Quantity 10 Each
- Rated voltage DC UL 300 V
- Speed/Characteristic Fast-Acting
- Sell Pack Weight 1.26 lb
- Fuse Class Class J
- Connection/Terminal Type Ferrule
- ROHS Compliant Yes
- Shipping Height: 1.00 In.
- UPC: 78200196018
- Shipping Weight: 0.10 lbs.
- Shipping Width: 1.00 In.
- Shipping Length: 2.00 In.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A4J30 Description
A4J30 Mersen - Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 30A Ferrule Amp-Trap®
