A3T250 Mersen Fuses
Part#:A3T250
Manufacturer:Mersen
Alt. Part#:782001890254
Product Lifecycle:Active
Get a quick Quote!

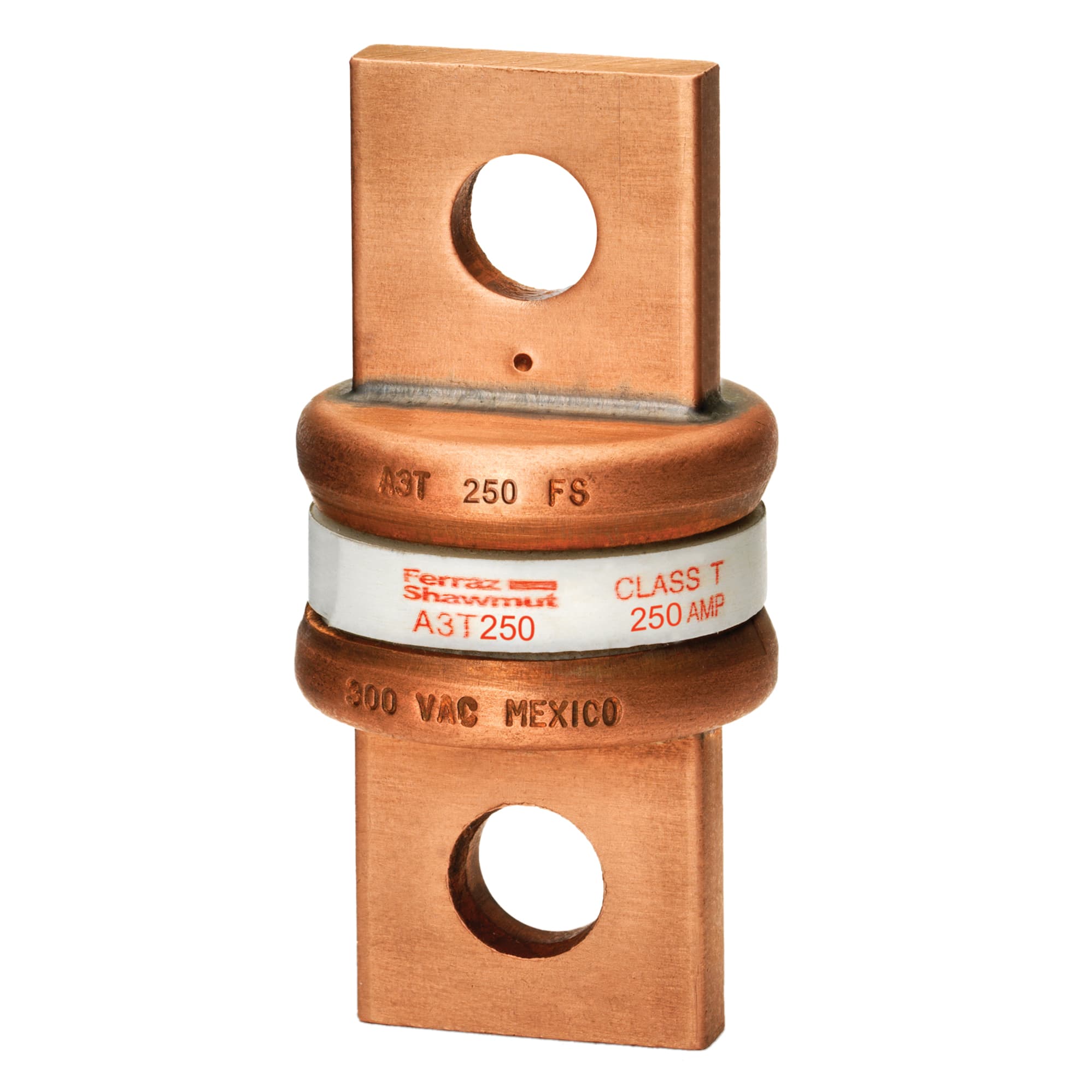

A3T250 Mersen - Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 250A Blade Amp-Trap®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A3T250 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating250 A
- Voltage300 VAC / 160 VDC
- Trip ClassFast-Acting
- TypeLow Voltage UL/CSA Fuses
- Fuse ClassClass T
- Terminal TypeBlade
- UL CertificationYES
- MaterialGMG
- Weight123.352 g
- Approvals*UL listed to standard 248-15 File E2137 *CSA certified to standard C22.2 no. 248.15 *DC listed to UL standard 248
- Connection/Terminal Material Copper
- Product Diameter 1.33 in
- Sell Pack Width 1.38 in
- Ampere Rating 250 A
- Sell Pack Quantity 1 Each
- Rated voltage AC UL 300 V
- Product Weight 0.29 lb
- Sell Pack Height 2.88 in
- Speed/Characteristic Fast-Acting
- Product Length 2.75 in
- Rated voltage DC UL 160 V
- Sell Pack Weight 0.3 lb
- Mounting Bolted
- Fuse Class Class T
- Sell Pack Length 1.38 in
- AC Max I.R./Breaking Capacity: I1 200 kA
- Body/Insulating Material GMG
- ROHS Compliant Yes
- Connection/Terminal Type Blade
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A3T250 Description
A3T250 Mersen - Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 250A Blade Amp-Trap®
