A300725 Mersen Fuses
Part#:A300725
Manufacturer:Mersen
Alt. Part#:3605340332704
Product Lifecycle:Active
Get a quick Quote!

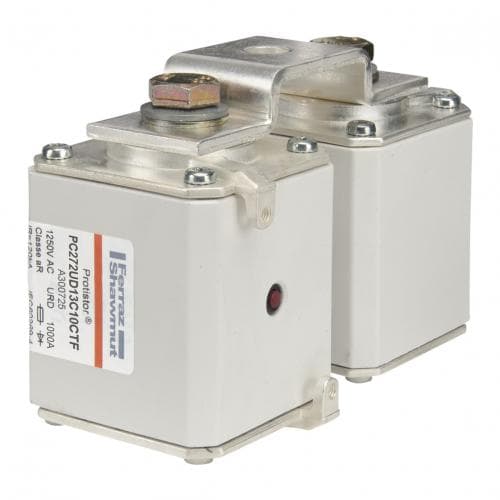

A300725 Mersen - Square Body High-Speed Fuse Protistor® Size 2x72 aR 1250VAC IEC 1000A With Striker Flush ends metric threads With Omega connection
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A300725 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating1000 A
- Trip ClassHigh Speed
- Fuse ClassSemiconductor
- Terminal TypeEnd Contact with Threaded Holes
- Weight1699.322 g
- Country Of OriginFR
- Melting I2t 228 kA²s
- Body/Insulating Material Ceramic
- Sell Pack Weight 3.743 lb
- Ampere Rating 1000 A
- Power Dissipation at Rated Current Value 197 W
- Product Length 3.58 in
- AC Max I.R./Breaking Capacity: I1 100 kA
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Height 3.74 in
- Mounting Bolted
- Catalogue No. PC272UD13C10CTF
- Product Width 5.45 in
- Clearing I2t At Rated Voltage 1850 kA²s
- Indication System Yes
- Sell Pack Quantity 1 EACH
- Rated voltage AC IEC 1250 V
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Width 3.54 in
- Fuse Size 2x72
- Product Weight 3.743 lb
- Sell Pack Length 8.07 in
- Speed/Characteristic aR
- Indication System Type Striker
- Product Height 2.58 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A300725 Description
A300725 Mersen - Square Body High-Speed Fuse Protistor® Size 2x72 aR 1250VAC IEC 1000A With Striker Flush ends metric threads With Omega connection
Product type: Semiconductor Protection Fuses
The 1250V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
Related documents A300725 Specs
