A1069109 Mersen Fuses
Part#:A1069109
Manufacturer:Mersen
Alt. Part#:3605340612851
Product Lifecycle:Active
Get a quick Quote!

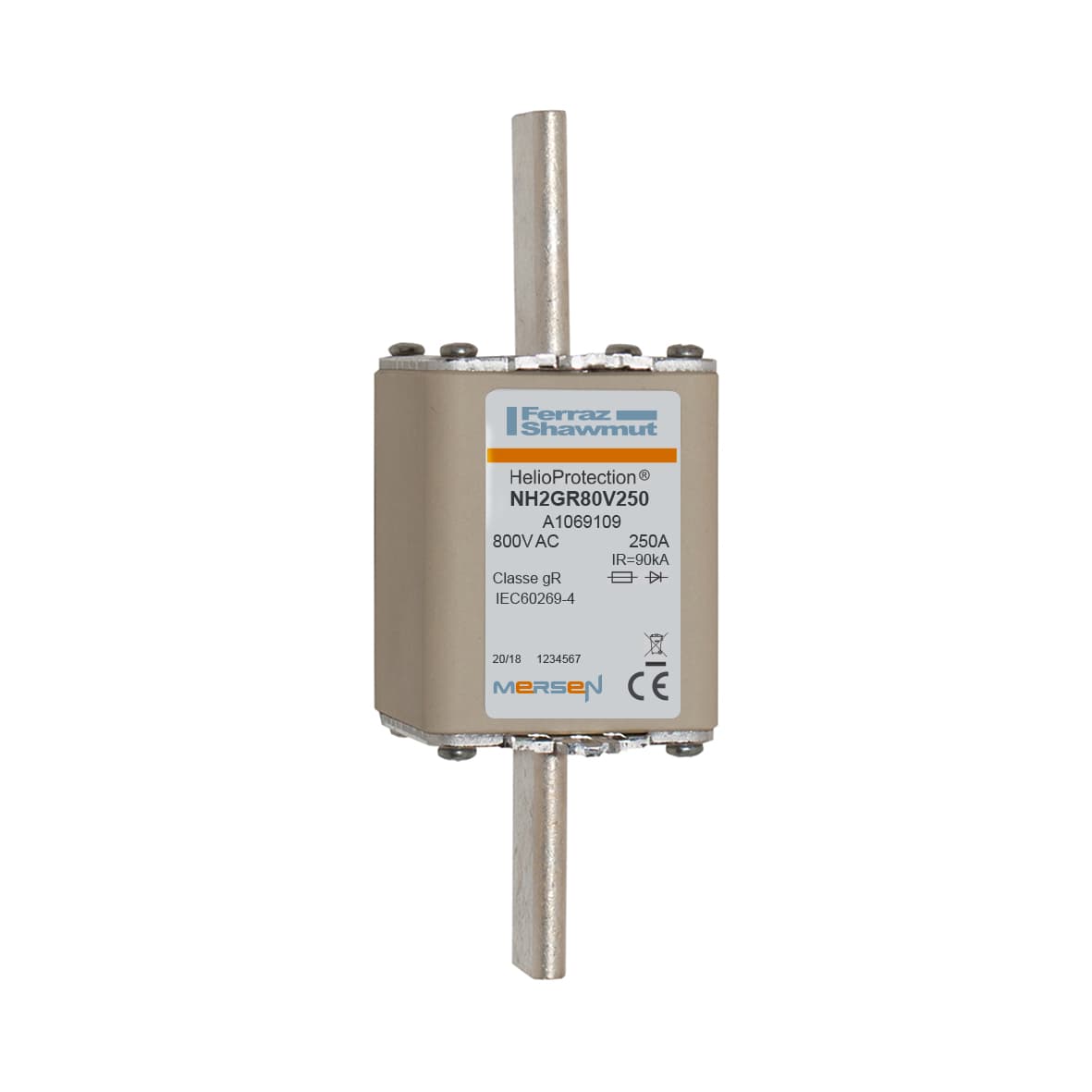

A1069109 Mersen Photovoltaic fuse gR 800VAC IEC Size NH2 250A With Plain Blades For Clip
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A1069109 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating250 A
- TypePhotovoltaic Fuses
- Fuse ClassSpecial Purpose Fuses
- Terminal TypePlain Blades
- UL CertificationYES
- Weight1.543 lb
- Country Of OriginTN
- Mounting Clip
- Product Width 2.01 in
- Speed/Characteristic gR
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Weight 4.63 lb
- Power Dissipation at Rated Current Value 31 W
- Product Height 2.83 in
- Fuse Size NH2
- Sell Pack Length 6.3 in
- Ampere Rating 250 A
- Sell Pack Quantity 3 Each
- Catalogue No. NH2GR80V250
- Product Weight 1.543 lb
- Sell Pack Width 6.69 in
- Rated voltage AC IEC 800 V
- Connection/Terminal Type Plain Blades
- Sell Pack Height 3.15 in
- ROHS Compliant Yes
- Power Dissipation at Intermediate Current Value 12.9W @ 0.7 In W
- Product Length 5.91 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
A1069109 Description
A1069109 Mersen Photovoltaic fuse gR 800VAC IEC Size NH2 250A With Plain Blades For Clip
Mersen NH fuse-links 800VAC was engineered and designed
specifically for photovotaic systems. gR types are full range breaking
capacity fuse-links and are used to protect cables and equipment.
They can interrupt any fault current, from overloads up to their
breaking capacity, and so can be used alone as protection. They are
the perfect solution of protection when used with DC/800VAC Solar
inverters.
This fuse range is offered along with Mersen 800VAC
Fuse-switch-disconnectors, for a complete fuse-system protection.
*Low fault current interrupting capability
*Temperature cycle withstand capability
*Durable construction for enhanced
system longevity
*High efficiency with low power
losses
*Available in two versions: Plain
Blade & Direct Mounting
*General purpose cable and line
protection at 800VAC
*Solar installation AC combiner box
Related documents A1069109 Specs
