A1032953 Mersen Fuses

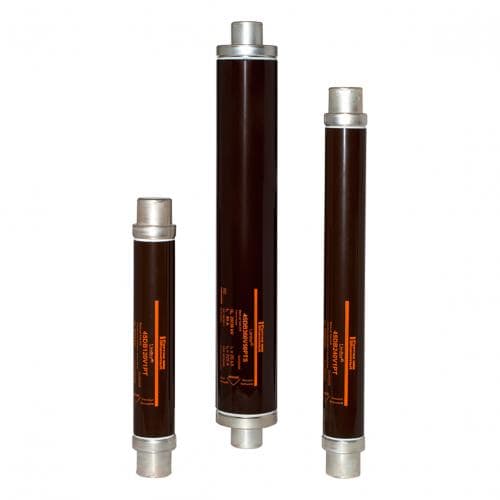

Mersen A1032953 A1032953 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 24kVAC IEC 16A d56mm, L442mm With Thermal Striker 80N Low power losses
Mersen

Part#:A1032953

Manufacturer:Mersen

Alt. Part#:3605340537697

Product Lifecycle:Active

Get a quick Quote!

A1032953 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 24kVAC IEC 16A d56mm, L442mm With Thermal Striker 80N Low power losses

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the A1032953 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating16 A
  • Voltage24 kV AC
  • Fuse ClassHigh Voltage IEC Fuses
  • Terminal TypeCylindrical
  • Weight5.071 lb
  • Country Of OriginHU
  • AC Max I.R./Breaking Capacity: I1
    65 kA
  • Power Dissipation at Rated Current Value
    42 W
  • Sell Pack Width
    4.33 in
  • Clearing I2t At Rated Voltage
    2340 A²s
  • Connection/Terminal Material
    Silver-Plated Copper
  • Sell Pack Length
    21.65 in
  • Fuse Size
    d=56mm, L=442mm
  • Indication System
    Yes
  • Product Weight
    5.071 lb
  • Product Diameter
    2.2 in
  • Rated voltage AC IEC
    24 kV
  • Catalogue No.
    45DB240V16PTS
  • Body/Insulating Material
    Ceramic
  • Product Length
    20 in
  • Mounting
    Clip
  • Indication System Type
    Striker
  • Sell Pack Quantity
    1 EACH
  • Sell Pack Height
    3.94 in
  • Ampere Rating
    16 A
  • Min Interrupting Rating (MBC)
    73 A
  • Connection/Terminal Type
    Cylindrical
  • Sell Pack Weight
    5.071 lb

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

A1032953 Description

A1032953 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 24kVAC IEC 16A d56mm, L442mm With Thermal Striker 80N Low power losses

Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.

For the Limitor®-PTS range, Mersen innovates with new fuse-element designs to reduce power losses and new thermal striker to prevent overheating in the fuse compartment of the switch gear.

Mersen uses the best materials : fuse-elements are in pure silver, caps are in copper coated with silver and body is in ceramic.

Limitor®-PTS HV fuse-links are dedicated to protect transformers in combination with air or gas insulated switchgear against the thermal and dynamic effects of short-circuits.

Siemens and Ormazabal recommend Limitor®-PTS HV fuses to be used in their gas-insulated switchgear.

Low switching voltage

*Large current ratings range

*Very low power losses

*Energy efficency

*New thermal striker patented by Mersen to prevent overheating

*Medium striker 80N / 30mm

*New cap design for a better compatibility with all types of clips and easier assembly

*Outdoor and indoor use

*Coordination with IEC 60787, IEC 62271-105 and VDE 0670 T303

Best used in SF6 insulated switch gear and compact switch gear

*HV Transformer protection

Related documents A1032953 Specs

A1032953 DS-Limitor-PTS-back-up-fuse-links-with-low-power-dissipation-and-thermal-striker-EN (EN,PDF,1933Ko).pdf
