A1023063 Mersen Electronic Components
Part#:A1023063
Manufacturer:Mersen
Alt. Part#:9008567001158
Product Lifecycle:Active
Get a quick Quote!

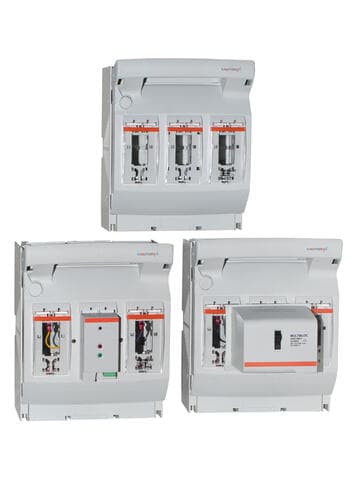

MULTIBLOC 2.RST8 size 2 / 400A, 3-pole main incommer
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A1023063 Mersen price in the box on the right side or send a quick quote.
Product Details
- Rated voltage DC IEC 440 V
- Degree of Pollution 3
- Rated SC Withstand 13 kA / 1 s
- Max Power dissipation of Fuse Links Pn 34 W
- Product Width 8.05 in
- Number of Poles 3-Pole
- Conventional Free Air thermal Current - Solid Links 530 A
- Product Weight 12.655 lb
- Sell Pack Weight 12.655 lb
- ROHS Compliant Yes
- Rated voltage AC IEC 690 V
- Rated Impulse Withstand Voltage 12 kV
- Rated short circuit making capacity with solid links Icm 10.6 kA
- Sell Pack Width 8.27 in
- Power Dissipation by Ith without Fuse-Links 60 W
- Fuse Size 2
- Product Height 15.41 in
- Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 400 A / 80kA@Ue = AC 500 V; Ie = 400 A / 80kA@Ue = AC 690 V; Ie = 315 A
- Rated Duty uninterrupted duty
- Ampere Rating 400 A
- Installation Mounting Bus bar system 40 mm
- Catalogue No. 1.001.028
- Switchability Triple pole switching
- Frequency 50...60 Hz
- Rated Insulation Voltage 1000 V
- Design Details main incomer
- Comments Cable termination components : 6 M10 terminal screws
- Sell Pack Quantity 1 EACH
- Conventional Free Air thermal Current With Fuse-Links Ith 400 A
- Max Power dissipation of Solid Links Pn 9 W
- Sell Pack Length 14.37 in
- Utilization Category AC21B @ Ue = AC 690 V; Ie = 315 A
- Product Length 6.18 in
- Sell Pack Height 6.89 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents A1023063 Specs
1-year warranty
