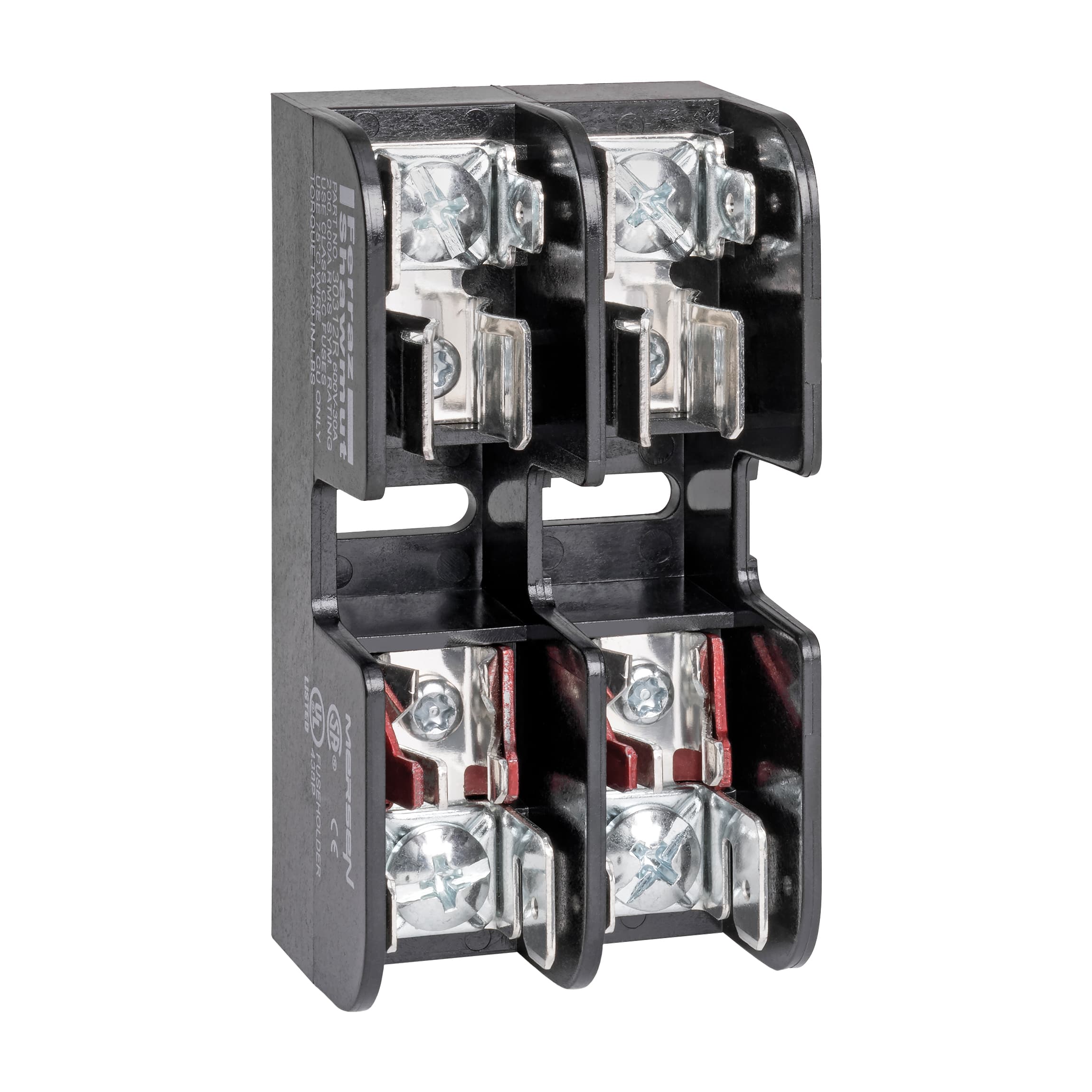

30312R Mersen Fuse Holders

Mersen 30312R 30312R Mersen - Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip

Part#:30312R

Manufacturer:Mersen

Alt. Part#:782001759483

Product Lifecycle:Active

In-stock parts: 8

Jun 19, 2025

30312R Mersen - Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the 30312R Mersen price in the box on the right side or send a quick quote.

Product Details

Number of Poles2 Pole
Current Rating30 A
Voltage600 VAC
Weight104.42 g
Fuse Type/Class
Class CC
Installation Mounting
Screw Mount or DIN Rail
Rated voltage DC UL
600 V
Product Length
3.04 in
Ampere Rating
30 A
Max Fuse Rating
30 A
Sell Pack Weight
1.21 lb
ROHS Compliant
Yes
Product Width
0.85 in
Fuse Class
Class CC
Body/Insulating Material
GFPC
Sell Pack Width
3.12 in
Number of Poles
2-pole
Rated voltage AC UL
600 V
Product Weight
0.23 lb
Sell Pack Quantity
5 Each

Sell Pack Height

2.12 in

Short Circuit Current Rating (SCCR)

200

Sell Pack Length

7 in

Fuse Installation Method

Clip-in

Product Height

1.31 in

Amps:

32 A

Fuse Type:

Class CC

Series:

303

Fuse Voltage Rating:

600 Volt AC/DC

Approval:

UL 4248

Shipping Height:

2.00 In.

Terminal Type:

Screw with Double Quick Connect

Shipping Length:

3.00 In.

Wire Size:

14 to 10 AWG (Copper)

Shipping Weight:

0.20 lbs.

Fuse Current Rating:

30 Amp

Type:

Open Style

Body Material:

Glass Filled Polycarbonate

Shipping Width:

2.00 In.

Clip Type:

Tin Plated Copper Alloy

UPC:

782001759483

Poles:

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

30312R Description

30312R Mersen - Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip | Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy. | Features: | Application:
