PG2456 ifm Electronic Electronic Components
Part#:PG2456
Manufacturer:ifm Electronic
Product Lifecycle:Active
Get a quick Quote!

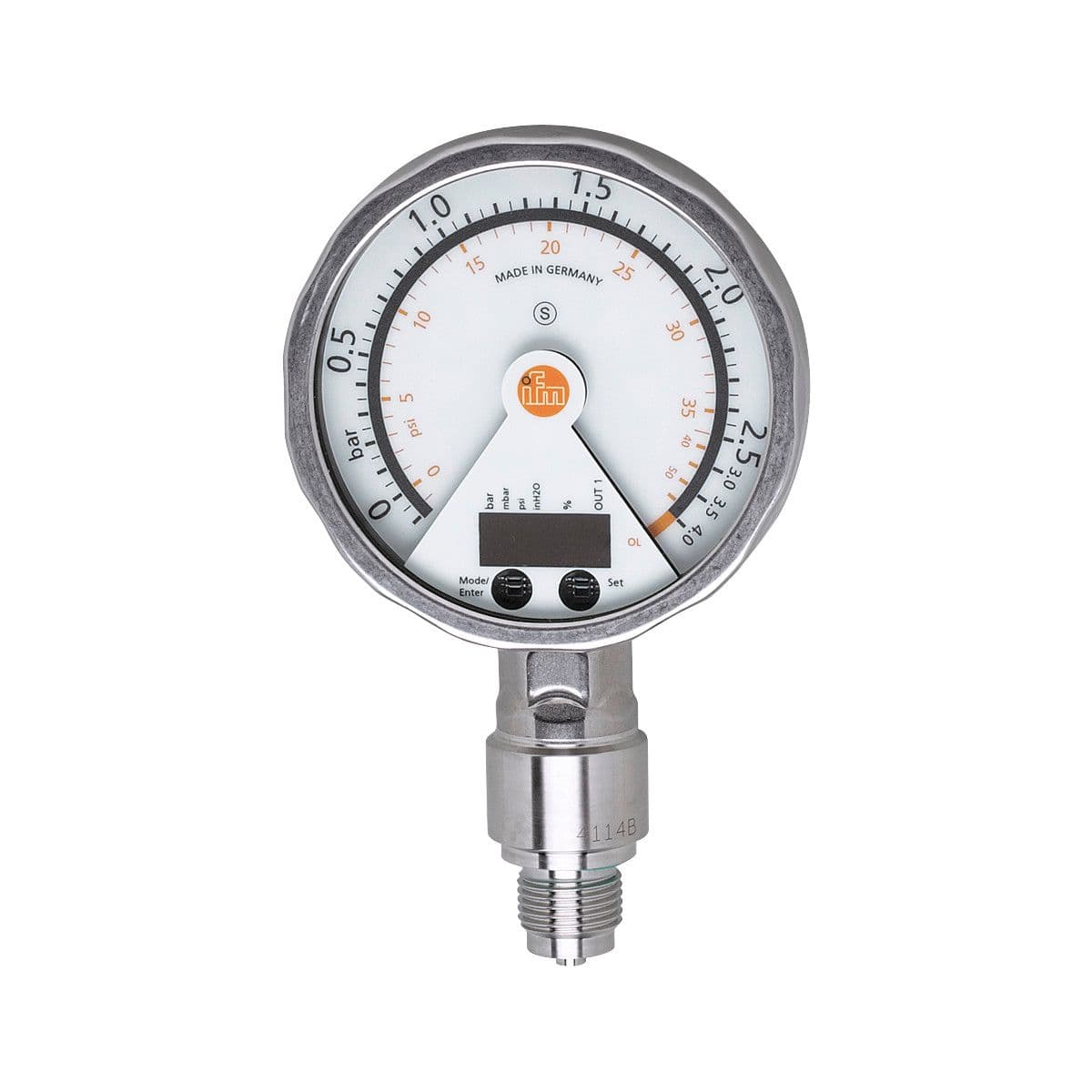

Pressure sensor with analog display, analog display, pressure switch and transmitter in one unit, Output signal: switching signal; analog signal; (configurable), Measuring range: -0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi, Process connection: thre
About the manufacturer: ifm Electronic is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Through years of working closely with our customers, we have established ourselves as experts in sensor technology, dedicated to delivering outstanding service. Currently, our company operates in more than 85 countries and employs a team of over 7,000 individuals. Despite our expansion, our dedication to customer satisfaction remains unwavering.
Check out the PG2456 ifm Electronic price in the box on the right side or send a quick quote.
Product Details
- Max. voltage drop switching output DC [V] 2
- Short-circuit protection yes
- Media liquids and gases
- Operating voltage [V] 18...32 DC
- Measuring range -0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Number of digital outputs 1
- Overload protection yes
- Integrated watchdog yes
- Output signal switching signal; analog signal; (configurable)
- Permanent current rating of switching output DC [mA] 250
- Power-on delay time [s] 6
- Switching frequency DC [Hz] 75
- System gold-plated contacts
- Protection class III
- Electrical design PNP/NPN
- Max. load [Ω] (Ub - 10 V) / 20 mA
- Min. bursting pressure 50 bar 725 psi
- Current consumption [mA] < 70; (24 V)
- Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
- Number of analog outputs 1
- Medium temperature [°C] -25...80
- Reverse polarity protection yes
- Output function normally open / closed; (configurable)
- Application for industrial applications
- Type of pressure relative pressure
- Total number of outputs 2
- Type of short-circuit protection yes (non-latching)
- Process connection threaded connection G 1/2 external thread
- Pressure rating 20 bar 290 psi
- Analog current output [mA] 4...20, invertible; (scalable)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
